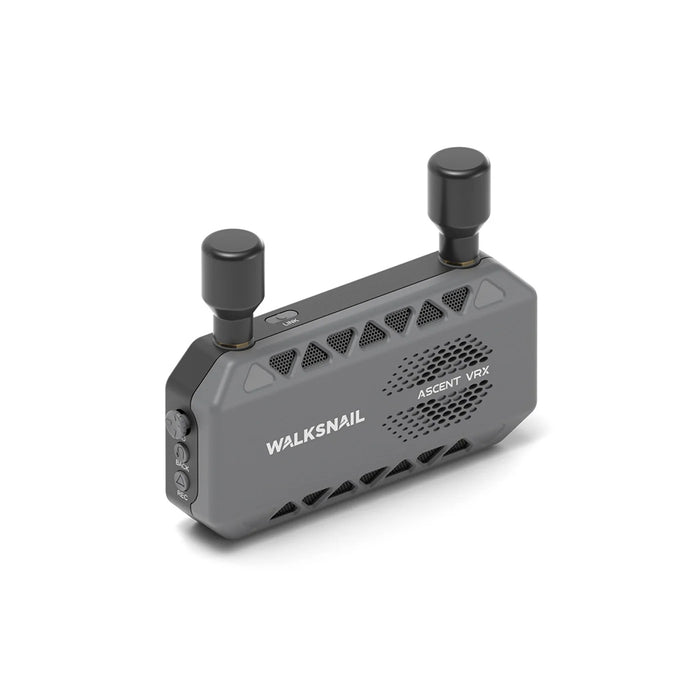

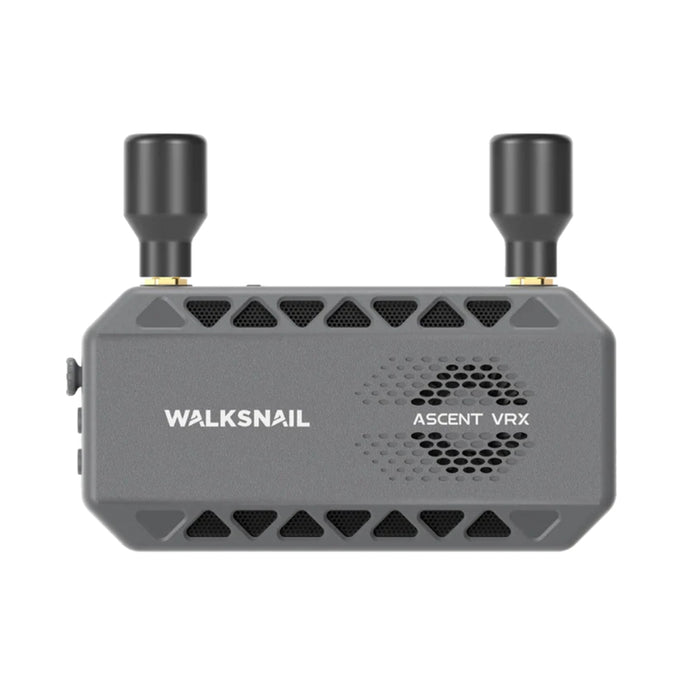

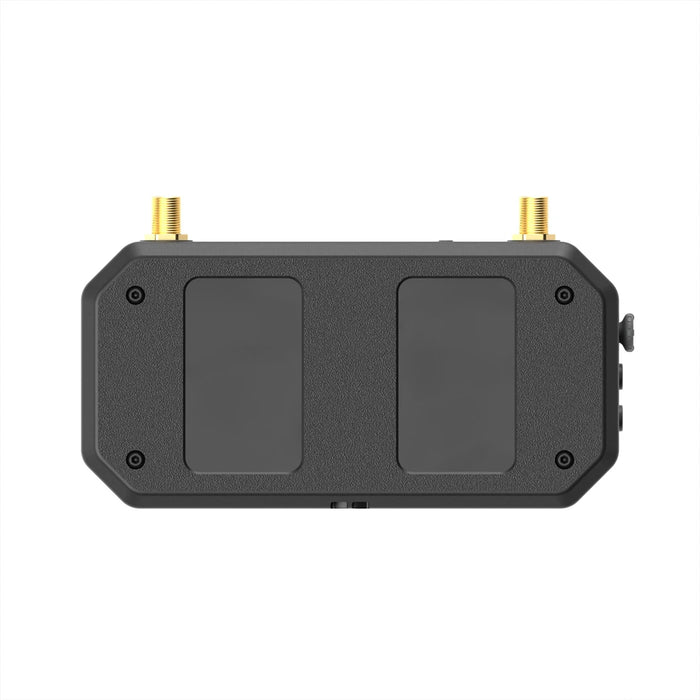

The Walksnail Ascent FPV VRX is a compact, ultra-portable digital HD video receiver that brings high-definition low-latency video to any FPV goggles, monitor, or display equipped with an HDMI port. Featuring high-frame-rate decoding up to 1080P/60fps and 720P/120fps with latency as low as 35ms, this standalone receiver unit provides crisp, lag-free video feed with up to 6km of reliable range. Designed with dual circular polarized antennas, adaptive frequency hopping, and full Canvas Mode OSD integration, it offers a seamless digital FPV upgrade solution for pilots seeking performance and maximum display compatibility.
Don't forget to check out the rest of our Digital Video Transmitters and Walksnail Products!!
Dual Antennas, Rock-Solid Connection
Signal drops are a thing of the past. Equipped with Dual Circular Polarized Antennas (≥97% efficiency), the Ascent VRX delivers a stable, unwavering link up to 6km away. Fly further, fly bolder, fly worry-free.
Multi-Platform Application
The ultimate FPV powerhouse for Drones, Fixed-wings, and RC cars. Whether you're racing for the podium, filming a cinematic masterpiece, or teaching the next generation, the Ascent VRX dominates every scene.
Features:
-
High-definition video decoding supporting 1080P at 60fps and 720P at 120fps with ultra-low 35ms latency.
-

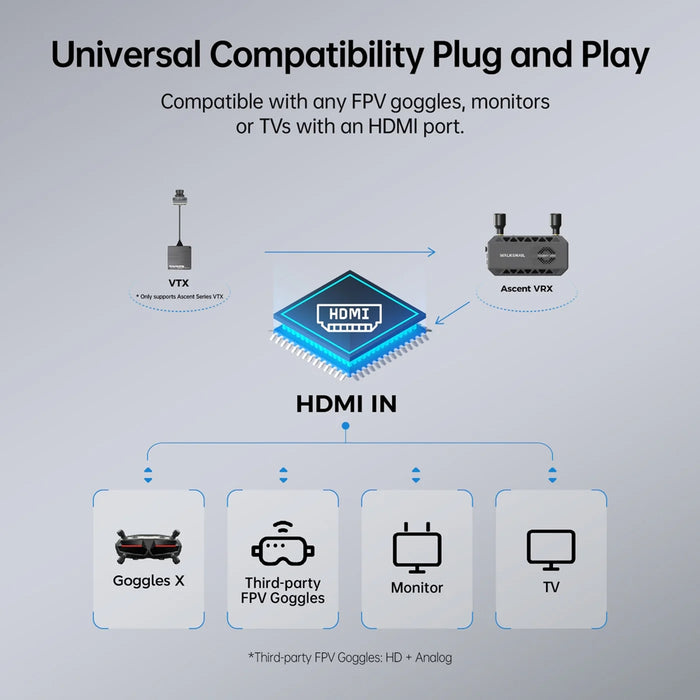

Universal HDMI video output allows instant plug-and-play connection to any FPV goggles, external screens, or TVs.
-

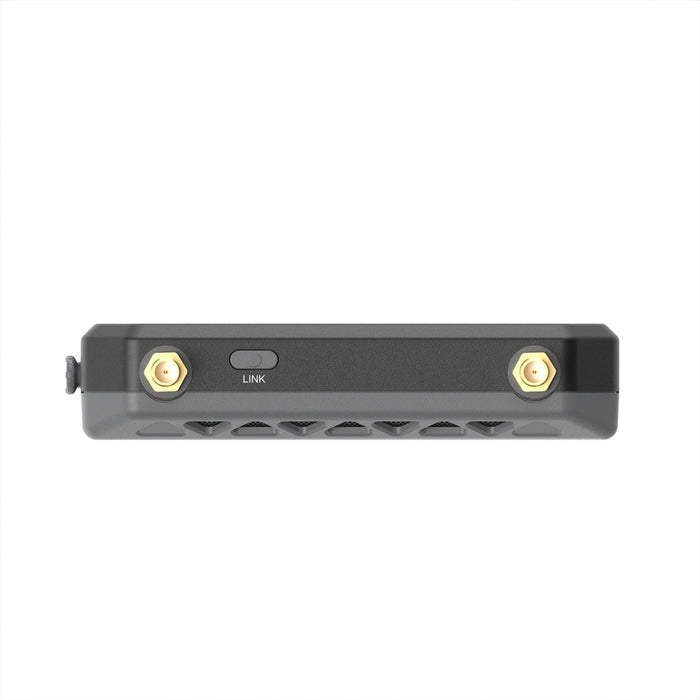

Dual circularly polarized antennas deliver rock-solid link stability and transmission distances of up to 6 km.
-

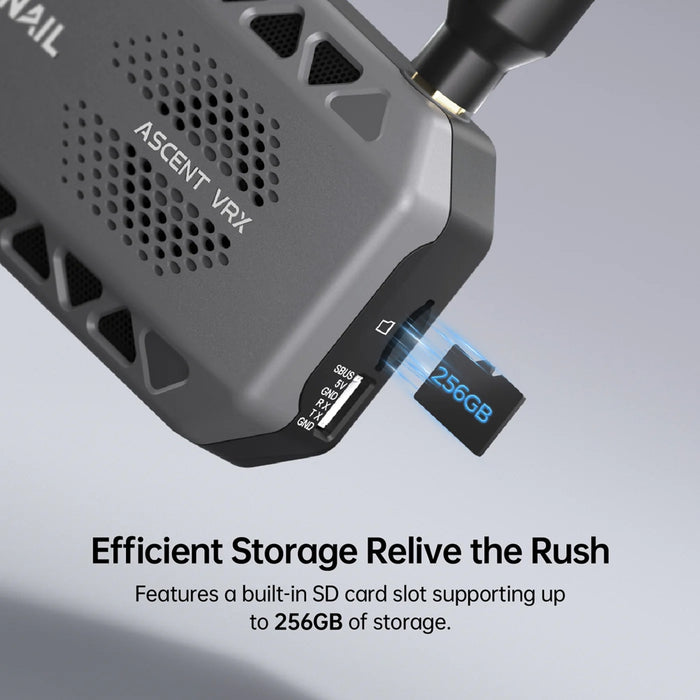

Built-in MicroSD card slot supporting up to 256GB for effortless one-click HD flight recording.
-
Supports Canvas Mode OSD setup for full real-time telemetry and parameter control via Betaflight and INAV.
-
Adaptive frequency hopping automatically detects and switches to low-interference channels.
-
Wide operating input voltage range of 7.4V to 25.2V for multi-cell power source compatibility.
-
Lightweight, pocket-sized form factor weighing only 118 grams for easy transport and field use.
Specifications:
-
Model Name: Walksnail Ascent FPV VRX
-
SKU: WN02-FP018
-
Communication Frequency: 5.725 GHz – 5.829 GHz
-
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
-
Supported Video Output Resolutions: 1080p @ 50fps / 60fps, 720p @ 50fps / 60fps / 100fps / 120fps
-
End-to-End Latency: As low as 35ms
-
Max Transmission Range: Up to 6 km
-

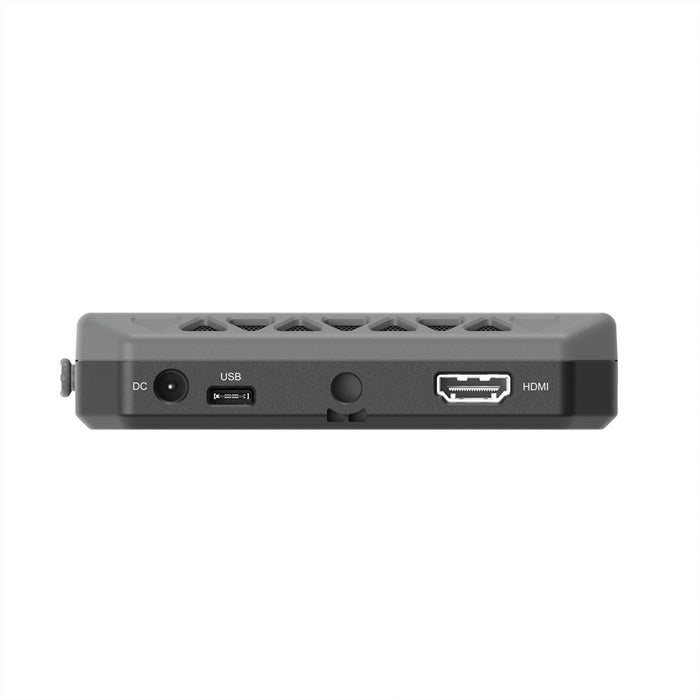

I/O Interfaces: HDMI Out, MicroSD Card Slot, DC 5.5 x 2.1 mm Power Port, SH1.0 6-Pin Port, USB Type-C
-
Storage Support: MicroSD Card up to 256GB
-
Input Voltage: 7.4V – 25.2V (2S to 6S LiPo)
-
Channel Bandwidth: 5 MHz / 10 MHz / 20 MHz
-
Weight: 118 g (excluding antennas)
Package Includes:
-
1 x Walksnail Ascent FPV VRX Module
-
2 x Circular Polarized Antennas
-
1 x DC Power Cable
-
1 x HDMI Cable
-
1 x 3M Double-Sided Adhesive Pad
