This USB Type-C to XT60 Power Module allows you to power XT60-equipped devices directly from USB-C PD power sources. Supporting a wide range of fast charging protocols including PD3.1, PD3.0, QC, AFC, and FCP, it can negotiate higher voltages and deliver up to 28V depending on the power source. Output voltage can be easily configured via onboard DIP switches, with selectable levels from 5V up to 28V. The module automatically detects the available protocol and will step down to the maximum supported voltage of the connected power supply, ensuring compatibility across a wide range of USB-C sources.

Check out the rest of our connectors and charge leads!

Features

• Support for the latest PD3.1 protocol, delivering up to 140W (28V 5A).

• Wide protocol compatibility including PD3.0/2.0, QC2.0/3.0, AFC, and FCP.

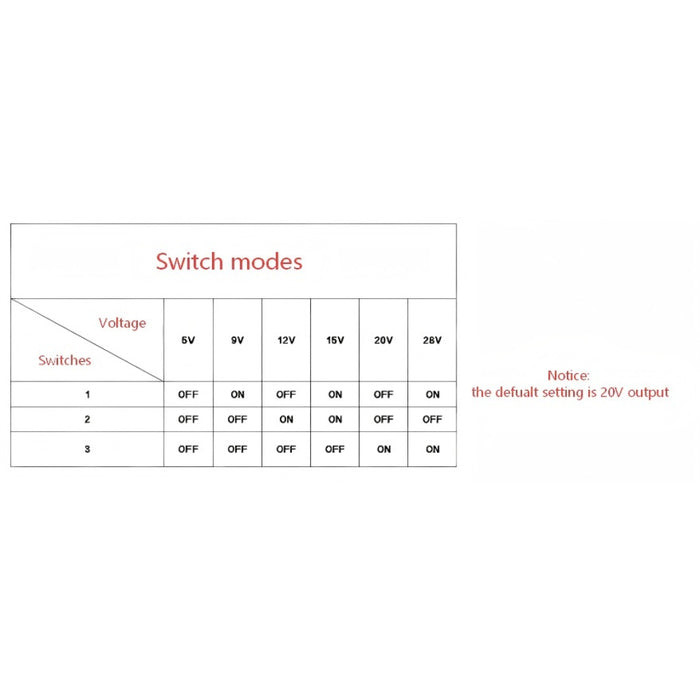

• Onboard 3-position DIP switches for manual voltage selection.

• Automatic voltage fallback: Steps down to the maximum supported voltage of the power source if the selected voltage is unavailable.

• Compact and lightweight design for portable field kits or bench testing.

Specifications

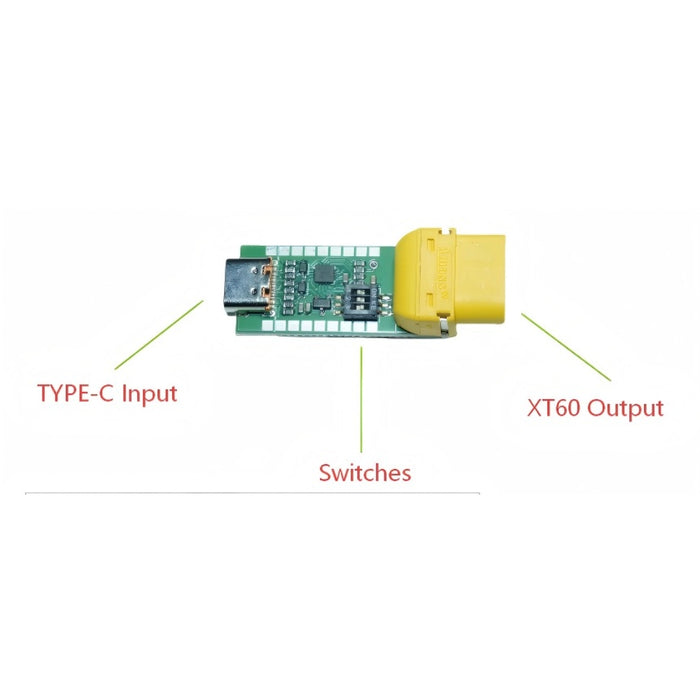

• Input: USB Type-C

• Output: XT60 Female

• Supported Protocols: PD3.1, PD3.0, PD2.0, QC2.0, QC3.0, AFC, FCP

• Output Voltage: 5V / 9V / 12V / 15V / 20V / 28V

• Default Output Voltage: 20V

• Maximum Output Power: Up to 140W (28V 5A, source dependent)

• Voltage Selection: Onboard DIP switches (3-position)


Compatibility

• Compatible with USB-C PD power banks, wall adapters, and GaN chargers.

• Designed for RC battery chargers (e.g., ToolkitRC, ISDT, Hota), portable soldering irons, and field-repair equipment.

• Works with devices requiring an XT60 power input within the 5V-28V range.

Package Includes

• 1 x USB Type-C to XT60 Power Module (Adjustable 5-28V)
