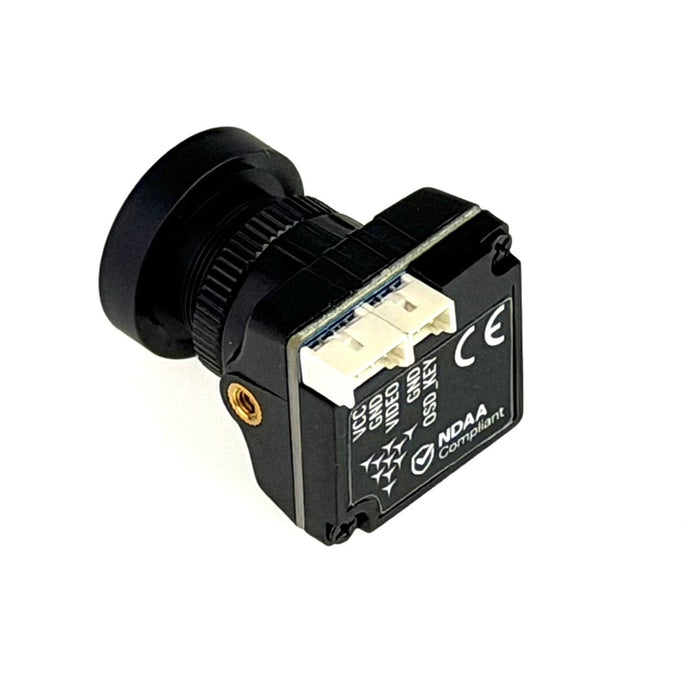

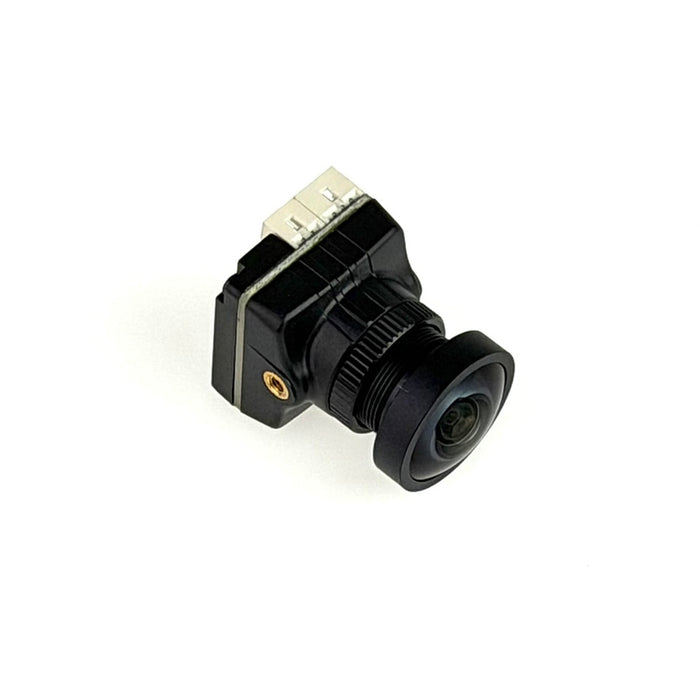

The Triumph Vanguard NDAA Analog FPV Camera is an ultra-high-sensitivity micro camera designed for daytime, low-light, and night sUAS operations. Manufactured by Triumph Manufacturing Corporation, this 19x19mm micro-sized camera incorporates a 1/2.8" 2MP back-illuminated sensor with starlight night vision capabilities, delivering crisp, high-contrast video feeds in dark, shadowy environments like abandoned structures, dense canopy, or twilight flights.
Engineered for defense contractors, government sUAS programs, and tactical operators requiring compliant hardware, the Vanguard is fully NDAA Compliant. It features a switchable 16:9 / 4:3 aspect ratio, NTSC/PAL video signal compatibility, and an interchangeable M12 lens system. Housed in a durable 8.5-gram ABS chassis with standard M2 mounting points, it operates across a wide 5V–28V DC power input range, offering seamless integration into standard FPV frames and military drone platforms.
Check out all our FPV Cameras and the rest of our TBS products!
Features
-
Sensor: Features a high-performance 1/2.8" 2MP back-illuminated image sensor.
-
Low-Light Capabilities: Equipped with starlight night vision, allowing for high-contrast video feeds in dark or shadowed conditions (such as dense canopy, abandoned buildings, or twilight operations).
-
Resolution & Form Factor: Delivers a 1000TVL analog video resolution packed into a standard 19x19mm micro-sized form factor.
-
Optics: Built with an interchangeable M12 lens system.
-
Video Layout: Supports both NTSC and PAL signals with a switchable 16:9 or 4:3 aspect ratio.
-
Build Quality: Enclosed in a rugged, lightweight 8.5-gram ABS chassis featuring durable M2 mounting points.
- Power Constraints: Handles a versatile 5V to 28V DC power input range, letting it run directly off a variety of flight controllers or power distribution boards.
Specifications
-
Brand / Manufacturer: Triumph Manufacturing Corporation
-
Model Name: Vanguard Analog FPV Camera
-
Compliance Rating: NDAA Compliant
-
Image Sensor: 1/2.8" 2MP Back-Illuminated Sensor
-
Resolution: 1000TVL +
-
Light Sensitivity: 11,390 mV/Lux-Second (Starlight Night Vision Effect)
-
Signal-to-Noise Ratio (SNR): >50 dB
-
Field of View (FOV): 125° Diagonal / 107° Horizontal / 56° Vertical
-
Screen Aspect Ratio: 16:9 | 4:3 Switchable
-
Video Signal System: NTSC / PAL Switchable
-
Lens System: Interchangeable M12 Lens with Tuning Gear
-
Power Input Range: DC 5V – 28V
-
Current Draw: 90mA @ 12V / 250mA @ 5V
-
Integrated OSD: Yes (Joystick Control Interface)
-
Body / Casing Material: ABS Plastic
-
Mounting Pattern: Standard Micro 19 mm x 19 mm (Dual M2 Side Threading)
-
Dimensions: 19 mm (L) x 19 mm (W) x 27 mm (H)
-
Net Weight: 8.5 grams

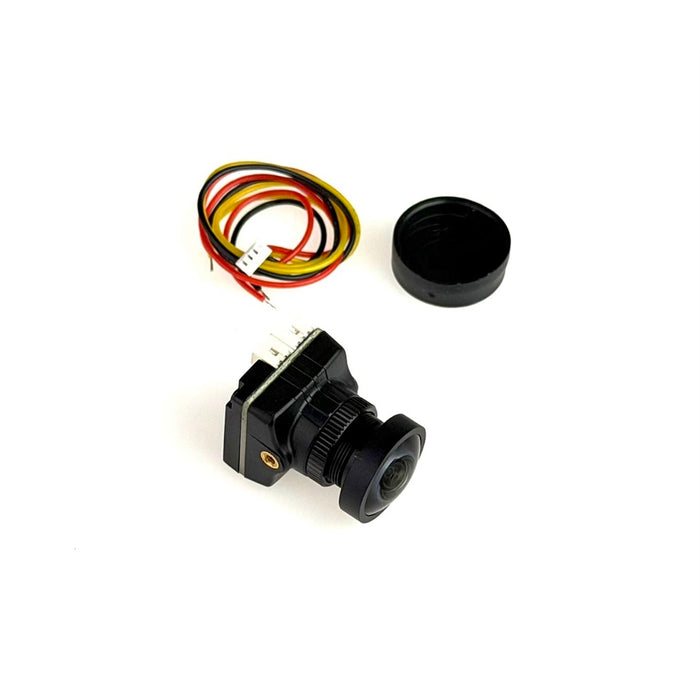

Package Includes:
- 1 x Triumph Vanguard Analog 1000TVL Starlight 19x19mm FPV Camera - NDAA
