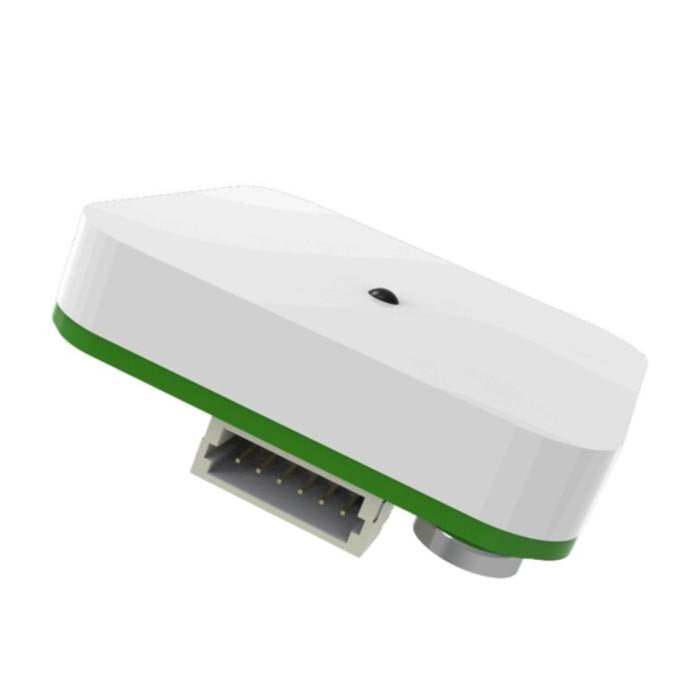

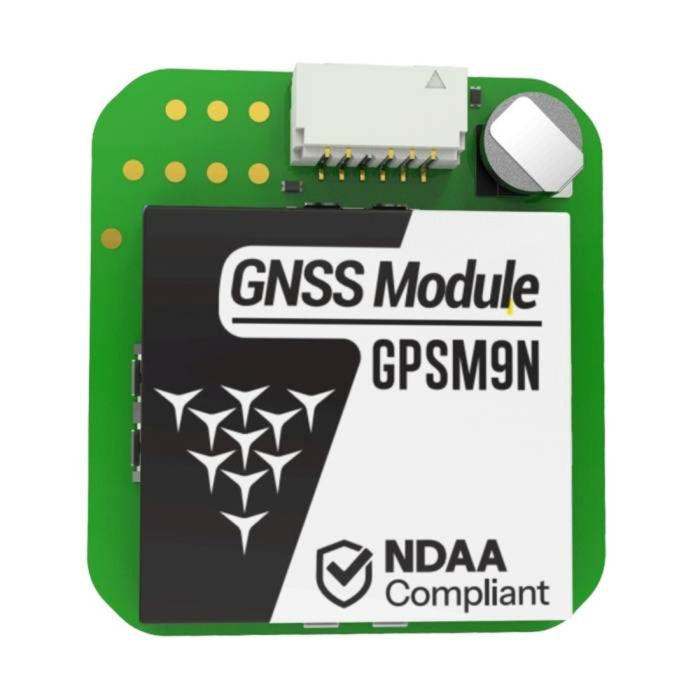

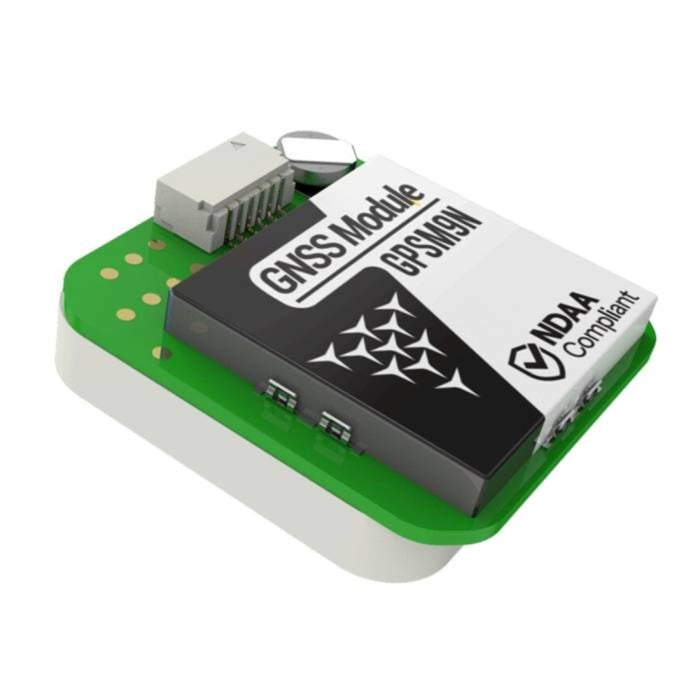

Triumph M9N GPS Module - NDAA

Triumph M9N GPS Module - NDAA

SKU P3-14659
Availability:
in stock
$65.99 - $65.99
$65.99
$65.99 - $65.99
$65.99



The Triumph M9N GPS/GNSS Module is an ultra-fast, high-precision position and navigation module designed for FPV freestyle, long-range drones, and defense UAV platforms requiring U.S. NDAA compliance. Powered by the u-blox NEO-M9N concurrent GNSS receiver engine, the Triumph M9N simultaneously tracks up to four major satellite constellations (GPS, GLONASS, Galileo, and BeiDou), delivering stable positioning and rapid lock acquisition even in deep mountain gaps or dense urban canyons.

Check out all our Receivers and the rest of our TBS collection!

Features

  • NDAA Compliant & USA Made
  • Concurrently tracks GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS constellations for multi-region satellite coverage and fast signal acquisition
  • High position update rates up to 25Hz, minimizing telemetry latency and improving flight controller rescue mode response
  • Integrated high-gain ceramic patch antenna ensures strong signal penetration through interference and structural obstruction
  • Integrated LIS3MDLTR / LIS2MDLTR magnetometer connected via I²C for accurate heading orientation
  • Wide voltage input range from 5.0V to 12.0V DC, simplifying integration with flight controllers and power distribution boards

Specifications

  • Brand/Manufacturer: Triumph Manufacturing Corporation
  • GNSS Chipset: u-blox NEO-M9N
  • Supported Constellations: GPS L1 C/A, GLONASS L1OF, BeiDou B1I, Galileo E1B/C, QZSS, SBAS
  • Update Frequency: Up to 25 Hz
  • Horizontal Positioning Accuracy: 1.5 m CEP
  • Speed Accuracy: 0.05 m/s
  • 1PPS Time Accuracy: Sub-100 ns level
  • Tracking Sensitivity: -167 dBm
  • Cold Start/Hot Start Sensitivity: -148 dBm / -159 dBm
  • Start Times:
    • Cold Start: 31–43 s
    • Aided Start: 2–5 s
    • Hot Start: 2–5 s
  • Onboard Compass: LIS3MDLTR / LIS2MDLTR via I²C
  • Operating Voltage: 5.0V – 12.0V DC Input
  • Communication Interface: UART (3.3V Logic, 4800 to 921600 bps Supported)
  • Protocols Supported: NMEA 0183, UBX, RTCM
  • Dimensions: 27mm x 25mm x 9mm
  • Net Weight: 7g
  • Operating Temperature: -40°C to +85°C

Package Includes

  • 1x Triumph M9N GPS Module - NDAA
