The perfect companion for your TBS Mojito, the Mojito Servo is custom-designed to enhance the performance of this advanced flying platform. Built to withstand the rigors of high-speed flights, it ensures your maneuvers are as aggressive and precise as you desire. Experience smooth, exhilarating control that complements the Mojito’s capabilities, allowing you to navigate the skies with confidence and finesse.
Don't forget to check out the rest of our Fixed Wing Planes.
Specification
- Operating Voltage: 4.8V-6V DC
- Standby Current: ≤20 mA
- Consumption Current* (No Load): 4.8V ≦70 mA / 6V ≦80 mA
- Stall Current: 4.8V ≦1.1 A / 6V ≦1.3 A
- Rated Torque: 4.8V ≥2.8kgf·cm / 6V ≥3.2kgf·cm
- Max. Torque*: 4.8V ≥4.5 kgf.cm / 6V ≥5.5 kgf.cm
- No Load Speed*: 4.8V ≦ 0.26sec/60° | 6V ≦ 0.24sec/60°
- Rotating Direction: CCW（500→2500us）
- Pulse Width Range:500~2500us
- Neutral Position: 1500us
- Operating Travel Angle: 90° ±10° (1000~2000 us)
- Max. Operating Travel Angle: 180°±10°（500~2500us）
- Mechanical Limit Angle: 360°
- Left & Right Travelling Angle Deviation: ≤ 6°
- Centering deviation: ≤ 1°
- Back Lash*: ≤ 1°
- Dead Band Width: ≤ 5 us
- Operating Temperature Range: -10℃～+50℃
- Storage Temperature Range: -20℃~+60℃
- Operating Humidity Range: ≤ 90%RH
- Storage Humidity Range: ≤ 90%RH
- Weight: 21± 0.5g
- Case Material: ABS
- Gear Set Material: Metal
- Reduction ratio: 1/403
- Motor Type: Core motor
- VR Parameter
- Type: Carbon-Film Potentiometer
- Angle: 330°
- Life: 1,000,000 Cycles Min
- Cable:
- Material: Ф1.08,19 芯 PVC
- Length: 115±5mm
- Horn Gear Spline: 25T/Φ5.9mm

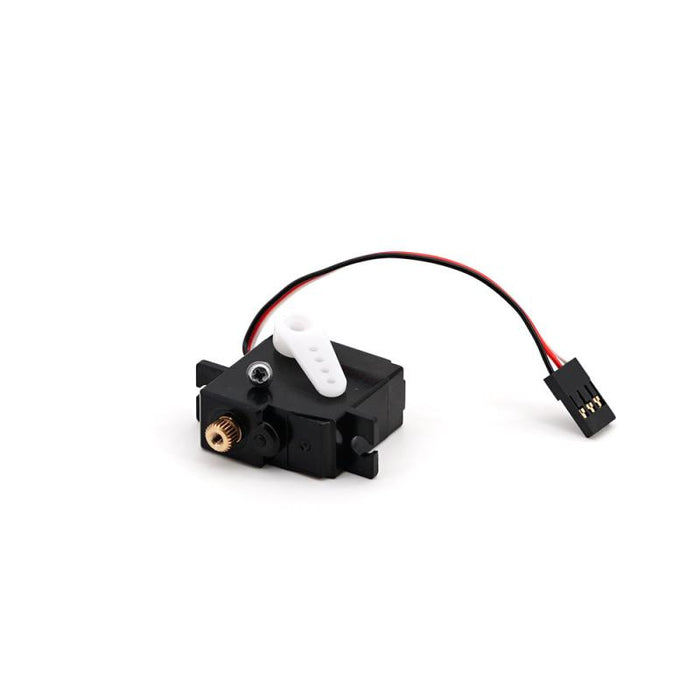

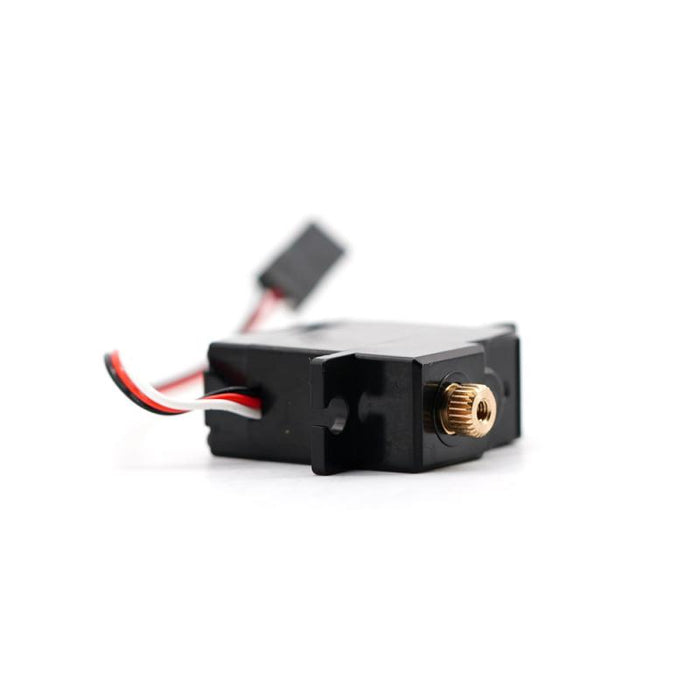

- Horn Gear Type: Please check product photos
- Rocker Arm Screw: WPMФ2.5* 5 W=5 镀镍
- Connector:
- Type: JR/3Pin/2.54mm
- Pin Assignment
- Brown: GND
- Red: Vcc
- Orange: Signal / PWM
- Communication Interface: PWM
- Signal Voltage: V (HIGH: Min,2.0V, Max.Vcc) / (LOW: Min,0.0V, Max.0.45V)
- Frame Rate: T (3.0～30ms (Default 20ms))
- Left/Center/Right: Td (2500/1500/500us)
- Amplifier Type: Digital
Package Includes:
