TBS Lucid Pro Stack 6S AT32 MPU6000 8MB Flight Controller with AM32 60A 3-6S 4in1 ESC

TBS Lucid Pro Stack 6S AT32 MPU6000 8MB Flight Controller with AM32 60A 3-6S 4in1 ESC

SKU T2-13911
Availability:
in stock
$99.95 - $99.95
$99.95
$99.95 - $99.95
$99.95


The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

At the heart of the TBS Lucid flight stack is the latest generation AT32 microprocessors, and the innovative bracket mounting solution to achieve compatibility for both 30.5 x 30.5mm as well as 20 x 20mm mounting patterns. Through some clever engineering, it is perhaps the only stack that is compatible with quads of all kinds and sizes: anything between 3” and 8” propellers, 3S - 6S, with the most common mounting patterns, compatible with any digital or analog video system.

For the professional pilot, this MPU6000 (Pro) variant is available (those who know, will know), while the ICM-42688P based version offers a state-of-the-art gyro solution at a better price.

Check out all our Stacks Collection and the rest of our TBS products!

Specifications:

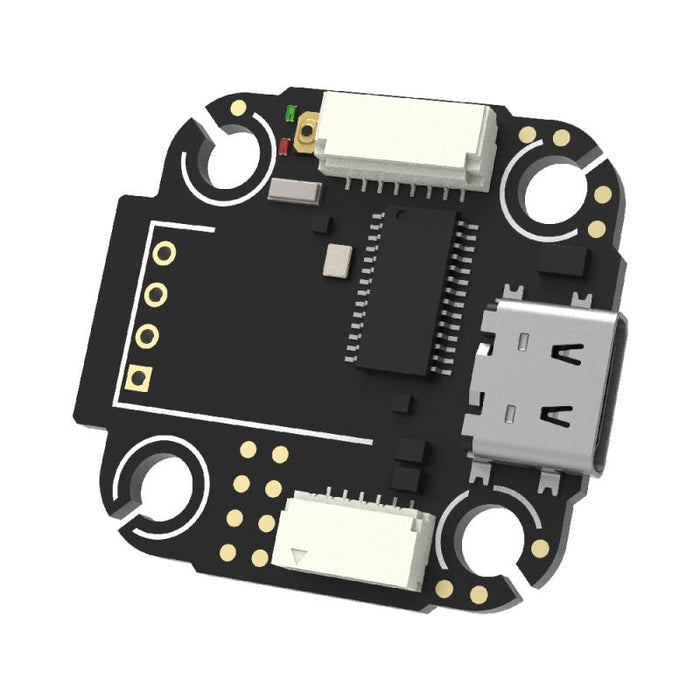

Flight controller:

  • MCU    AT32F435RMT7, 288MHz
  • Gyro    MPU-6000
  • Motors    4 motors, with telemetry and current sensor
  • BEC    9V, 2.5A. 5V 2A
  • OSD    AT7456E
  • Blackbox    8M
  • UARTs    6 (UART1/UART3/UART4/UART5/UART7/UART8)
  • Input    3S-6S
  • Size:    31mm*29mm
  • Mounting    20mm*20mm
  • Weight    4.51g



Default/recommended port assignment:

  • UART2: ESC Telemetry
  • UART3: DJI O3 Air Unit
  • UART4: DJI O3 SBus
  • UART5: CRSF Rx
  • UART7: GPS
  • UART8: Smart Audio

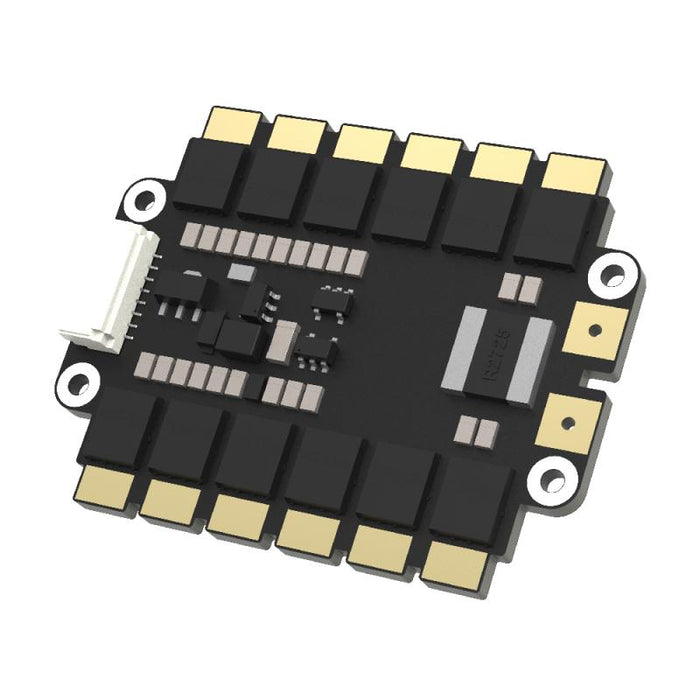

ESC Specifications:

  • ESC software:    AlkaMotors32 (AM32)
  • ESC target:    tbslu6s4in1
  • Rated current:    60A x 4, 300 seconds
  • Peak Current:    70A x 4, 60 seconds
  • Propellers:    Up to 9", over 7" requires good airflow
  • Input:    3-6S Lipo
  • Protocol:    Bi-directional Dshot 300/600), KISS ESC Telemetry
  • ESC Current port:    Yes
  • BEC:     No
  • Size:    34mm*44mm
  • Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20x20 mm, 30.5x30.5 mm
  • Weight:    13.81g, 19g incl. brackets



GORILLA MOUNT:

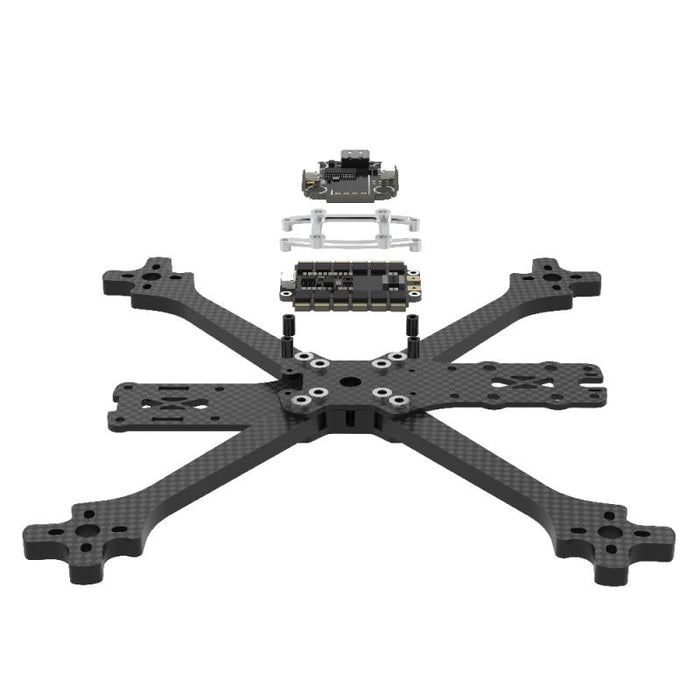

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the "Gorilla" mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.

TBS Gorilla 20x20mm Stack Mounting Adapter

TBS Gorilla 30x30mm Stack Mounting Adapter



Downloads:



 Package Includes:

  • 1 x TBS Lucid Pro Stack ( Flight Controller+4in1 ESC )

Warranty Policy:

If any warranty needs for this product arise, please note that the manufacturer of this product is one of the few manufacturers we carry that requests the end user to contact them directly for any troubleshooting or possibly defective items. We must follow these policies set by these manufacturers. Please make sure to contact them directly if you feel your product is defective in any way. Reach out to us if you need an email address or contact link for this manufacturer.
