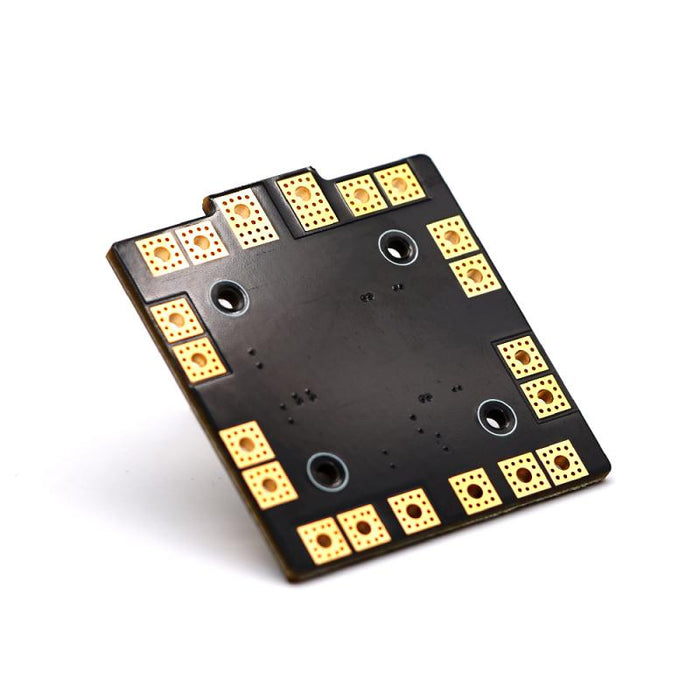

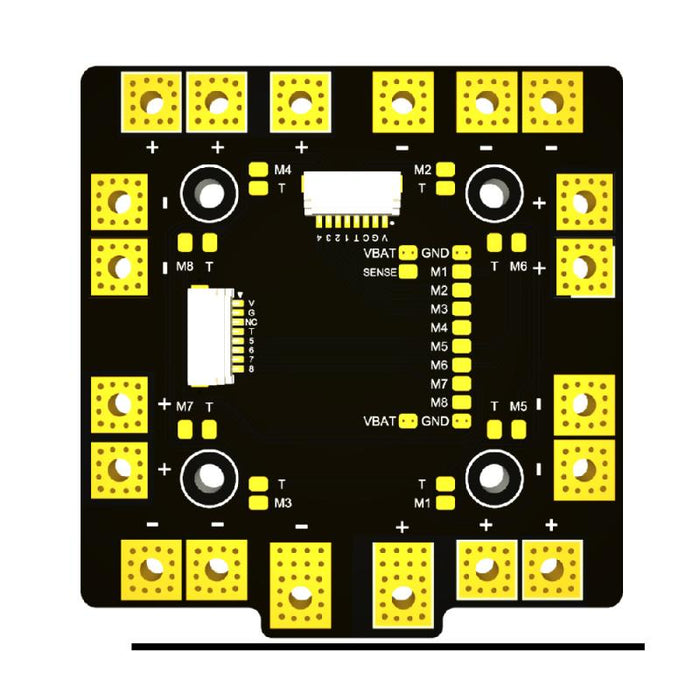

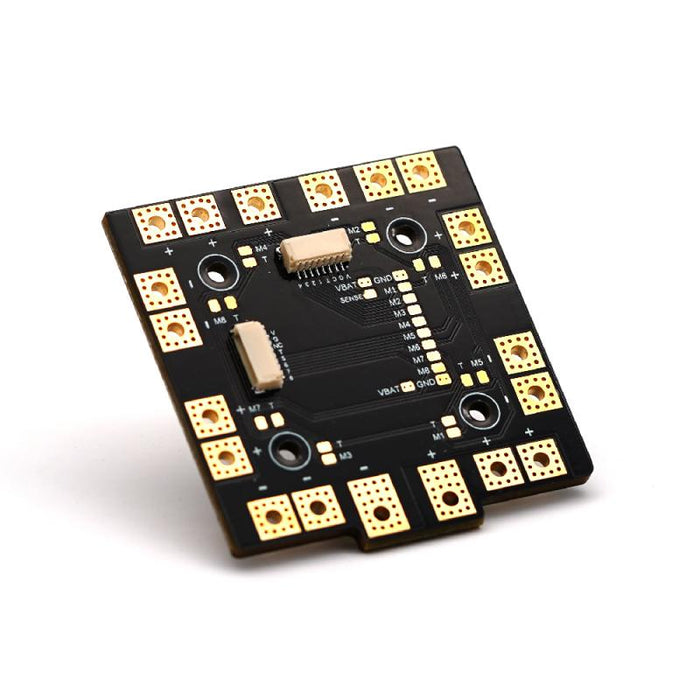

Maximize the power and efficiency of your large drones with the TBS Lucid PDB 500A. This powerful power distribution board can handle 500A continuous current and is able to support up to 8 ESCs. Enjoy seamless power distribution and improved performance with TBS Lucid PDB 500A.

Check out all our PDB and Voltage Regulators and the rest of our TBS Products!

Specification:

• Material: 8L 3oz Thick copper plate
• Continuous current: 500A
• Size: 58 x 62mm
• Mounting Holes: 30.5 x 30.5
• PCB thickness:3mm
• Support up to 8 channels ESC
• Lucid FC line up plug&play
• Telemetry Pad
• VBAT Sensor Pad
• External Current Sensor: Supported
• Weight:36g

Package Includes:

• 1 x TBS Lucid PDB 500A
