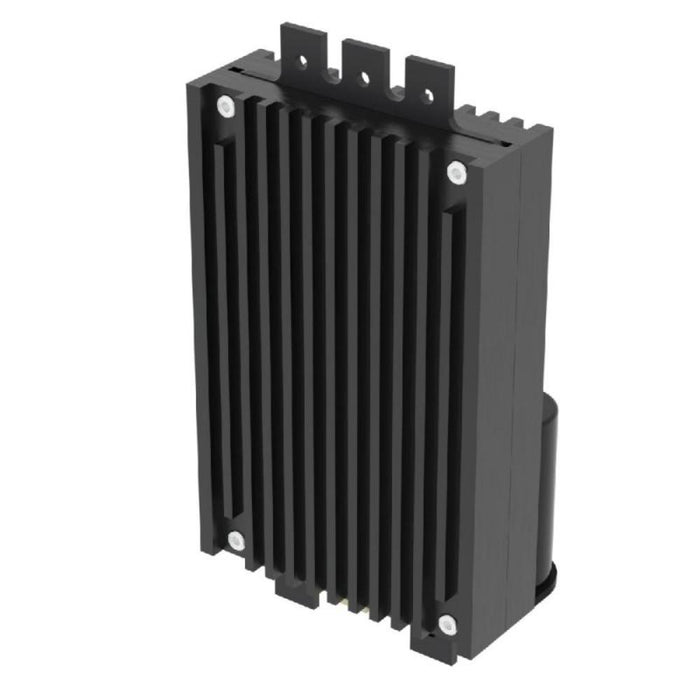

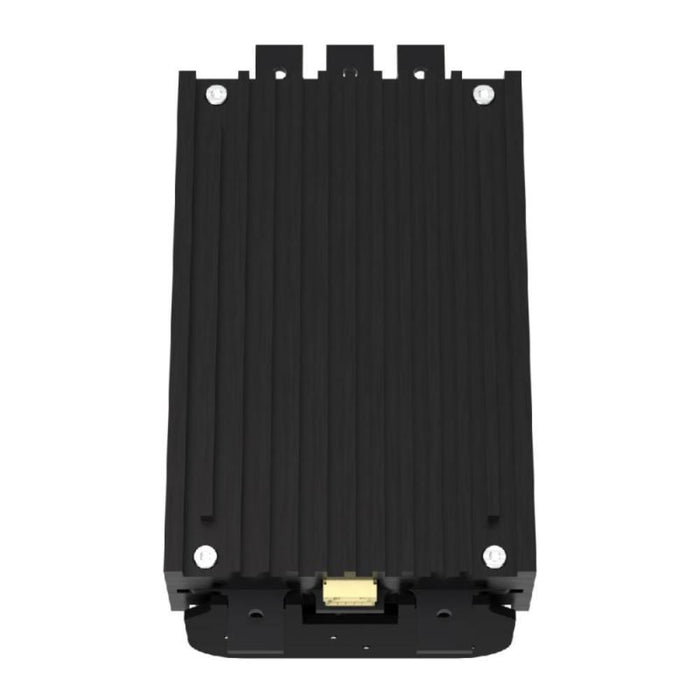

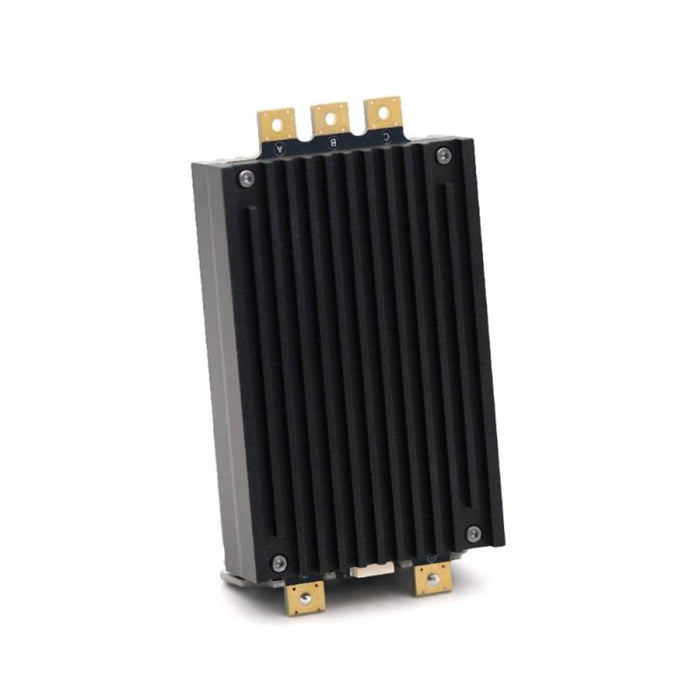

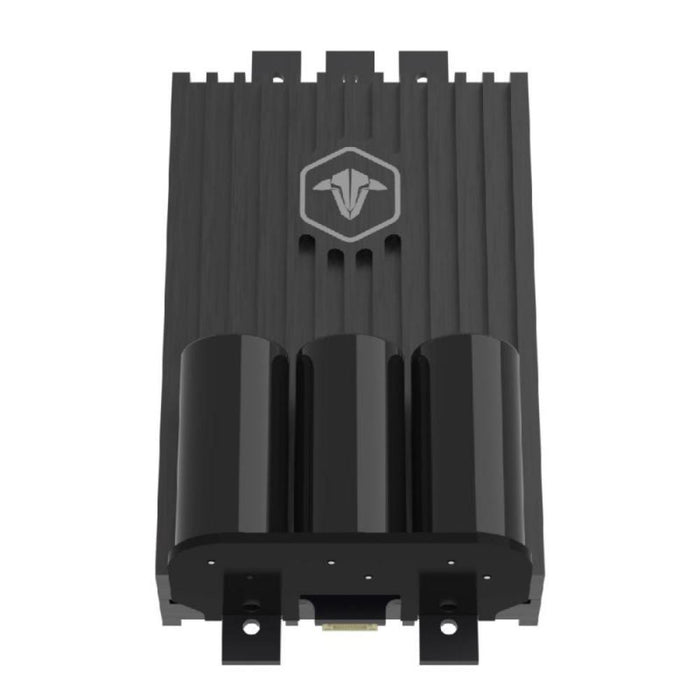

The TBS Lucid 16S is a force to be reckoned with. Built for high voltage and high power applications that demand high reliability and power at your fingertips.

Featuring a 10 layer high current density board with excellent heat resistance the ESC is built to withstand the harshest punishment of everyday flying while delivering excellent payload capabilities. With built in TVS, voltage spikes are no longer a concern. By focusing on thermal dissipation from the ground up, the ESC achieves excellent power to weight density without the need of heavy heat sinks.

A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.

Check out all our X-Class Electronic Speed Controllers and the rest of our TBS products!

Important note:

• Remember to wire up the GND connection of your signal wire back to the FC. At high voltages, this is required.



Download

• STEP file for design / prototyping - [DOWNLOAD]

Specifications:

ESC software:	AlkaMotors32 (AM32)
ESC target:	AM32_TBS_16S_L431 or AM32_TBS_16S_L431_CAN
IP Rating:	N/A (contact us for IP-rated versions)
Rated current:	200A, 600 seconds, 580A 10 seconds (With airflow:33m/s)
Propellers:	Up to 32" (over 11" requires good airflow)
Input:	3 -16S Lipo
Protocol:	Bi-directional Dshot 300/600, KISS ESC Telemetry
ESC Current sense:	Yes / Built-in
ESC Voltage sense:	Yes / Built-in
BEC:	No
Size:	107mm x 57mm x 38mm
Weight:	222g excl. cables



Package includes:

• 1 x TBS Lucid 16S 200A ESC

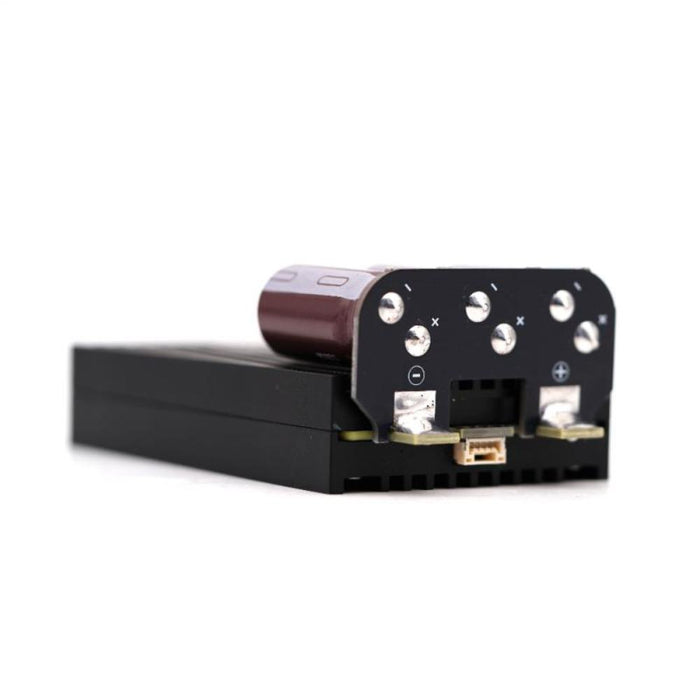

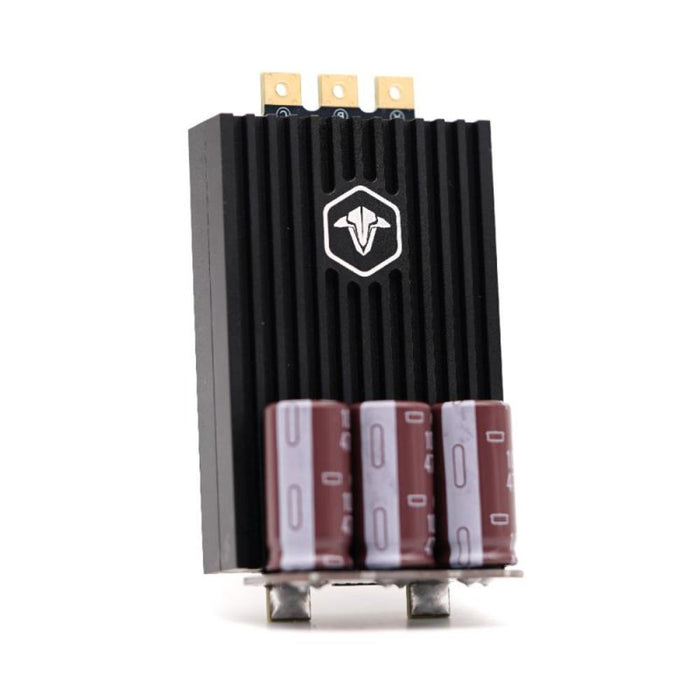

• 1 x TBS Lucid 16S Capacitor PDB (3x 470uF)
• 1 x TBS Lucid 16S aluminum heatsink
