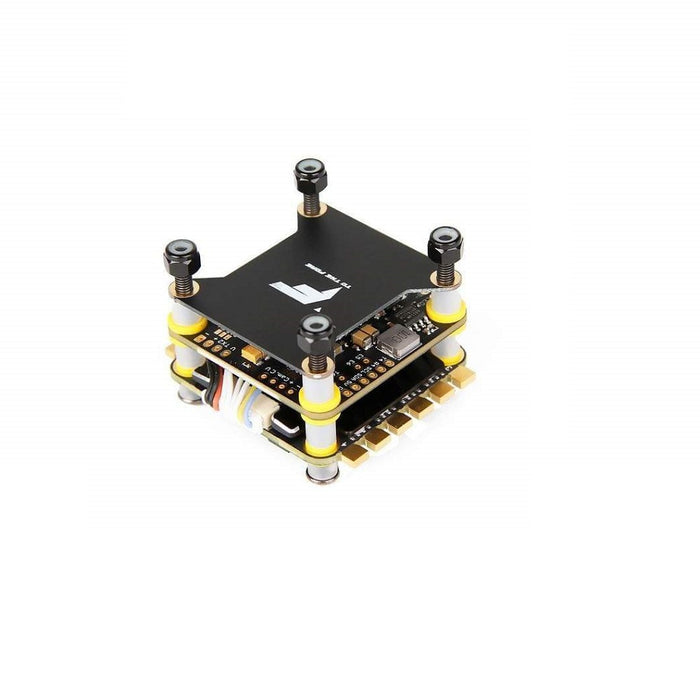

T-Motor F7+F55A V2.0 30x30 Premium Stack/Combo

Regular price $137.90 Sale

Availability: Available Unavailable

Product SKU: 4B-6922

Product Details

Tmotor is expanding their FC/ESC stack line with the new F7 flight controller.
Check out all Tmotor stacks HERE

Specifications

FC
  • MCU: STMF722RET6
  • Gyro: BMI270
  • Memory: 16M
  • Input Voltage: 12v-25-2v (3-6S)
  • BEC: 5V/2A
  • Dimensions: 37mm x 37mm
  • Mounting Holes: 30.5mm x 30.5mm
  • Weight: 7.4g
  • Firmware Target: TMOTORF7 (Betaflight)

ESC
  • Continuous current: 4*55A
  • BLHeli_32 32bit
  • Burst current: 4*75A
  • BEC Output: 10V @2.0A
  • Size: 45x41x7.3mm
  • Weight: 17.3g (Including Heatsink)
  • Support DSHOT150/300/600/1200

Includes

  • T-Motor F55A PRO II + F7 STACK × 1
  • M3×30 Screw × 4
  • M3 Non-Slip Nut × 4
  • M3×3 White Hollow Isolation Column × 4
  • M3×3 White Hollow Isolation Column × 12
  • Insulation Sheet × 1
  • Electrolytic Capacitor × 1
  • Power Cord × 1
  • Link Board × 4 (racewire)
  • Graph Connection Line × 2
  • ESC Cable × 2
