SonicModell AR Wing Pro PNP 1000mm Wingspan EPP FPV Flying Wing

SonicModell AR Wing Pro PNP 1000mm Wingspan EPP FPV Flying Wing

SKU W1-13964
Availability:
in stock
$178.99 - $178.99
$178.99
$178.99 - $178.99
$178.99


The AR Wing Pro PNP comes with the motor and servos but they are not preinstalled. Assembly is required.

With more than 35000+ units sold since it first came out and countless of other models trying to imitate its design, the SonicModell AR. Wing by SonicModell and has earned the title of "Classic" in the FPV world.

 At SonicModel, we understand that the hobby is growing and that trends are changing; as a result, we are proud to offer our pilots the SonicModell AR. Wing Pro 1000mm Wingspan EPP RC Airplane. This is the first RC FPV airplane that is compatible with the DJI Digital HD FPV System! There have been many improvements in the AR. Wing, like the extra nose, side camera bay, and main hatch to fit all FPV and AIO cameras in the market!

Don't forget to check out the rest of our Fixed Wing Planes.

Features:

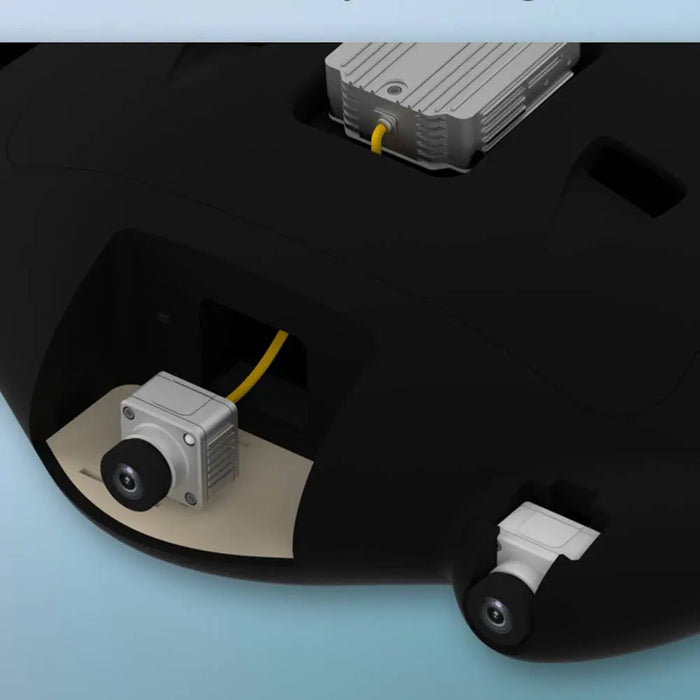

  • The World 1st FPV Wing with dedicated nose camera bay and main hatch bay for DJI HD Air Unit System, no need any cut or DIY to fit the DJI System.
  • Aerodynamic designed FPV pocket in both sides of the fuselage, with high efficient NACA air cooling system to ensure the FPV gear work in perfect condition.
  • Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability, and crush resistance.

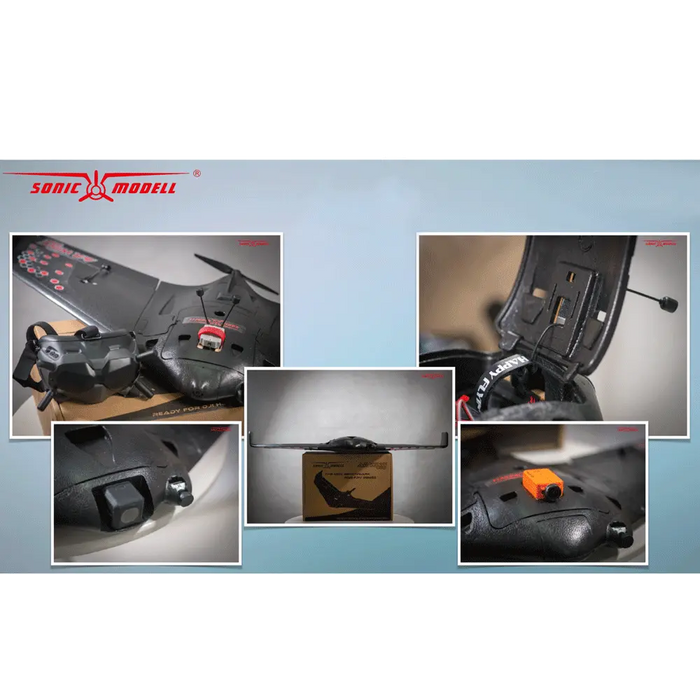

  • Extra nose and side camera bay and main hatch that compatible with all FPV and AIO cameras in the market.

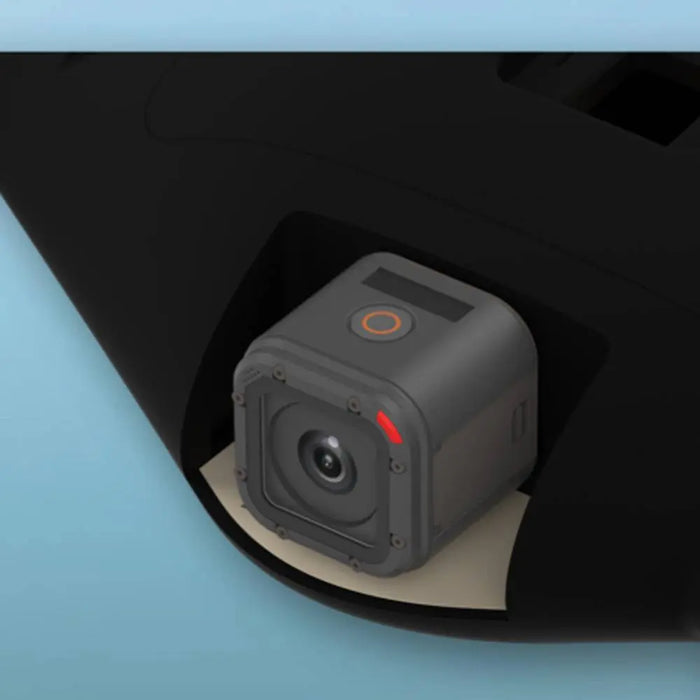

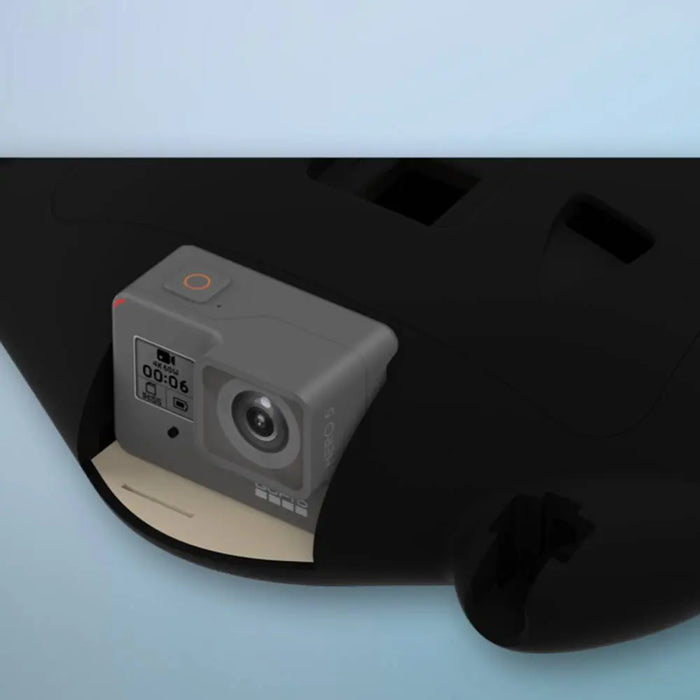

  • Nose camera slot compatible with all HD Auction cameras (GoPro, DJI, Runcam, etc) in the market.
  • Multiple tunnels inside all equipment bays, easy to layout wire between each bay.
  • Detachable main wing and wingtip, glue-free assembly, portable for outdoor flying.
  • THE Built-in CF rod in the ailerons will give precision and sharp action to your inputs.
  • A high accurate ball link control system brings agile and quick response in control.
  • Special-designed “servo arm built-in” structure will protect your servo arm from impact.
  • Large battery bay for extended flight time and more rooms for various Flight Controller.
  • Decent rear bay for ESC, isolate interference from other FPV equipment.
  • The built-in plate inside the fuselage for extra enhancement.
  • Extra CA Hinges for DIY will bring you more stiff and agile control.
  • The optimized air-cooling design will keep your gear safe from overheating

Specifications:

  • Brand Name: SONICMODELL
  • Item Name: AR Wing Pro
  • Material: High-Quality EPP
  • Wingspan: 1000mm (39.37'')
  • Length: 450mm (17.71'')
  • Version: KIT, PNP
  • PNP Empty Weight: 500g

Recommended SonicModell Power Combo Configuration

  • Motor: 2216-1400KV
  • ESC: 40A w/5V 3A BEC
  • Servos: 2pcs 9g metal gear servo
  • Propeller: 2 blades 8x5
  • Recommended Battery (Not Included):
    • Lipo 4S 3200-3500mAh
    • ZOHD Lionpack 18650 4S2P 7000mAh

Recommended Flying Capability

  • Min. recommended speed: 31km/h
  • Max. Speed (with SM power combo): 130km/h
  • Cruise speed (with SONICMODELL power combo): 75/80km/h @ 5.5A
  • Max Speed tested without structural failure: 220km/h with no structural damage or twist on elevons
  • Max recommended takeoff weight (with SONICMODELL power combo): 1425 grams
  • Reflex on elevons: 1.5-2mm at level
  • Recommended max. Throws: 12mm

Package Includes:

  • SonicModell AR. Wing Pro Kit with power combo (uninstalled motor, ESC, servos, propeller, and hardware.)
  • PNP package size: 42*31*15.5cm
  • PNP package weight: 1500g
