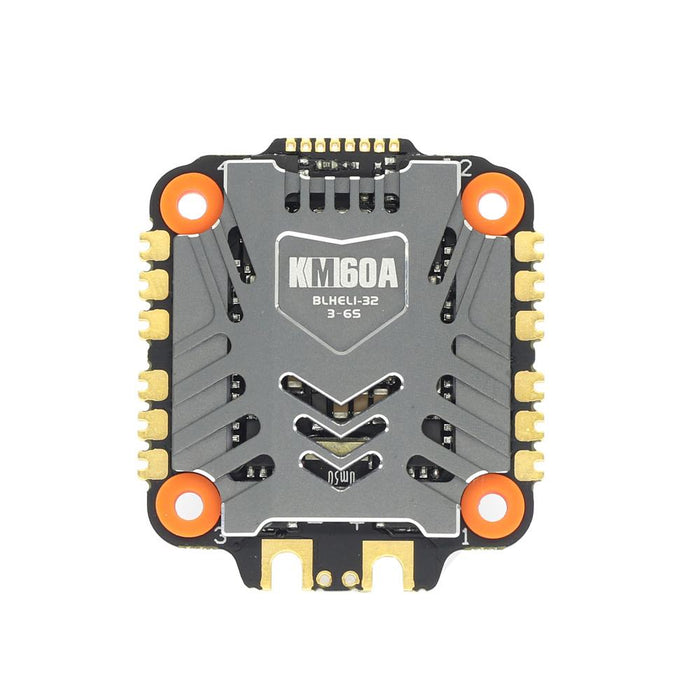

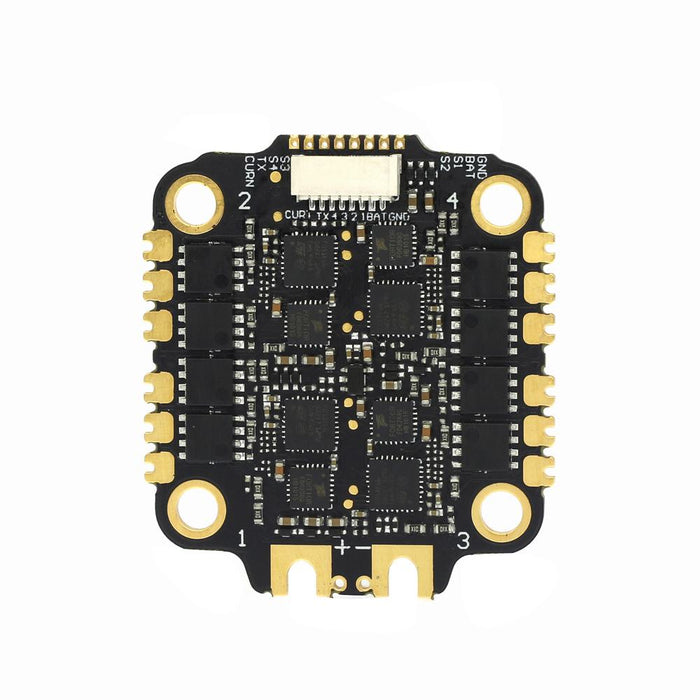

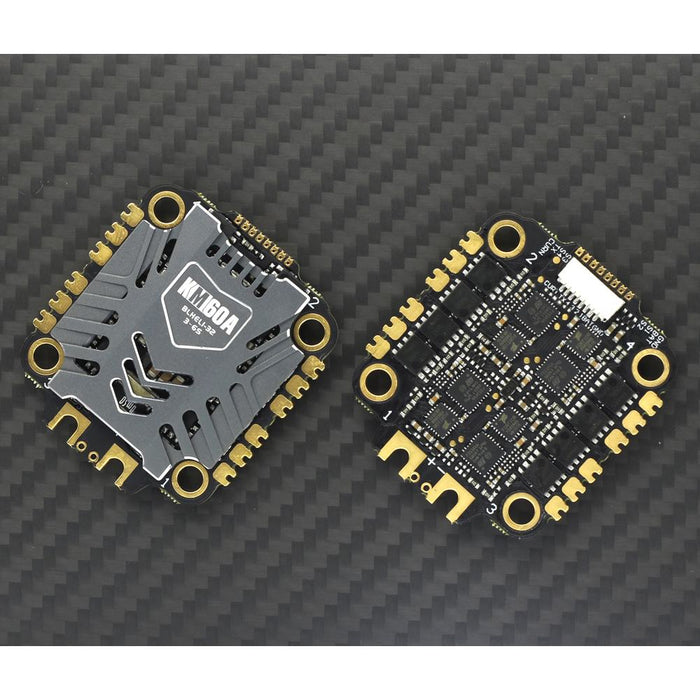

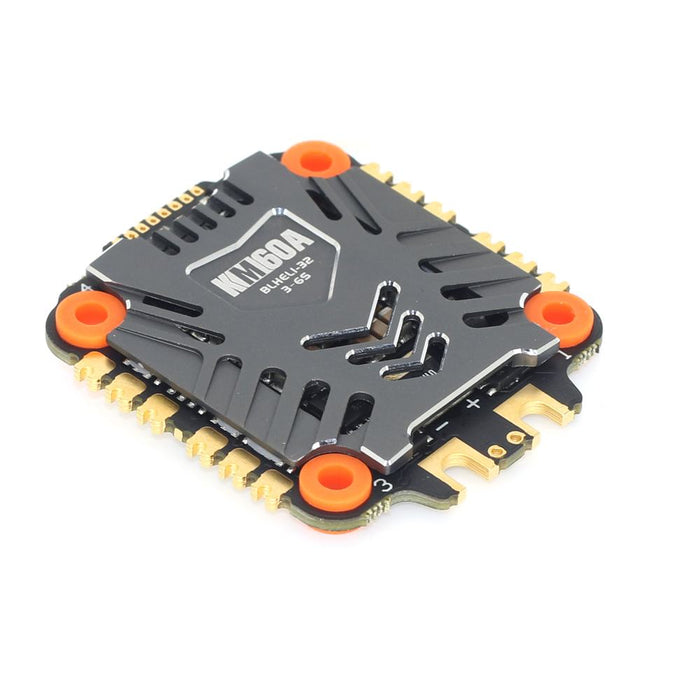

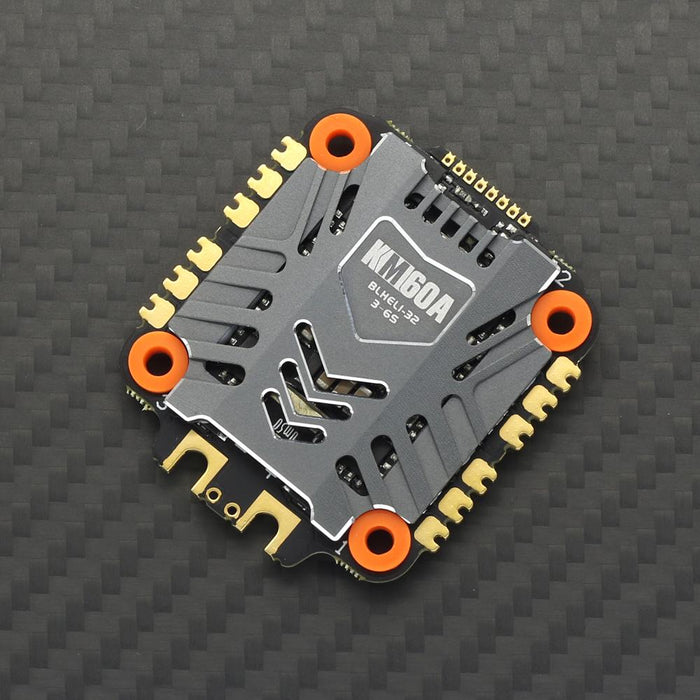

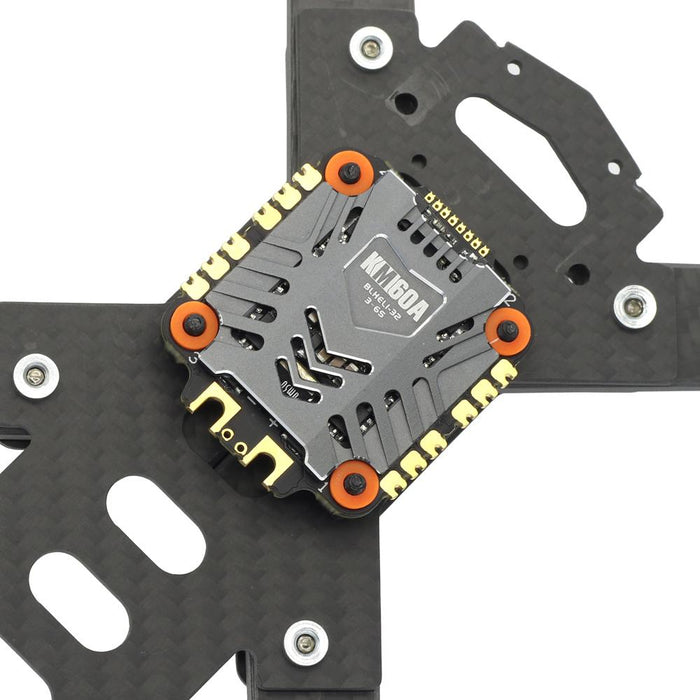

Skystars KM60 BLHeli32 60A 3-6S 4-in-1 ESC - 30x30mm

Skystars KM60 is a powerful ESC for 5-8" freestyle and long-range drones. The ESC supports 3-6S batteries and current up to 60A, which makes it suitable for motors sizes 2207-2808. The ESC has an aluminum heat sink on it to help dissipate heat better while protecting sensitive components from mechanical damage. It can be connected to the flight controller via a connector, but pads for soldering are also available. The ESC uses a powerful F4 32-bit processor and BlHeli_32 firmware. It supports telemetry, bidirectional DShot and PWM frequency up to 128KHz.

Check out all our 30x30MM Electronic Speed Controllers and the rest of our Skystars Products!

Features:

• 1. Excellent over-current capability.
  By adopt the best PCB material and PCB production process. Such as application of high TG materials , 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.
• 2. Extreme stably support 6S LiPo battery
  By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.
• 3. Excellent heat dissipation performance
  The CNC hollow aluminum alloy shell use, Not only good for heat dissipation, but also get a beautiful appearance.
• 4. Better control performance
  Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage ,RPMS & current )

Specifications:

• Input voltage: 3-6S LiPo

• Con.Current: 60A

• Peak Current: 80A≥ 10S

• Firmware: BLHeli_32

• Support : Dshot 600/1200

• Mounting hole : 30.5mm/M3

• BEC: No

• Product size: 41*46*7.6mm

• Weight: 18g

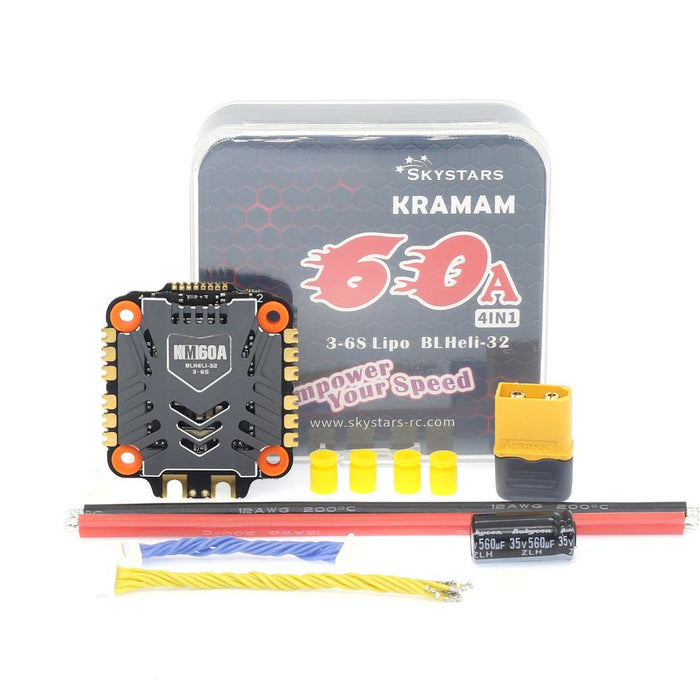

Package Includes:

• 1 x Skystars KM60 60A 3-6S 4 in 1 ESC

• 4 x Damping Rubbers (M3x8mm)

• 4 x Damping Rubbers (M3x3.5mm)

• 1 x XT60 connector and wires

• 2 x 8pin wiring harness (1x 70mm,1x 50mm)

• 1 x 35v 560uf Capacitor
