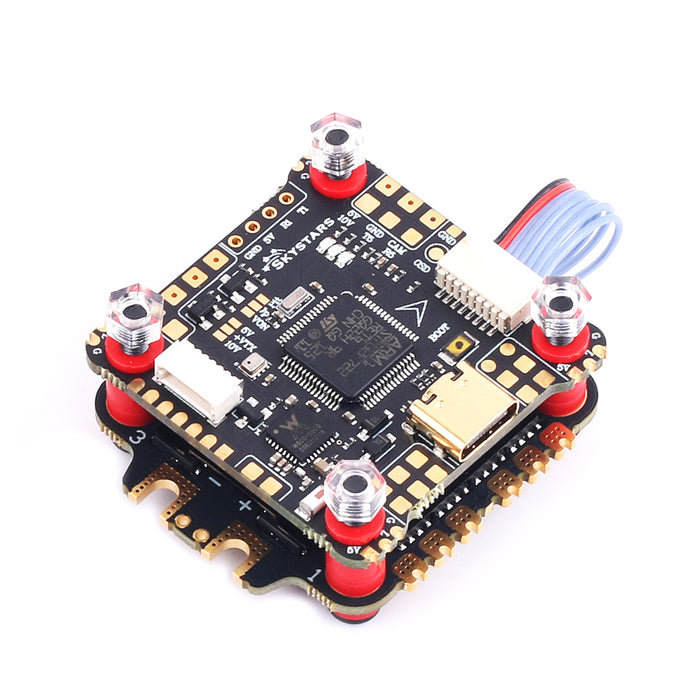

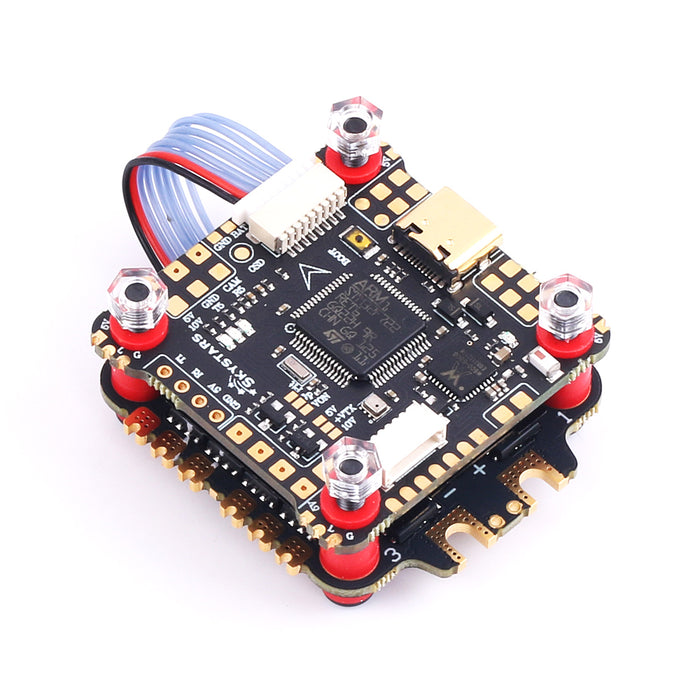

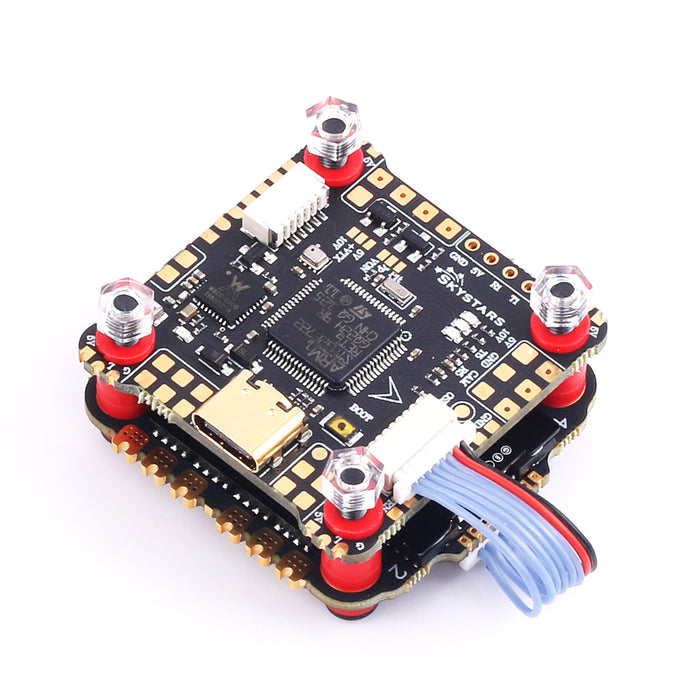

Skystars F722 APP WIFI HD3 Flight Controller and KM60 60A 3-6S Blheli-32 ESC Stack - 30x30mm

Skystars Stack with 30x30 F722HD Pro4 Flight Controller & KM60 60A ESC! The flight controller Includes 6 UARTS, a 10V 3A Regulator for Caddx Vista or DJI Air Unit, and 8MB Blackbox! The flight controller also has convenient solder pads placed at each corner for easy wiring of LED's.

The Skystars RC KM60 is a 60A 4-In-1 BLHeli_32 ESC with all the latest features found in modern speed controllers.  With a beefy heat sink cover, this ESC should offer smooth performance and great durability.

Check out all our Stacks and the rest of our Skystars Products!

Flight Controller Features:

• 1. Solder pads are the largest in size compared to other FC in market.

• 2. Proper solder pad spacing to avoid solder bridge and facilitate easy soldering.

• 3. ESC connector on top-side rather than bottom which makes it easy for repair.

• 4. Support ELRS receiver row pin straight mounting.

• 5. TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.

• 6. Powerful BEC to supply all your electronics.

• 7. Pads arrangement are executed in such a way that when you twist the wires of the camera VTX and RX you don’t get any wire overlapping this gives you a uniform twist and clean look.

• 8. DJI connector on the top side.

• 9. Budget-friendly price ( We understand the situation of chip shortage and rising prices of FC )

• 10. Two stages of Quality check to reduce any faulty electronic.

• 11. No power lines near Gyro to avoid any EMI interference.

• 12. Comes ready with I2C support and INAV.

Flight Controller Specifications:

• MCU: STM32F722RGT6 216MHz

• Gyroscope: BMI270

• Baro:Bmp280

• OSD: Betaflight SPI OSD DJI HD OSD(UART6)

• Black box: 16MB

• 6x Uarts: UART 1/2/3/4/5/6

• 4x PWM outputs

• 1x I2C

• 3x LEDs for FC STATUS(blue)and 3.3V indicator(Red)

• USB Type-C(USB2.0)
• 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
• 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
• VTX 10V/Vbat filtered power ON/OFF switch
• DJI FPV OSD is supported by any spare UART
• LED: 4 LED independent pads, support WS2812 programming lamp output.
• Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

• Input voltage: 3-6S

• BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

• LDO 3.3V: Max.250mA

FC Firmware:

• WIFI: SpeedyBee APP target name SKYSTARS F7

• BetaFlight firmware: SKYSTARSF722Pro

• INAV firmware:SKYSTARSF722HD

Mounting:

• Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

• External size 39mm × 39mm

• Flight control weight: 6.9g

• Flight control onboard voltage sensor.




KM60A 4IN1 3-6S ESC BLheli32 DShot1200 4-in-1 ESC Features:

• Support Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
• Power supply voltage: 3-6S (12-26V)

• Continuous working current: 60A

• No built-in 5V BEC output

• Firmware: BLHELI 32 ESC

• Screw hole spacing: 30.5*30.5MM

• Aperture: 4MM

• Weight: 14.6g
• The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.

• EMI Shell provides stronger anti-interference capability.

Package Includes:

• 1 x F7 Wifi HD Pro FC

• 1 x KM60 BL32 4IN1 ESC

• 8 x Silicon grommets M4 to M3

• 2 x JST-SH1.0_8pin cable, 4cm

• 1 x JST-GH-6P cable for DJI port, 10cm
