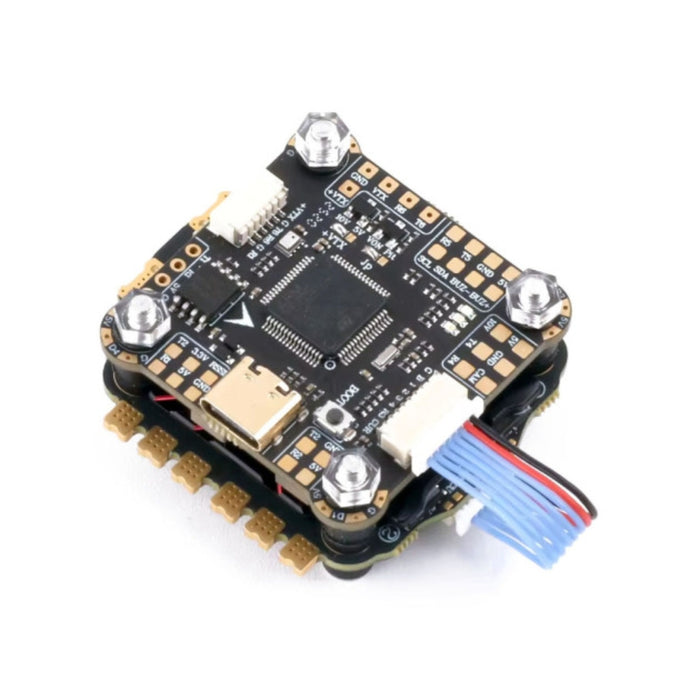

Skystars F7HD PRO5 Stack F722 Flight Controller and KO60 60A 128K Blheli-32 3-6S ESC - 30x30mm

SKYSTARS F7HD Pro5 Flight controller and KO60A Blheli-32 32bit 128K 4IN1 ESC fly tower stack

Check out all our Stacks and the rest of our Skystars Products!

Specifications:

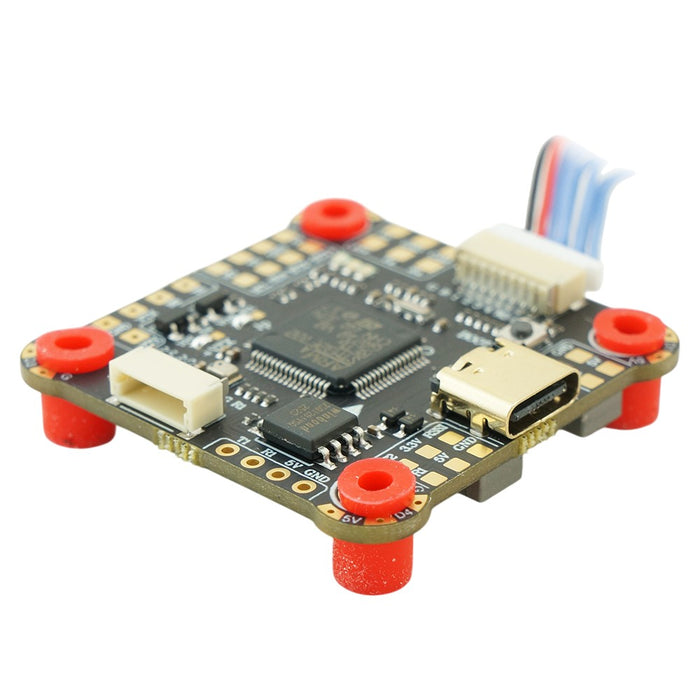

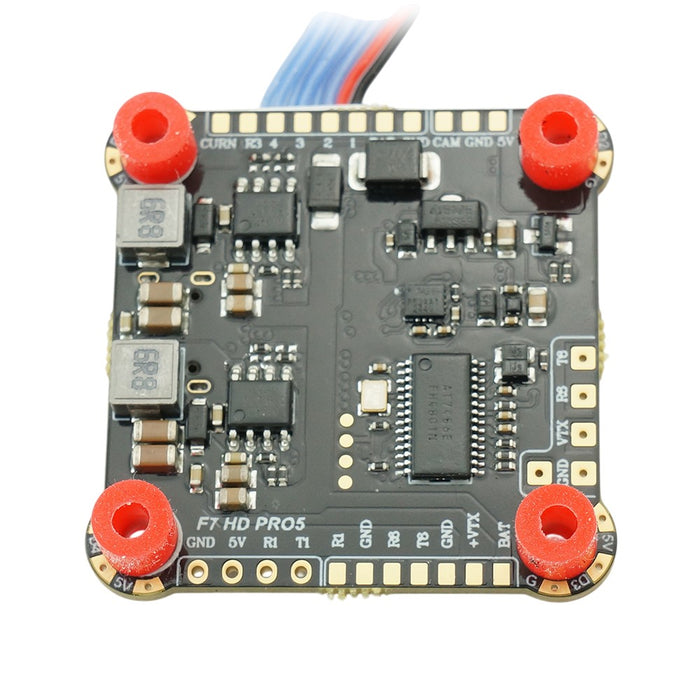

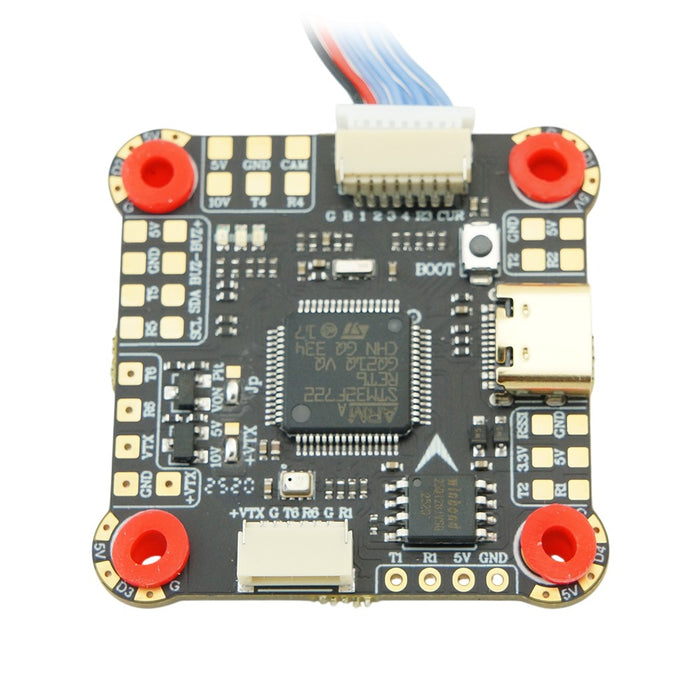

• F722 HDPRO5
• FC firmware: BETAFLIGHT/INVA/ARDUPILOT
• Firmware Name: SKST/SKYSTARSF7HDPRO
• Firmware version: 4.5.2 BTFL
• Main control MCU: STM32F722
• Gyro: ICM42688-P
• Barometer: BMP280
• OSD MCU: AT7456E
• Black box: 16MB
• Motor output: 4ch
• Servo output: NO
• LED: Support×4
• Buzzer: Support
• Receiver Protocol: ELRS/CRSF/S.BUS/Frsky/
• Futabafysky/TBS Crossfre/DSMX
• General serial port: 6ch
• Output power supply: 3.3V/0.5A,5V/3A,10V/3A
• USB: Type-C
• Digital: Support DJI/Vista/walksnail
• Solderless connector: Brushless ESC 8P
• DJI port 6P
• Weight: 9g
• Dimensions: 39.4mm×39.4mm
• Installation holes: 30.5mm×30.50/M4
• Input voltage: 3-6SLiPo(11.1V~22.2V)

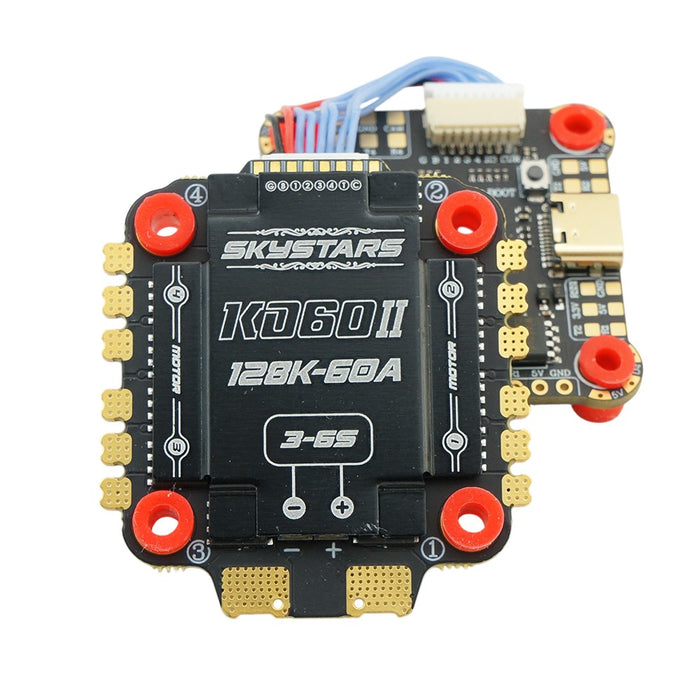

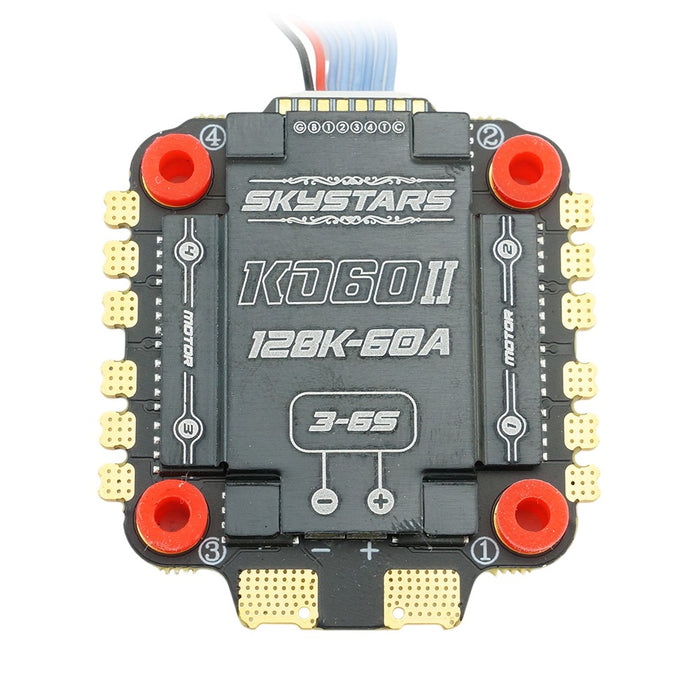

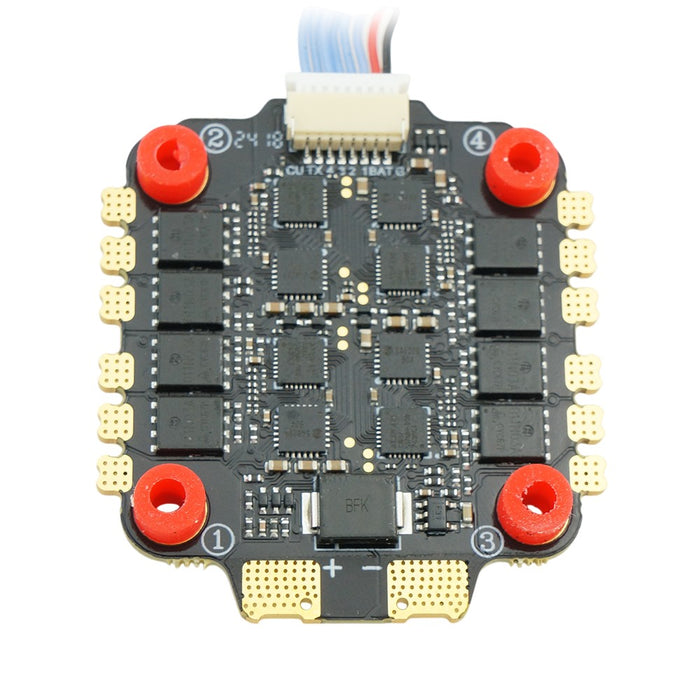

BL32- 60A 4IN1 3-6S ESC BLheli32 128K DShot1200 4-in-1 ESC:

• Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot,
• PWM control signal

• Power supply voltage: 3-6S (12-26V)

• Continuous working current:  60A

• No built-in 5V BEC output

• Firmware: BLHELI 32 ESC

• Screw hole spacing: 30.5*30.5MM

• Aperture: 4MM

• Weight: 14.6g

– The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
– EMI Shell provides stronger anti-interference capability.

Note: There is no difference in appearance between the 45A and 60A ESCs, which can be distinguished from the MOS tube.

Package Includes:

• 1x F7HD Pro5 FC

• 1x KO60 128K BL32 4IN1 ESC

• 8x Silicon grommets M4 to M3

• 2x JST-SH1.0_8pin cable, 4cm

• 1x JST-GH-6P cable for DJI port, 10cm
