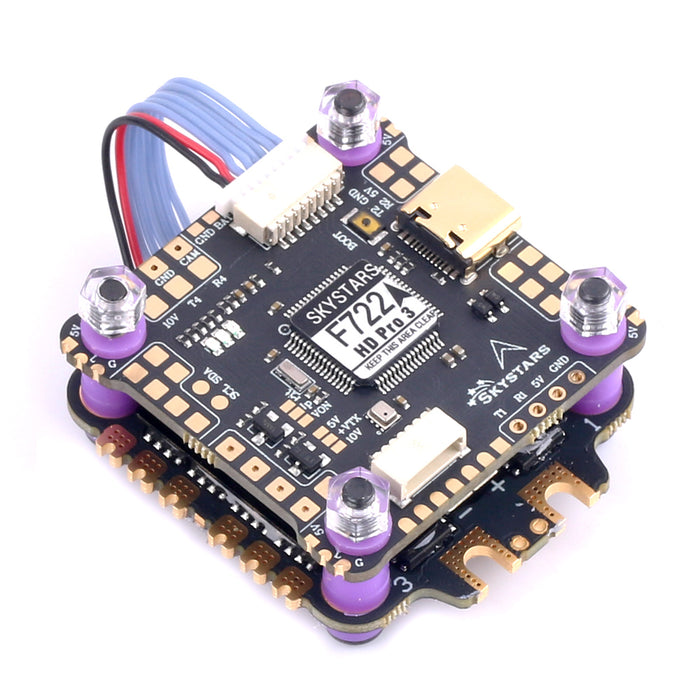

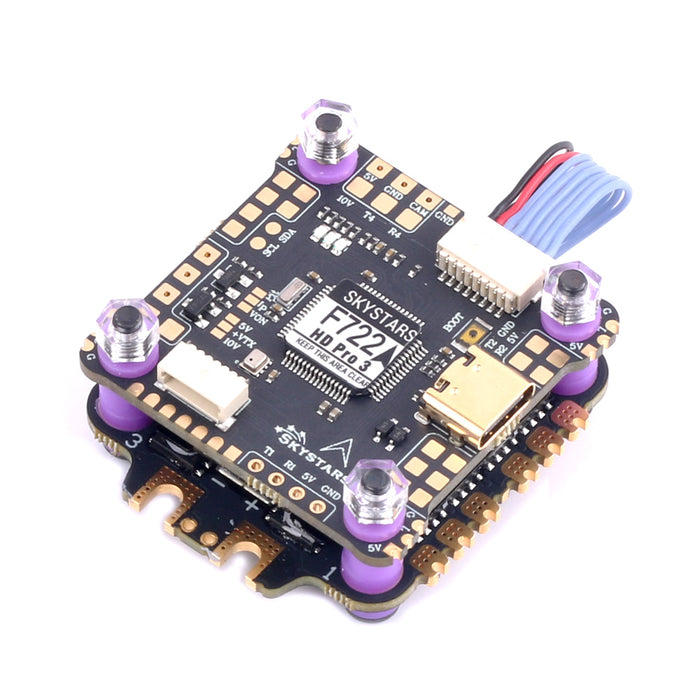

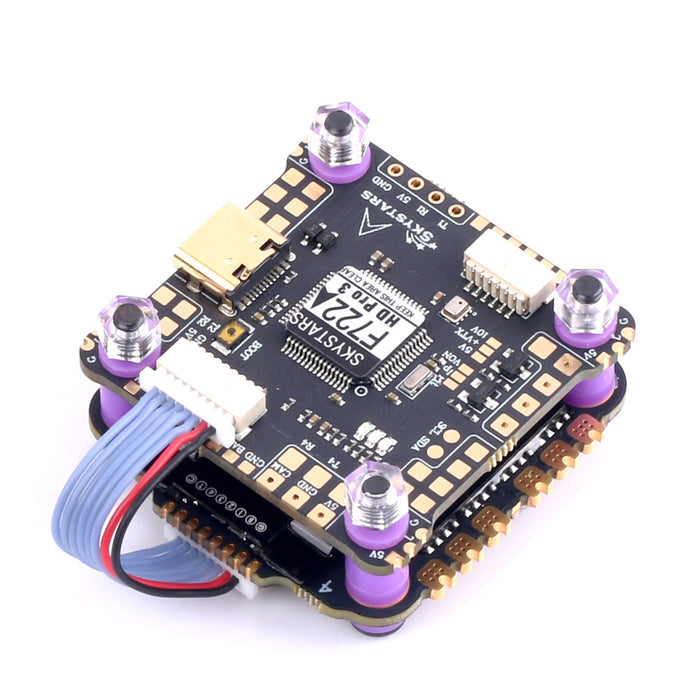

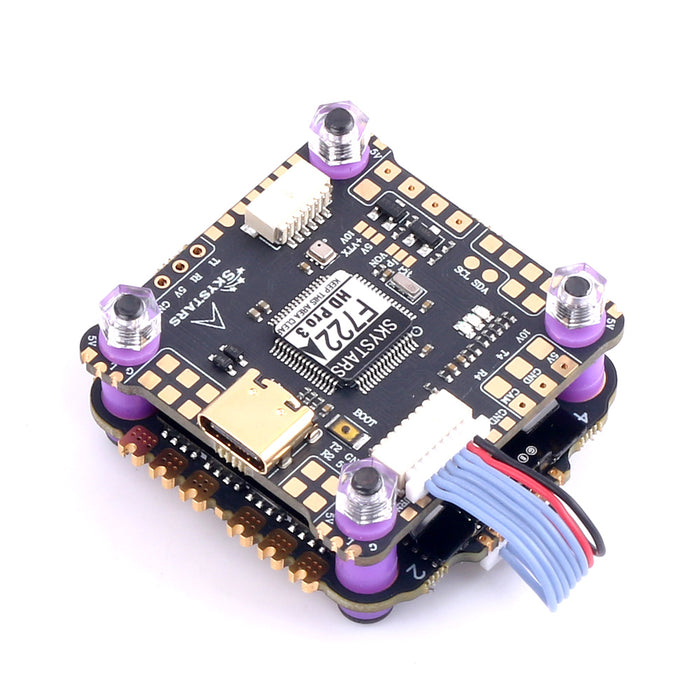

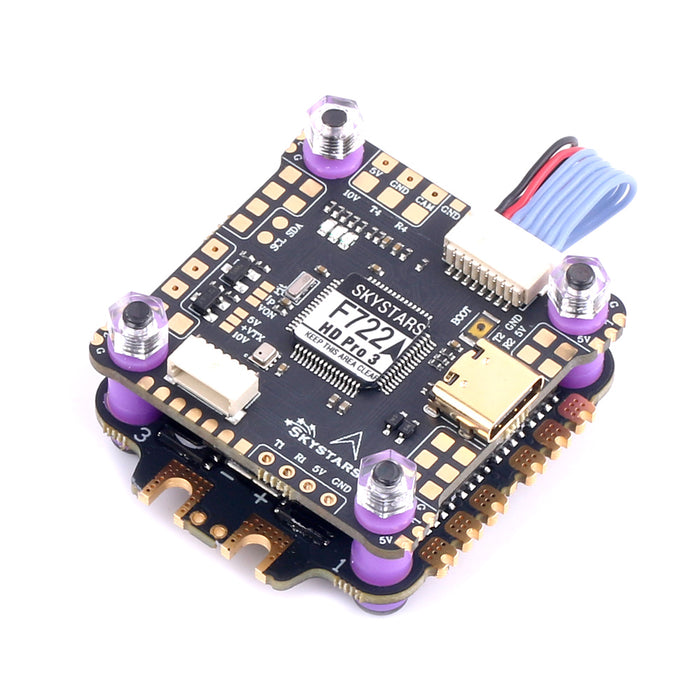

Skystars F7 F722 Flight controller and 60A Blheli-32 32bit ESC fly tower stack - 30x30mm

Regular price $79.99 Sale

Availability: Available Unavailable

Product SKU: 36E-9532

Product Details

SKYSTARS F7 F722 Flight controller and 60A Blheli-32 32bit ESC fly tower stack

Check out all our Stacks and the rest of our Skystars Products!


  • Flight control: MCU: STM32F722RGT6 216MHz
  • Gyroscope: MPU6000
  • OSD: Betaflight SPI OSD DJI HD OSD(UART6)
  • Serial port: UART 1/2/3/4/5/6
  • BEC: 5V 3A 10V 3A dual-channel BEC supports stable power supply on the sky side of DJI
  • Input voltage: 3-6S
  • Black box: 8MB
  • Using firmware: SKYSTARS F7HD
  • LED: 4 LED independent pads, support WS2812 programming lamp output.
  • Receiver: Support Sbus, crsf, ibus, Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX built-in inverter, support
  • 3.3v Spektrum satellite receiver, support PPM receiver, The default receiver input is UART1, but F7 has a built-in inverter, which can actually be installed in any spare UART.
  • Installation size: 30.5mm ¡Á 30.5mm The installation hole is M4 and supports shock column installation
  • External size 39mm ¡Á 39mm
  • Flight control weight: 6.9g
  • Flight control onboard voltage sensor.

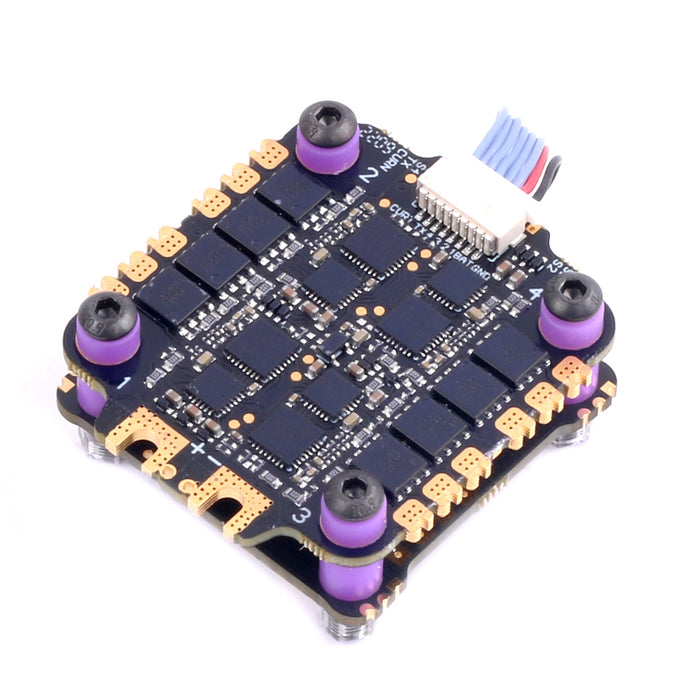

60A ESC:

  • The installation size is 30.5mm ¡Á 30.5mm. The installation hole is M4.
  • ESC weight: 12g
  • ESC onboard current sensor.
  • Continuous current: 60A
  • Instantaneous current [5 seconds]: 65A
  • Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
  • MCU: STM32F051 Operation frequency: 48MHz
  • Firmware: BLheli-32
  • MOS tube model is NVMFS5C430L
  • The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.

Note: There is no difference in appearance between the 45A and 60A ESCs, which can be distinguished from the MOS tube.

Wiring Diagram
