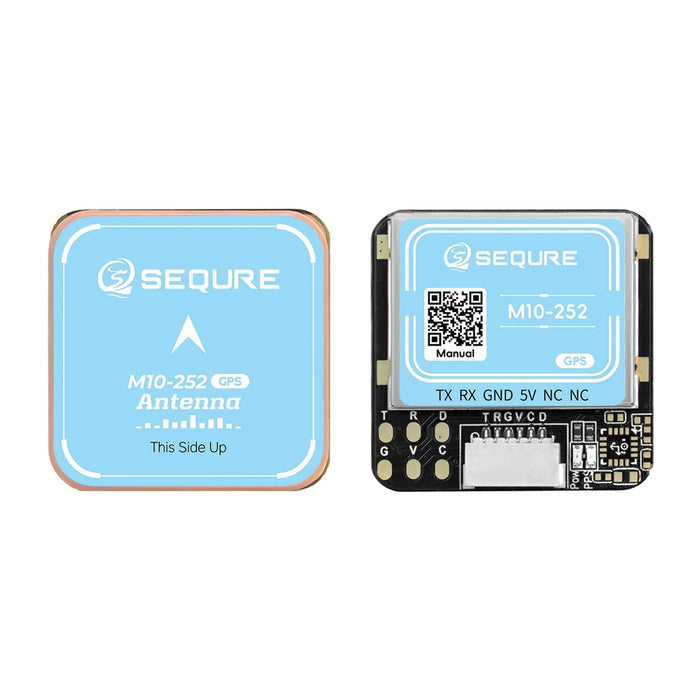

Sequre M10-252 GPS Module Small Size Fast Positioning BF INAV Ardupilot Fixed-wing Drone

SEQURE M10 second-generation GPS is designed with a 10th-generation chip optimization solution and GPS+BDS+GALILEO positioning system, supporting NMEA/UBLOX protocol. It has a faster positioning speed and stronger anti-interference. (2) High-quality ceramic antenna with strong performance and effective reception of satellite signals. (4) Miniaturization multi-specification design for easy installation, accommodating drones of various sizes available on the market. (5) Supports two connection methods: direct plug-in and soldering pad, with high compatibility.

Check out all our GPS and Lost Model Devices and the rest of our Sequre Products!

Features

• Adopts 10th generation chip to design the u-blox output protocol and 10Hz output frequency.

• Lower power consumption and fast positioning.

• High-quality ceramic antenna with strong performance and effective reception of satellite signals.

• Miniaturized design for easy installation on various drone sizes.

• Dual connection methods: direct plug-in (SH0.8-4P) and soldering pads.

• High compatibility with mainstream flight controller firmware.

Specifications

• Model: M10-252

• Chip: M10050

• Working System: GPS+BDS+GALILEO

• Auxiliary System: SBAS, QZSS

• Working Voltage: 3.3V-5V

• Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1

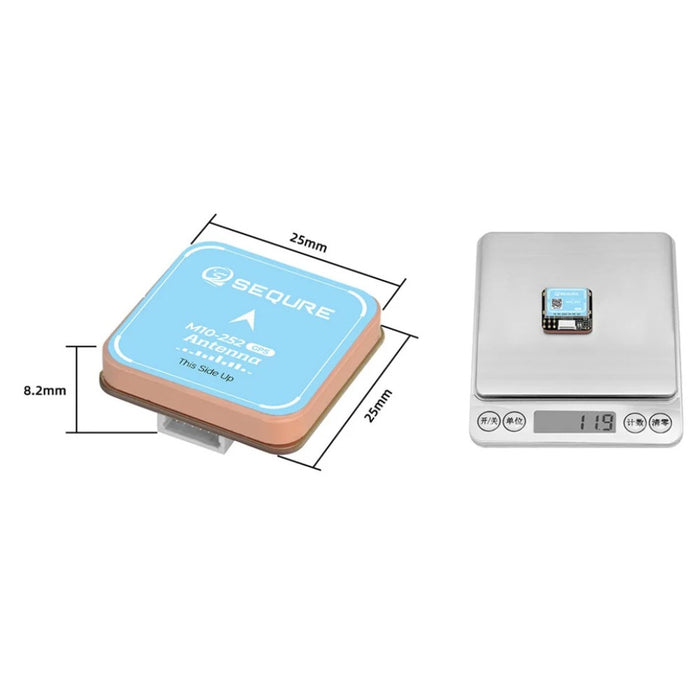

• Size: 25x25x8.2mm

• Weight: 12g

• Interface: PCB pad, SH1.0-6pin straight socket

• Antenna: Ceramic antenna

• Receiving Channels: 72 searching channels

• Baud Rate: 115200

• Output Protocol: NMEA, UBLOX dual agreement

• Output Frequency: 1Hz-10Hz (Default 10Hz)

• Speed Accuracy: 0.05m/s

• Horizontal Positioning Accuracy: 2D ACC1.5m (Open-air)

Compatibility

• Betaflight

• INAV

• Ardupilot

• Fixed-wing Racing Drones

• FPV Quadcopters

Critical Notes

• Ensure the GPS antenna is facing the sky and is not obstructed by carbon fiber or metal components.

• Use a stable 3.3V-5V power supply; incorrect voltage may damage the sensitive 10th-gen chip.

• Keep the module away from high-interference sources such as VTX antennas and high-current power leads.

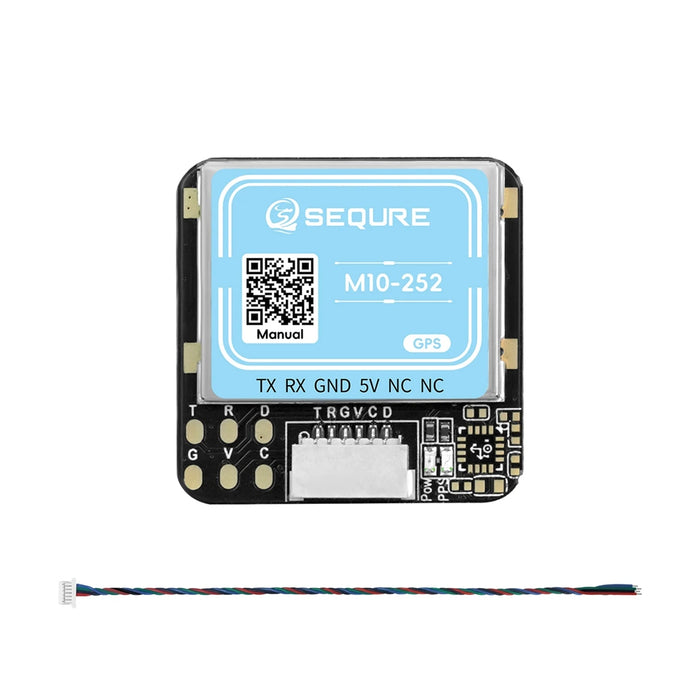

Package Includes

• 1 x SEQURE M10-252 GPS Module
