Sequre Blueson A2 2-6S 65A AM32 4in1 ESC - 30x30mm

The Blueson A2 4in1 ESC features a AT32F421 processor, AM32 firmware, 2-6S voltage input, and a single-channel continuous current of 65A (with a peak of 120A).

Check out all our Flight Controllers and the rest of our Sequre Products!

Features:

• (1) High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.

• (2) Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.

• (3) Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.

• (4) 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install.

• (5) The angled extended large-area pad design not only makes the motor circuit layout more refined, but also effectively simplifies the welding process.


Specifications:

• Processor: AT32F421
• Firmware: AM32
• PWM Frequency: 8KHz-128KHz
• Working Voltage: 2 - 6S
• Continuous Current: 65A
• Peak Current: 120A
• Protocol: Dshot600/300/150,Oneshot,Multishot,PWM
• Telemetry Return: Yes
• Galvanometer: Yes
• BEC: No
• Mounting Hole Spacing: 30.5x30.5mm 4mm/M3

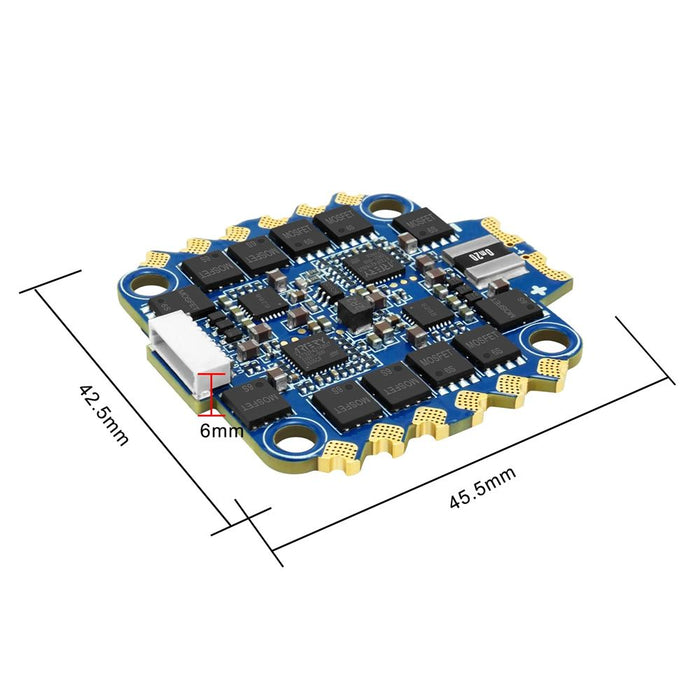

• Size: 45.5x42.5x6mm (LxWxH)

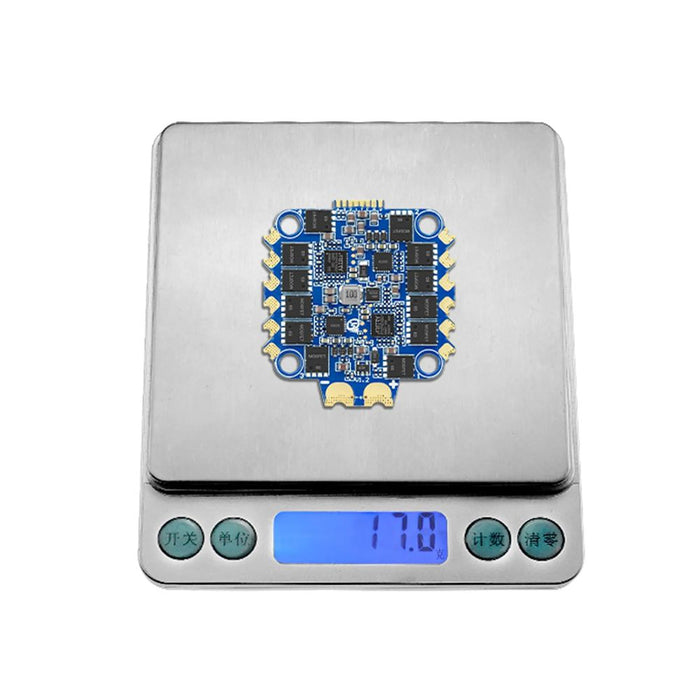

• Weight: 17g

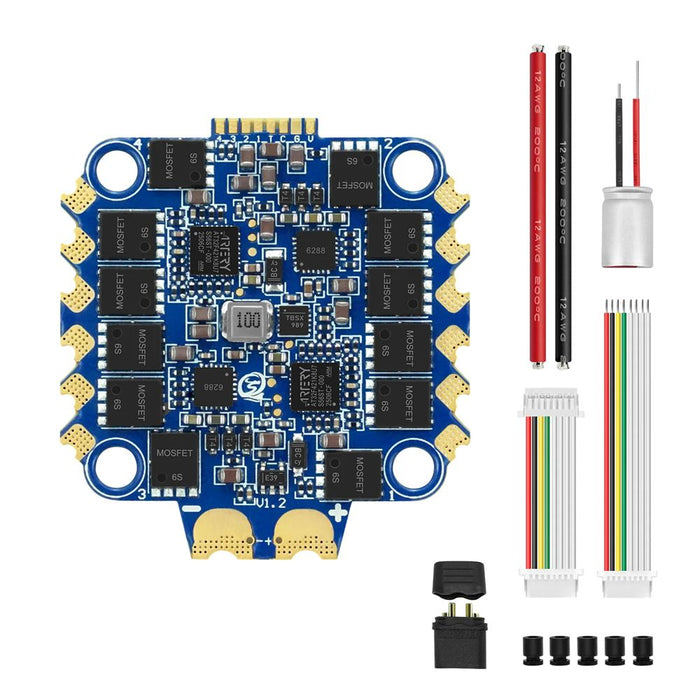

Package Includes:

• SEQURE Blueson A2 4IN1 ESC × 1

• 30AWG 40mm reverse double plug SH1.0-8P cable × 1

• 30AWG 60mm single plug SH1.0-8P cable × 1

• 12AWG 100mm power cable (black/red)×2

• XT60H-M black male connector×1

• 35V 680UF solid capacitor×1

• M3*8mm shock absorbing washer (black) × 5
