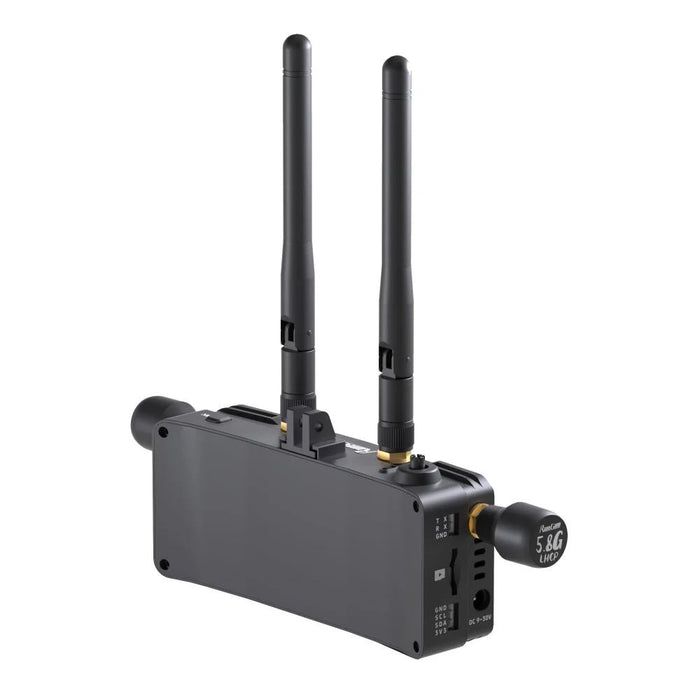

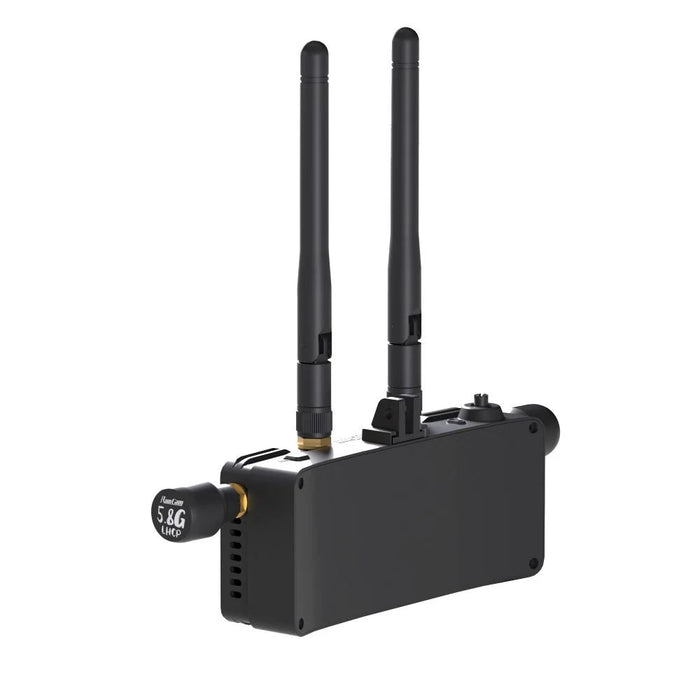

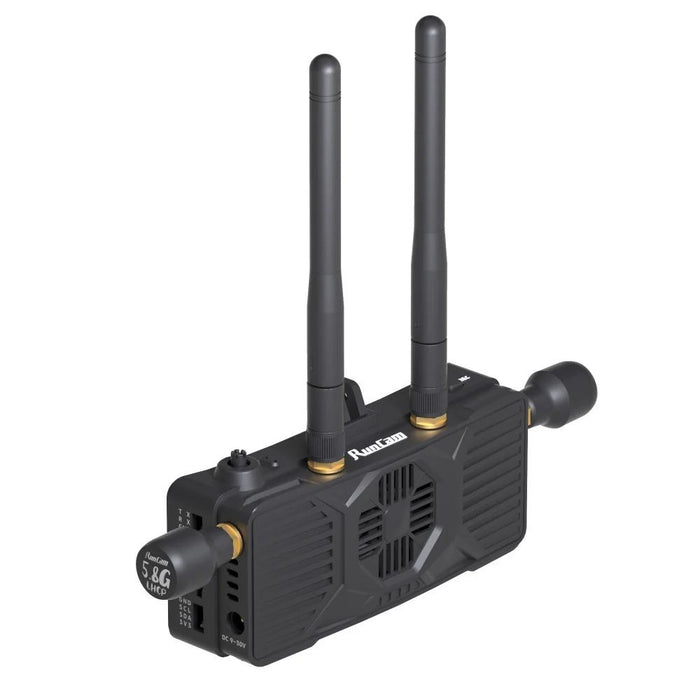

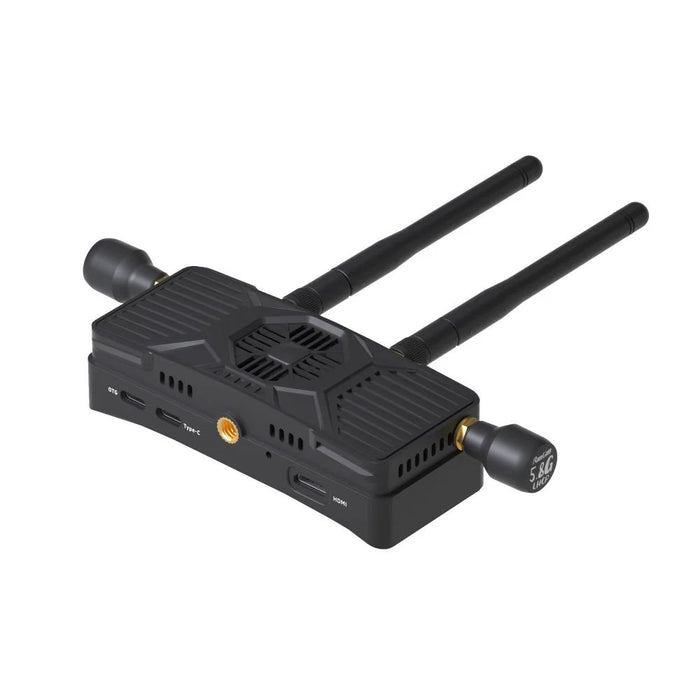

Runcam WiFiLink-RX Digital HD Receiver Supports OpenIPC and Ruby Systems

Runcam WiFiLink-RX Digital HD Receiver Supports OpenIPC and Ruby Systems

SKU V2-14097
Availability:
in stock
$127.99 - $127.99
$127.99
$127.99 - $127.99
$127.99


OpenIPC is an Open source new audio and video communication system under continuous development.

The RunCam WifiLink 2 with OpenIPC and Ruby FPV systems is the ultimate tool for high-quality FPV streaming and control. It offers seamless WiFi connectivity for real-time video and control from your mobile device. With OpenIPC, it’s customizable and open-source, ideal for FPV pilots. Enjoy minimal latency, strong signal, and easy setup for both aerial footage and racing.

Check out all our Digital VTX/Camera Collection and the rest of our RunCam Products!

Specifications

Model WiFiLink-RX
Frequency 5180~5885 MHz
Transmission Power < 25dBm(FCC)
< 14dBm(CE)
< 20dBm(SRC)
< 25dBm(MIC)

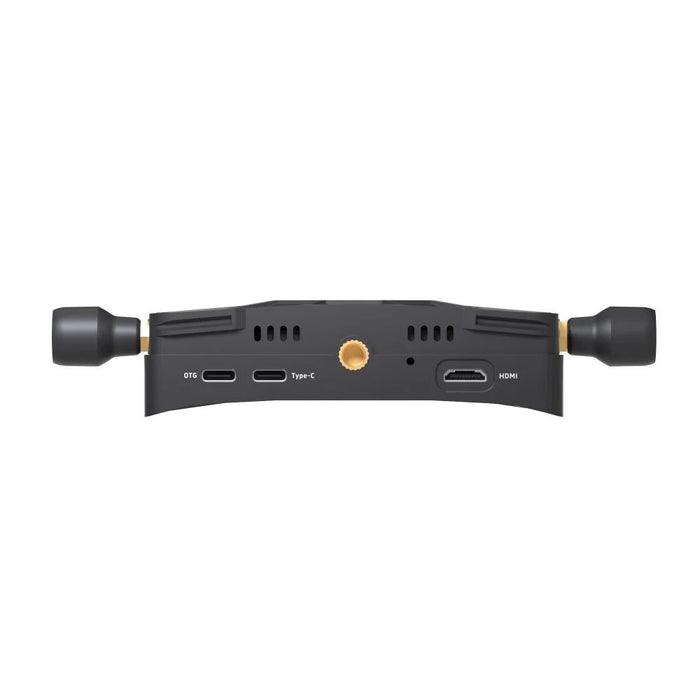

Interface Mini-HDMI, Micro-SD, DC 5.5x2.1mm, Type-C, OTG
Mini-HDMI Output 1080P 60fps / 720P 60fps
Power Input 9~30V (3~6S)
MicroSD Card Supports up to 256GB
Built-in Storage 32G (including system files)
System Ruby FPV / OpenIPC
Dimensions (L)110.0mm x (W)27.3mm x (H)46.0mm
Weight 122.0g (±1g) (antenna excluded)
Model Stick Antenna
Polarization Vertical Polarization(VP)
Frequency 5150~5850 MHz
Average Gain 2.5dBi
Standing Wave Ratio (SWR) <=2.0
Dimensions (R)4.8mm x (H)108.4mm
Weight 6.6g
Model Pagoda  Antenna
Polarization Left-Hand Circular Polarization（LHCP）
Frequency 5500~5900 MHz
Average Gain 2.5dBi
Standing Wave Ratio (SWR) <=2.0
Dimensions (R)8.0mm x (H)23.9mm
Weight 4.4g



Download the OpenIPC Manual here

Download the Ruby Manual here

Package Includes:

  • 1 x WiFiLink RX
  • 1 x XT60 to DC Power Cable
  • 1 x Mini HDMI to HDMI Cable
  • 1 Quick Start Guide
  • 1 x Warranty Card
