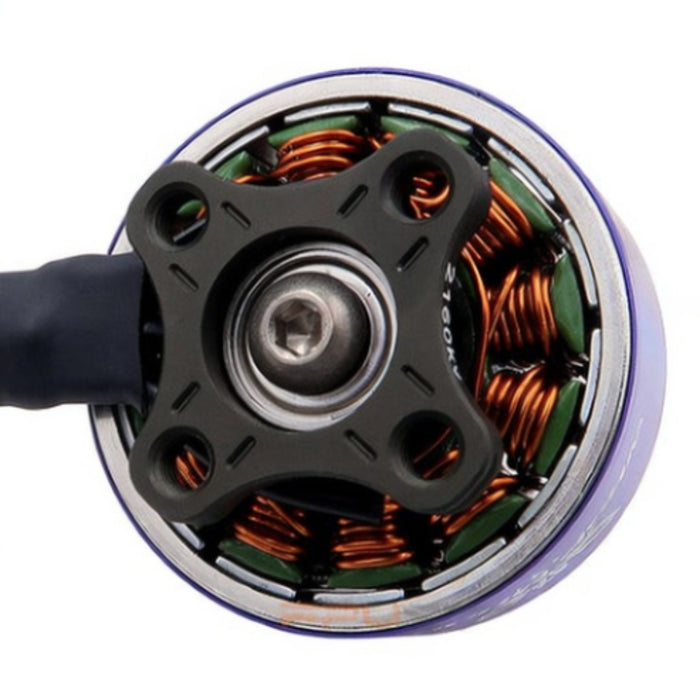

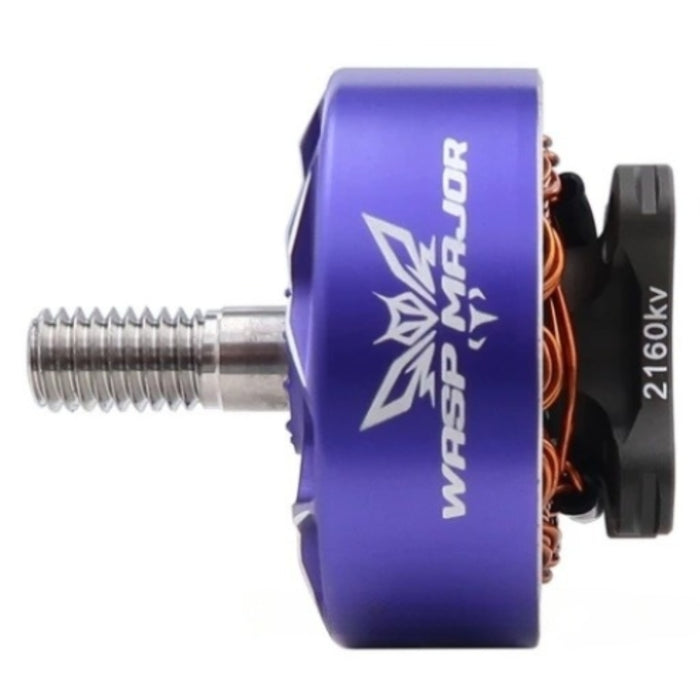

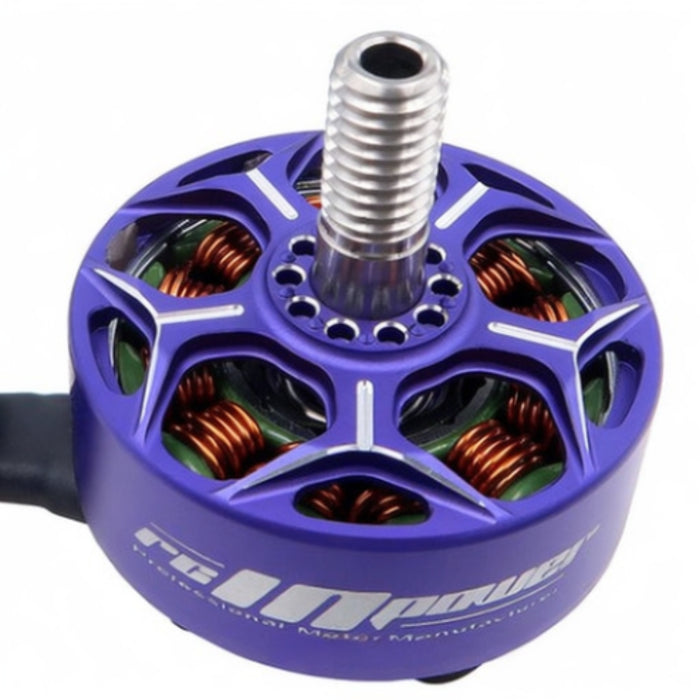

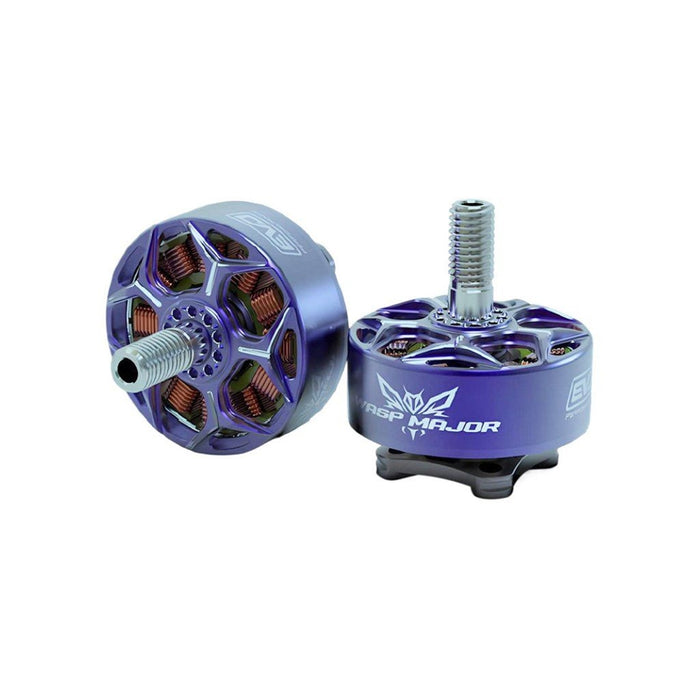

RCINPOWER WASP MAJOR EVO 22.6-6.6 - 2160KV

The RCINPOWER Wasp Major EVO 22.6-6.6 2160KV motor is a lightweight, high-performance brushless motor specifically engineered for 5-inch FPV racing and freestyle drones. Featuring an optimized stator dimension, single-strand high-temperature copper windings, and high-grade curved magnets, this motor delivers immediate throttle response, exceptional power-to-weight ratio, and thermal efficiency on 5S and 6S battery setups.

Also check out our other 22xx motors and all our RCINPOWER products!

Features:

• Optimized 22.6x6.6mm stator configuration balancing torque, high RPM, and efficiency

• High 2160KV rating tailored for explosive thrust and precise throttle control

• Ultra-lightweight structure designed to reduce rotational inertia and overall frame weight

• Curved N52H magnets for maximum magnetic flux and smooth power delivery

• Precision-machined 7075-T6 aluminum bell with reinforced base structure for high durability

• High-temperature single oxygen-free copper winding rated up to 260°C

• Active cooling airflow design ensuring consistent performance under heavy load

Specifications:

• Motor Dimensions: 27.5mm x 18.8mm

• Stator Diameter: 22.6mm

• Stator Height: 6.6mm

• KV Rating: 2160KV

• Configuration: 12N14P

• Input Voltage: 5S–6S LiPo

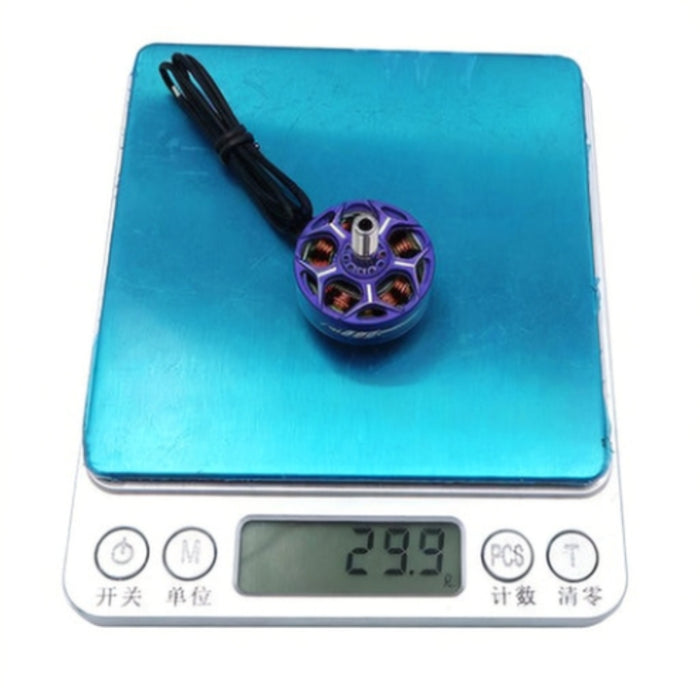

• Weight: 29.9g (with short wires)

• Shaft Diameter: 5mm hollow hardened shaft

• Mounting Pattern: 16x16mm (M3)

• Wire Gauge: 20AWG

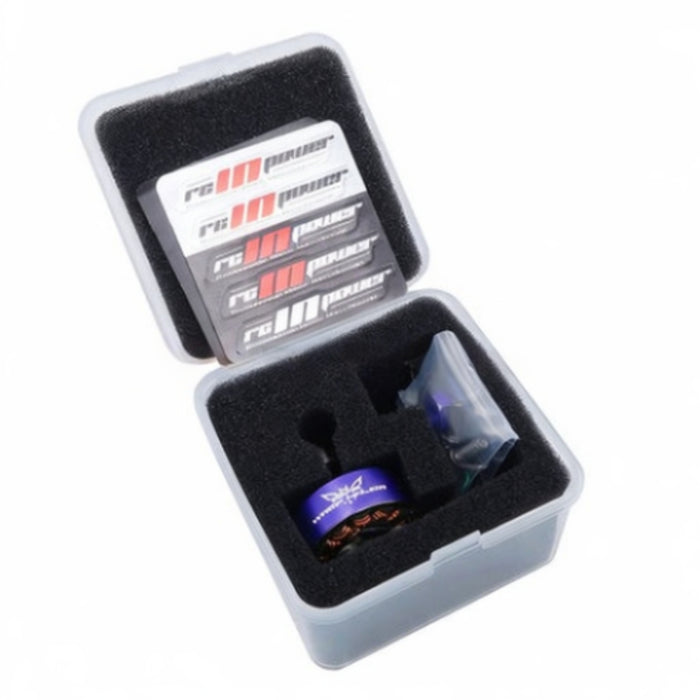

Package Includes:

• 1 x RCINPOWER Wasp Major EVO 22.6-6.6 2160KV Brushless Motor

• 1 x Hardware Screw Pack

• 1 x Aluminum Propeller Lock Nut
