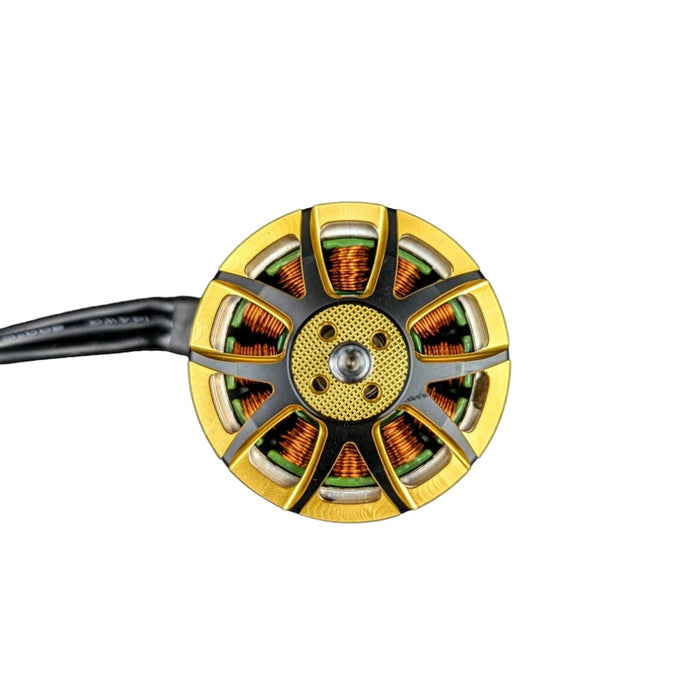

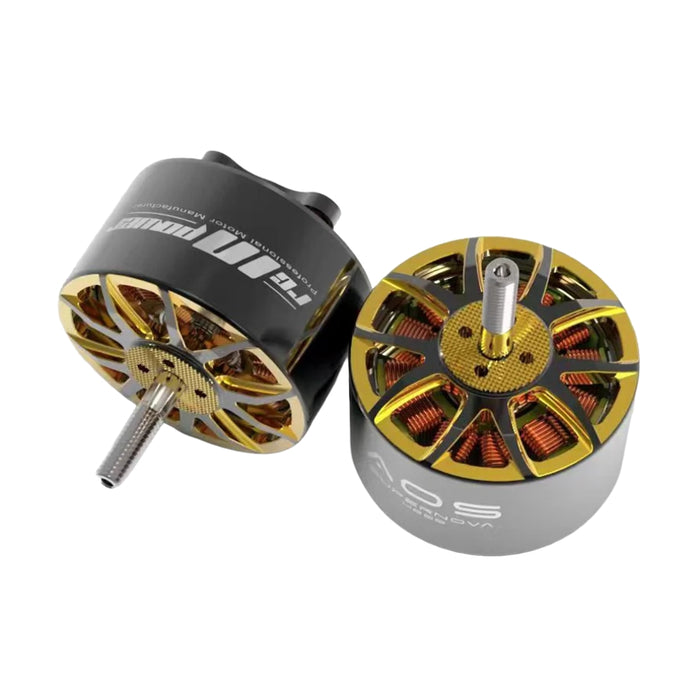

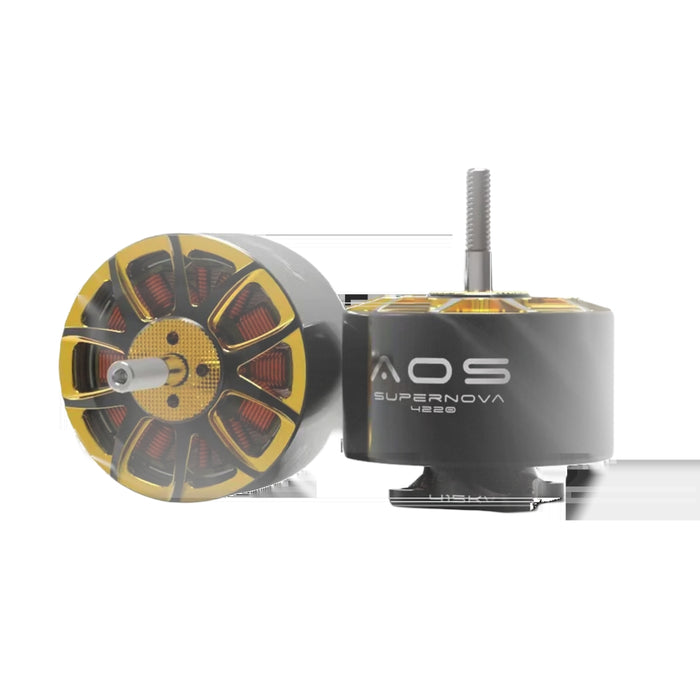

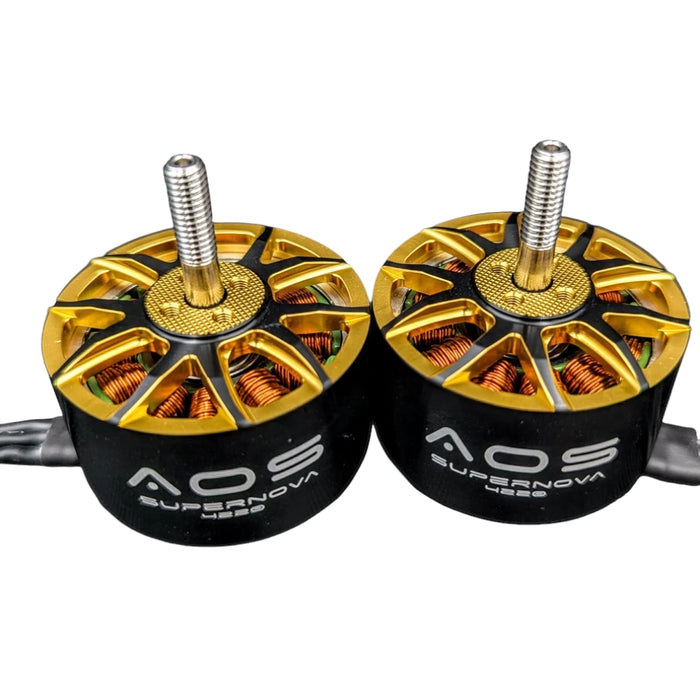

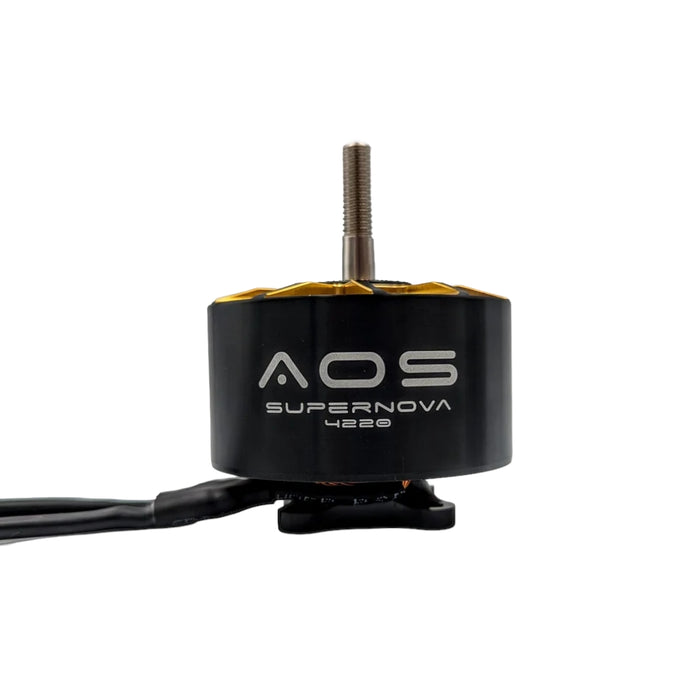

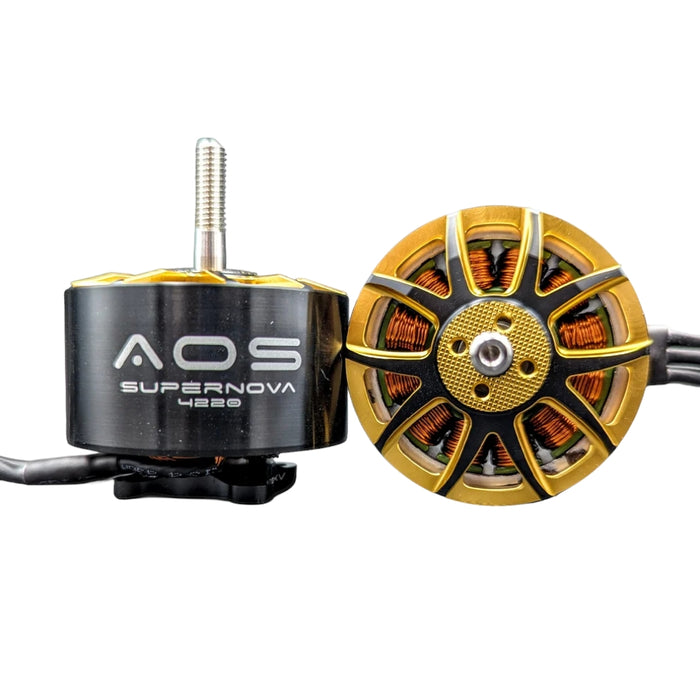

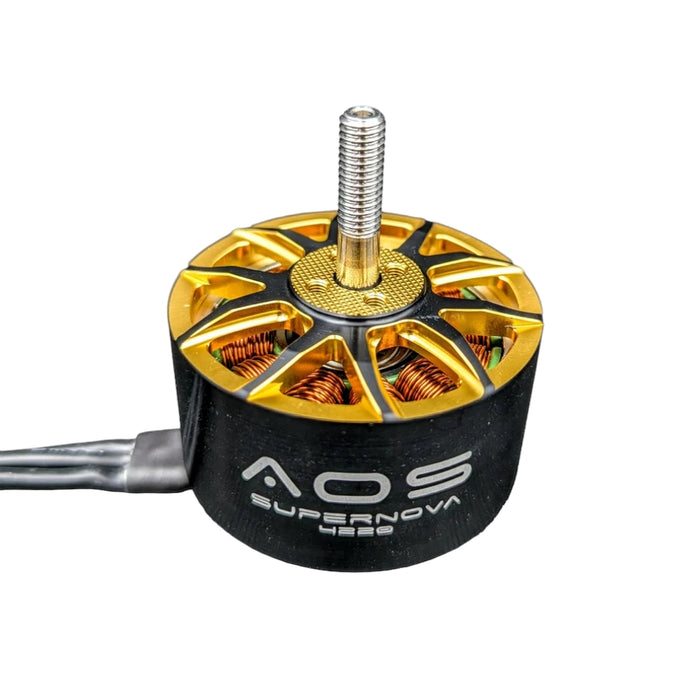

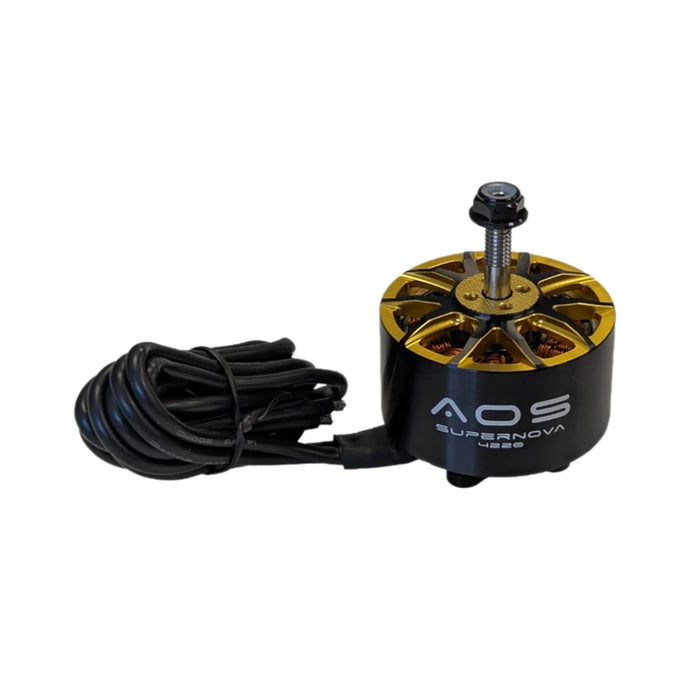

RCINPOWER AOS Supernova 4220 515KV Brushless FPV Drone Motor

The RCINPOWER AOS Supernova 4220 515KV is a high-power brushless motor designed by Chris Rosser at AOS RC specifically for heavy-lift platforms, large-scale cinematic rigs, and X-Class FPV drones running 13-inch and larger propellers. Manufactured in partnership with RCinPower, this high-KV variant utilizes advanced 3D transient field modeling and magnetic finite element simulations to maximize flux capacity, delivering massive torque, immediate throttle responsiveness, and sustained thermal performance.

Check out all our 42XX Motors and the rest of our RCINPOWER Collection!

Features:

• Purpose-built 4220 motor architecture engineered specifically for heavy-lift platforms and X-Class drone setups.

• High-KV option providing maximum RPM output and raw thrust power for large propellers.

• Reinforced bell structure designed to eliminate structural flex and maintain stability during high-speed operation.

• Advanced magnetic simulation design maximizing flux capacity to deliver class-leading torque and control.

• High-temperature enameled copper windings resistant to thermal fade under continuous heavy payload loads.

• Manufactured in collaboration with RCinPower for precise engineering tolerances and long-term durability.

Specifications:

• Stator Dimensions: 42 mm x 20 mm

• KV Rating: 515KV

• Configuration: 12N14P

• Input Voltage: 6S–8S LiPo

• Motor Dimensions: 52.5 mm x 40.9 mm

• Shaft Diameter: 6 mm (Hollow Shaft)

• Shaft Length: 23.7 mm

• Propeller Mounting: 6mm Shaft or 12x12mm M3 Bolt Pattern

• Motor Mounting Pattern: 30x30mm (M4)

• Weight: 330 g (with 3cm wire)

Package Includes:

• 1 x RCINPOWER AOS Supernova 4220 515KV Brushless Motor

• 1 x Mounting Hardware Screw Set
