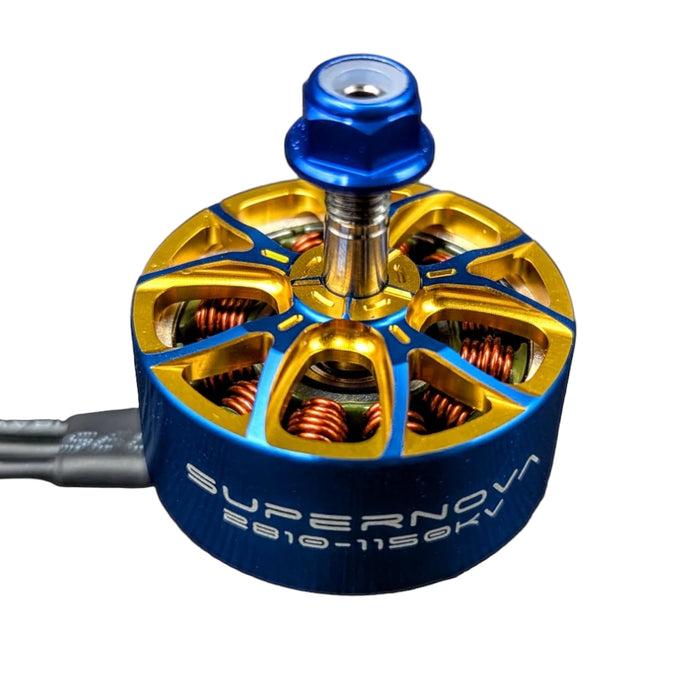

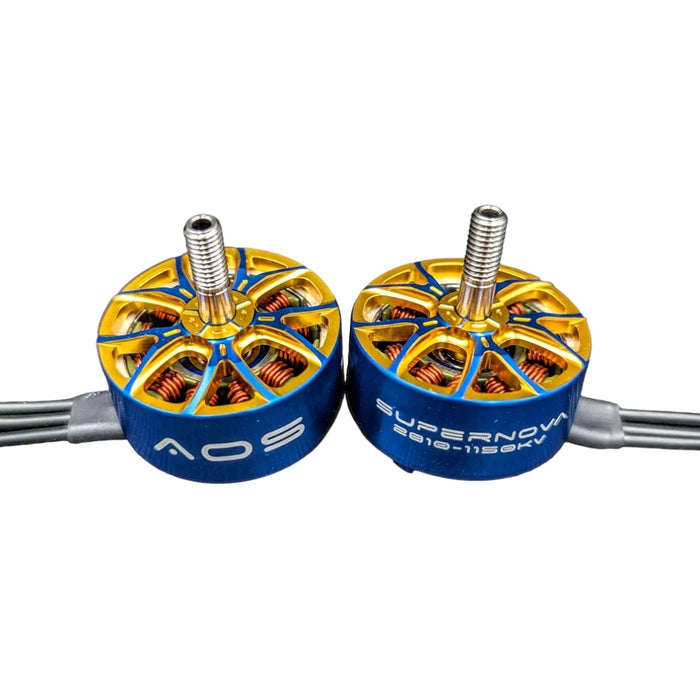

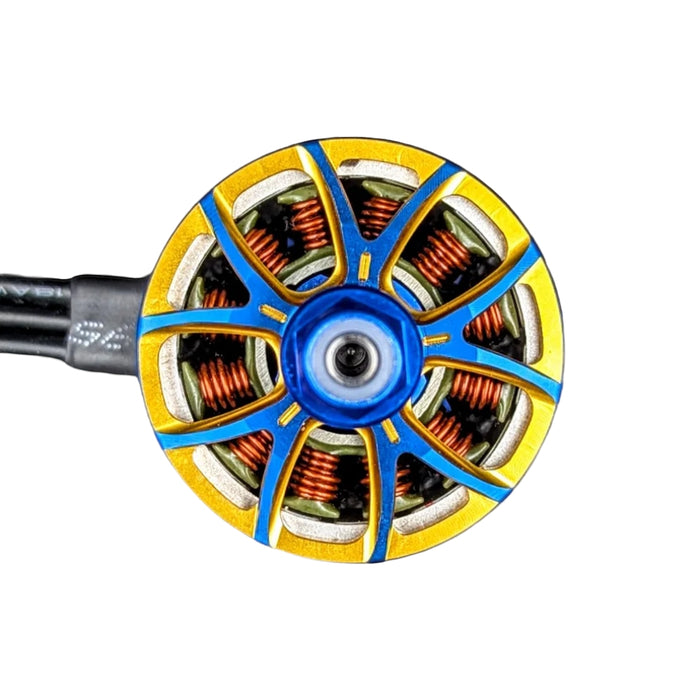

RCINPOWER AOS Supernova 2810 1150KV Brushless FPV Drone Motor

The RCINPOWER AOS Supernova 2810 1150KV is a high-performance brushless motor specifically engineered by Chris Rosser at AOS RC to handle the demanding loads and high rotational inertia of 8-inch and 9-inch FPV drones. Designed in partnership with RCinPower, this higher-KV variant utilizes advanced finite element magnetic simulations to deliver class-leading torque, rapid acceleration, and supreme thrust output across the throttle curve.

Check out all our 28XX Motors and the rest of our RCINPOWER Collection!

Features:

• Purpose-built design optimized specifically for heavy 8-inch and 9-inch propeller loads, delivering maximum torque and thrust response.

• Engineered to achieve up to 3.28 kg of peak thrust on 9-inch propellers.

• Superior throttle responsiveness with ultra-fast RPM acceleration and deceleration rates under heavy load.

• Class-leading torque output of 0.623 N·m at 5,000 RPM, outperforming standard 2810 and 2812 size motors.

• Premium 7075-T6 aluminum bell construction providing maximum structural rigidity and vibration dampening.

• High-temperature single-strand copper windings and N52H curved magnets for thermal stability and efficiency.

Specifications:

• Stator Diameter: 28 mm

• Stator Length: 10 mm

• KV Rating: 1150KV

• Configuration: 12N14P

• Magnet Type: N52H Arc

• Bell & Base Material: 7075-T6 Aluminum

• Input Voltage: 5S–6S LiPo

• Mounting Pattern: 19 x 19 mm (M3)

• Weight: 68.5 g (with wires)

Package Includes:

• 1 x RCINPOWER AOS Supernova 2810 1150KV Brushless Motor

• 1 x M5 Aluminum Flanged Locknut

• 1 x Mounting Hardware Screw Set
