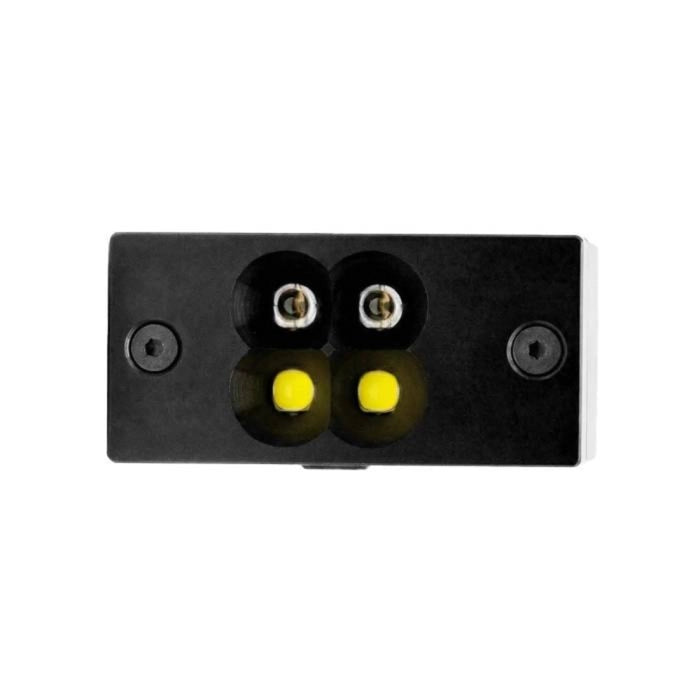

Patrios XBright 2-in-1 Tactical LED - NDAA

SKU 14498
Availability:
In stock
Original price $399.99 - Original price $399.99
Original price
$399.99
$399.99 - $399.99
Current price $399.99


The Patrios 2-in-1 XBright redefines compact illumination for demanding environments. Engineered and built in the USA, this precision LED module delivers exceptional dual-mode performance, providing powerful overt and infrared light output in one compact form factor. Designed for low or no-light navigation, target identification, and terminal guidance, the XBright eliminates the need for bulky thermal cameras while maintaining lightweight efficiency.

Check out all our Frame Parts and the rest of our Patrios Products!

Features:

  • Up to 1,294 lumens of overt illumination and 3,782 mW/sr of IR (850 nm) output
  • Useful IR range of 400m
  • Small footprint makes it ideal for micro-UGVs, robots, UAVs, and vehicle integrations
  • Supports multiple brightness settings, strobe and steady modes, and thermal throttling
  • Quick integration via JST-GH 3-pin connection
  • U.S. made

Specifications

  • Useful IR Range: 400m
  • Size: 18.5 × 36 × 21mm
  • Weight: 20g
  • Illumination:
    • IR (850 nm) 3,782 mW/sr
    • Overt 1,294 lumens
  • Viewing Angle:
    • Overt: 130°
    • IR: 50°
  • Input Voltage: 6V-30V, Recommend 12V-28V
  • Current Draw:
    • OFF: 5mA
    • ON: 20mA to 2A (depending on specified brightness)
    • STROBE: 2A to 3A, pulsed
  • Connection: JST-GH 3-Pin

Links

Package Includes:

  • 1 x Patrios XBright 2-in-1 Tactical LED
