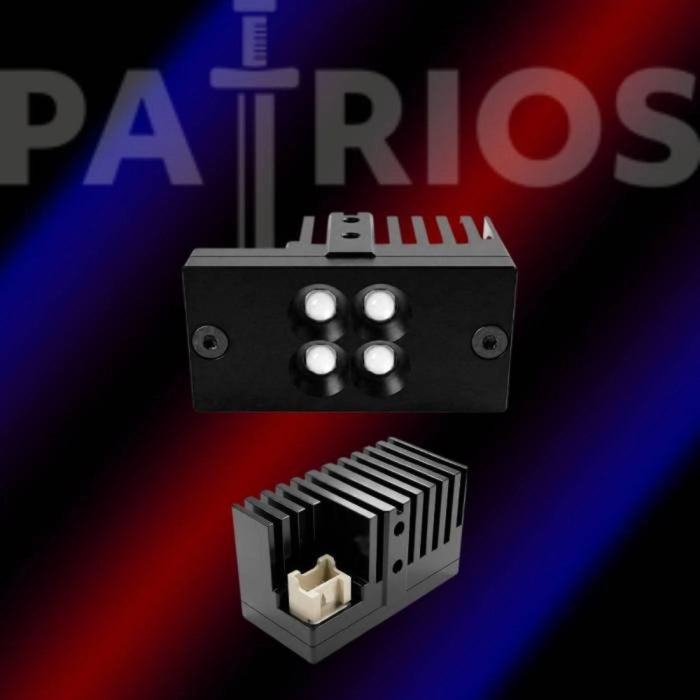

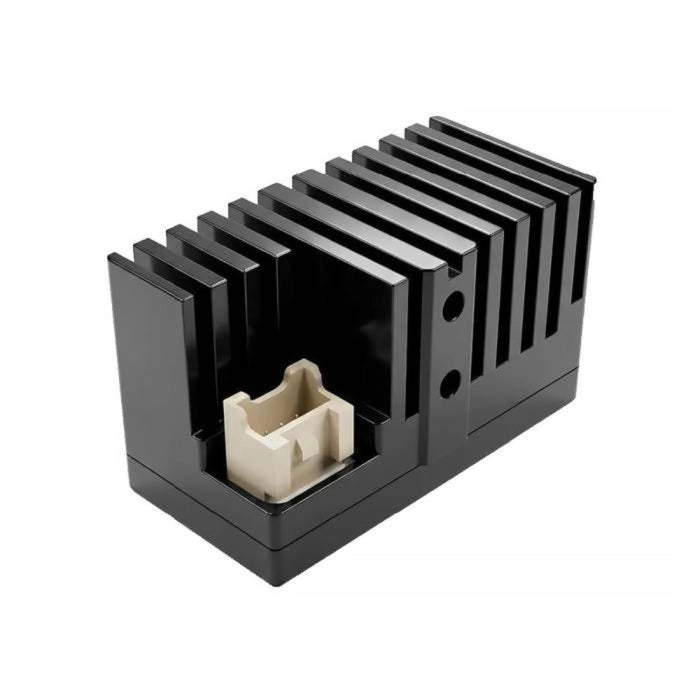

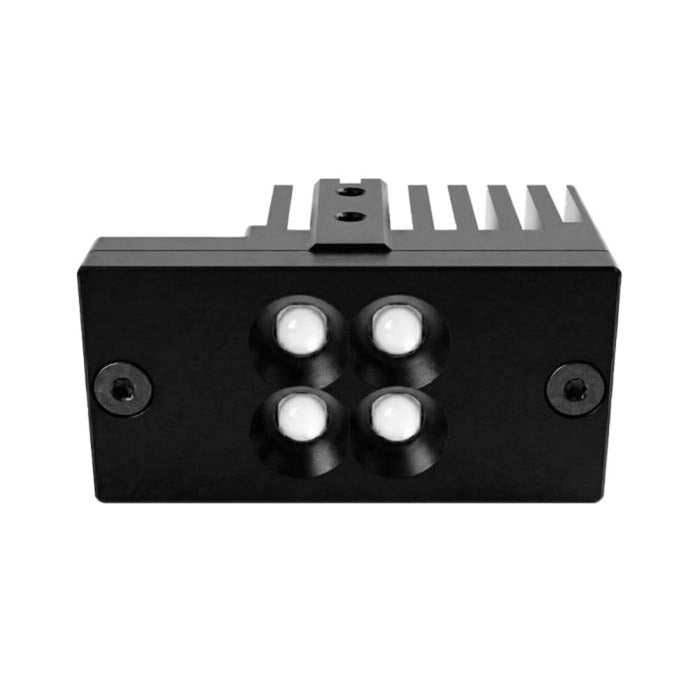

Patrios 4-IR MaxBright Tactical LED - NDAA

Patrios 4-IR MaxBright Tactical LED - NDAA

SKU 14499
Availability:
In stock
$399.99 - $399.99
$399.99
$399.99 - $399.99
$399.99


The Patrios 4-IR MaxBright Tactical LED sets a new benchmark for compact infrared illumination. Designed and manufactured in the USA, this high-output LED module delivers unmatched performance for low or no-light operations, including terrain navigation, target identification, and terminal guidance, eliminating the need for costly thermal imaging systems.

Check out all our Frame Parts and the rest of our Patrios Products!

Features:

  • Delivers up to 7,564 mW/sr of IR (850 nm) output
  • Useful illumination exceeds 450m
  • Same weight and only 2% larger than the original Tactical 2-in-1
  • Supports multiple brightness settings and thermal throttling
  • Quick integration via JST-PA 3-pin connection
  • U.S. made


Specifications

  • Useful IR Range: 450m+
  • Size: 18.5 × 36 × 21mm
  • Weight: 22g
  • Illumination:
    • IR (850 nm) 7,564 mW/sr
  • Viewing Angle:
    • IR: 50°
  • Input Voltage: 6V-28V, Recommend 12V-28V
  • Current Draw:
    • OFF: 5mA
    • ON: 20mA to 3A (depending on specified brightness)
    • STROBE: 2A to 3A, pulsed
  • Connection: JST-GH 3-Pin

Links

Package Includes

  • 1 x Patrios 4-IR MaxBright Tactical LED
