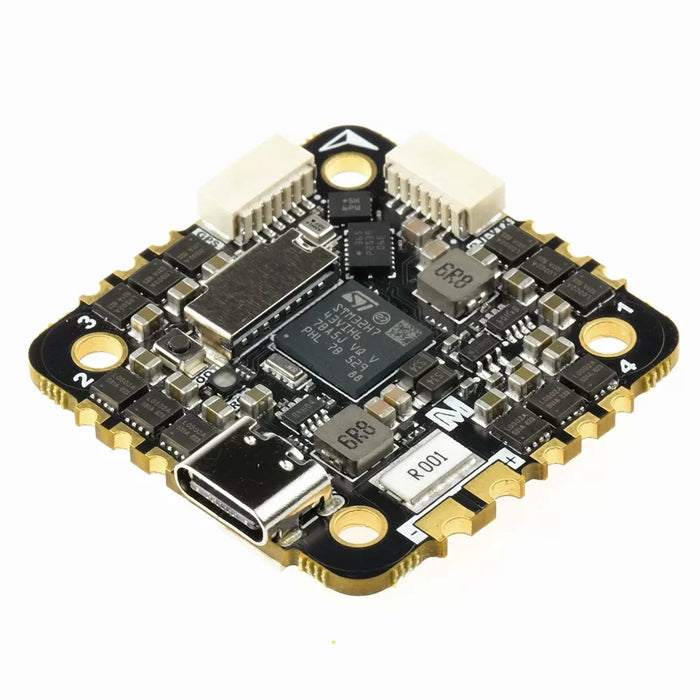

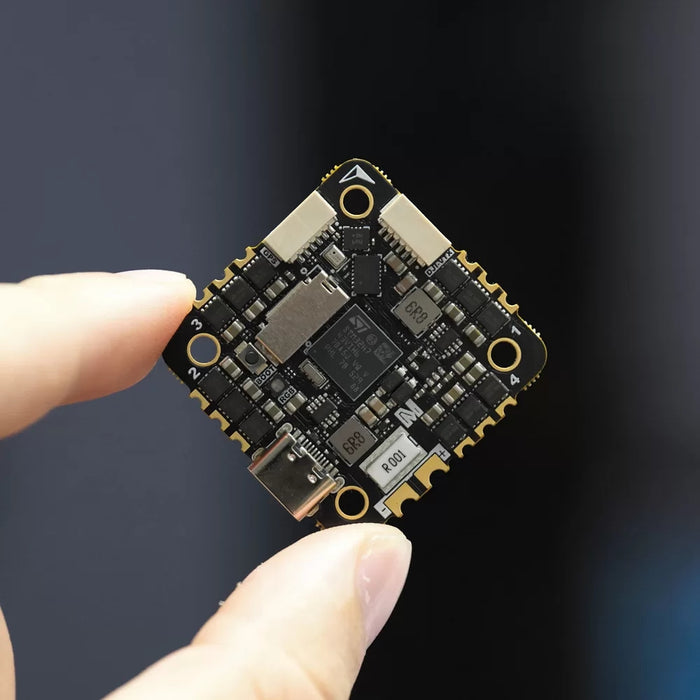

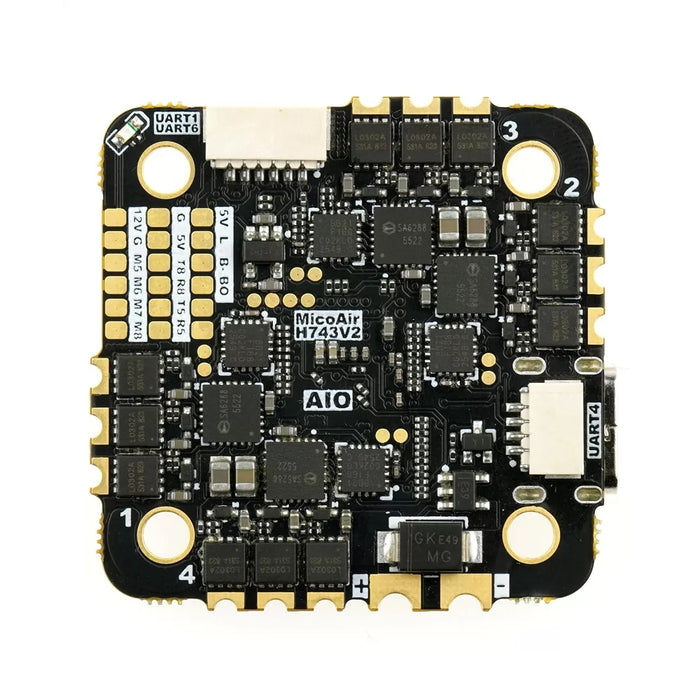

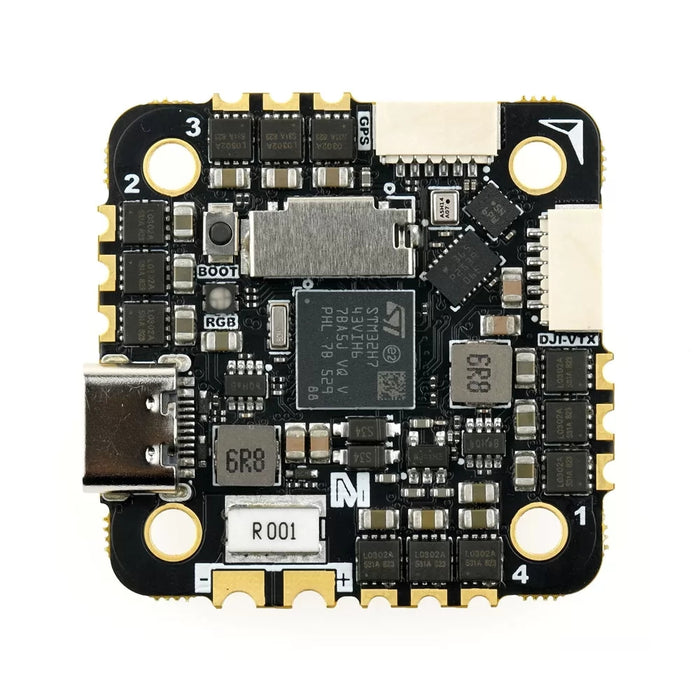

MicoAir H743 v2 AIO Flight Controller & 35A 2-6S 4in1 ESC - 25×25mm

The MicoAir743v2-AIO-35A is a high-performance all-in-one flight controller and ESC system engineered for advanced FPV racing, freestyle flying, and long-range missions. By combining a lightning-fast H743 processor with a 35A Bluejay electronic speed controller, it eliminates the need for complex wiring while minimizing electrical noise and saving critical build weight. Designed for ultimate versatility, it features dual IMUs and broad cross-platform firmware compatibility, making it the perfect core for demanding drone builds.

Check out all our Whoop Style AIO Flight Controllers and the rest of our MicoAir Products!

Features:

• High-speed STM32H743VIH6 microcontroller running at 480MHz with 2MB Flash memory

• Integrated 35A 4-in-1 ESC running Bluejay firmware (DShot300/DShot600 and Bi-DShot supported)

• Dual IMU configuration featuring BMI088 and BMI270 for enhanced flight stability

• Integrated SPL06 barometer for accurate altitude-hold performance

• Broad multi-platform firmware compatibility including Ardupilot, PX4, INAV, Skybrush, and Betaflight

• Extensive peripheral integration featuring 7 UARTs and 9 PWM outputs

• Dedicated 12V 2A BEC designed to power DJI O3, O4, and O4 Pro video transmitters

• Integrated MicroSD card slot for comprehensive blackbox data logging

• Onboard OSD support via MAX7456 driver with DisplayPort OSD available via the HD VTX connector

Specifications:

• MCU: STM32H743VIH6, 480MHz, 2MB Flash

• IMU: BMI088 + BMI270

• Barometer: SPL06

• OSD: AT7456E (Built-in) / DisplayPort supported

• UARTs: 7

• PWM Outputs: 9

• BEC 5V Output: 5V/2A

• BEC 12V Output: 12V/2A

• ESC Firmware: Bluejay 0.19.2

• ESC PWM Frequency: 48KHz

• ESC Continuous Current: 35A x 4 (Requires good cooling)

• Input Voltage: 2-6S LiPo Battery

• Mounting Pattern: 25.5 x 25.5mm, Φ3mm

• Weight: 10g

Package Includes:

• 1 x MicoAir743v2-AIO-35A Flight Controller & ESC
