MicoAir H743 V2 2-6S Flight Controller with Bluetooth and pre-loaded with Ardupilot - 30×30mm

MicoAir H743 V2 2-6S Flight Controller with Bluetooth and pre-loaded with Ardupilot - 30×30mm

SKU S2-14599
Availability:
in stock
$72.99 - $72.99
$72.99
$72.99 - $72.99
$72.99



Full compatibility with ArduPilot, PX4, INAV, and Betaflight firmwares.

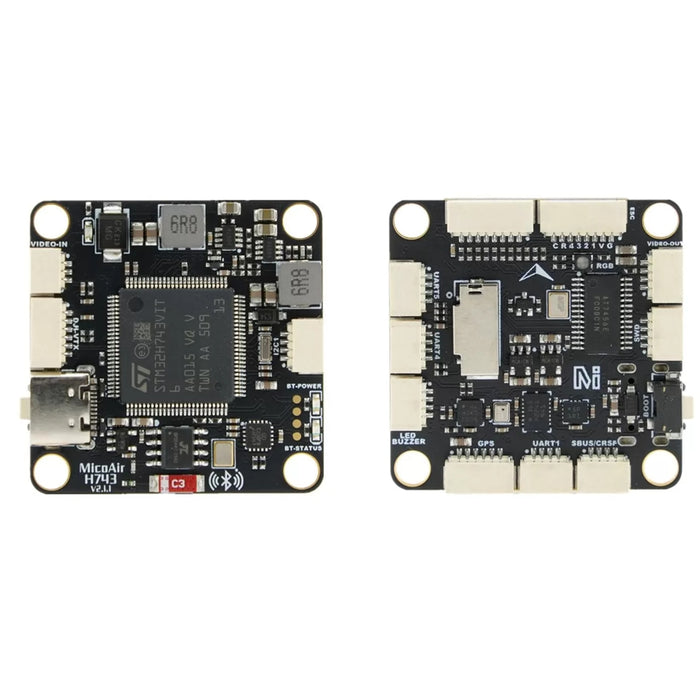

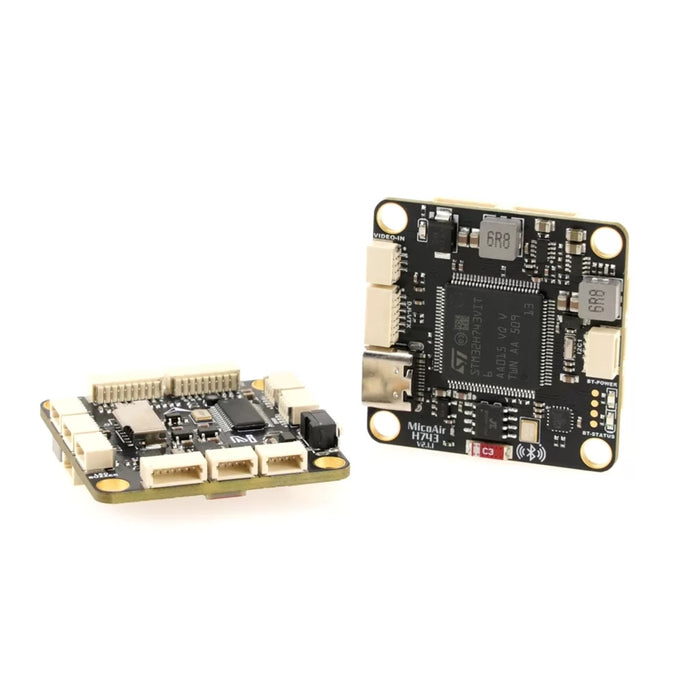

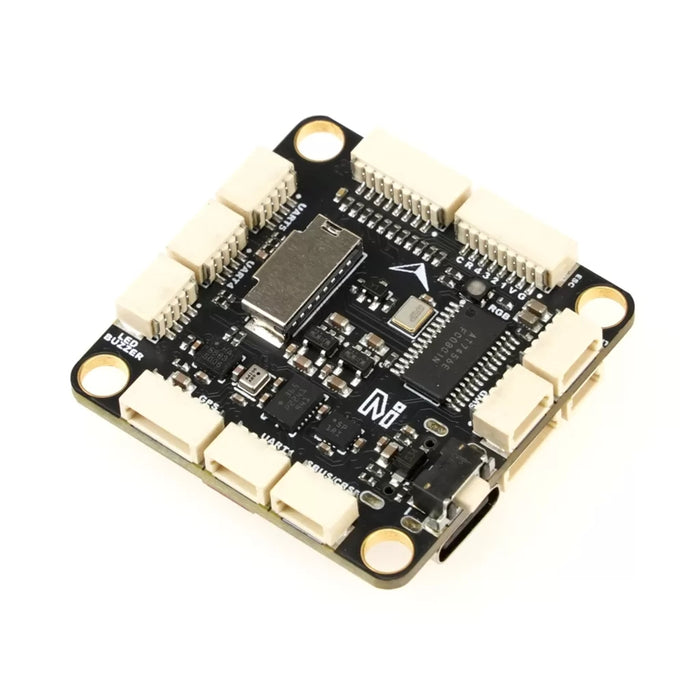

The MicoAir H743 V2 is a high-performance flight controller equipped with a high-speed STM32H743 processor, dual IMUs (BMI088 and BMI270), and integrated Bluetooth telemetry. Designed for advanced multirotor platforms, fixed-wing aircraft, and autonomous systems, featuring an array of 8 UARTs, 11 PWM outputs, dual BECs, and a dedicated HD VTX connector, this board provides extensive expansion options and solid hardware performance for demanding build requirements.

Check out all our 30x30mm Flight Controllers and the rest of our MicoAir Products!

Features:

  • High-speed 480MHz STM32H743 processor with 2MB flash memory for complex flight algorithms and logging functions

  • Dual onboard IMU setup utilizing BMI088 and BMI270 sensors for superior vibration isolation and noise filtration

  • Integrated Bluetooth module on UART8 for seamless wireless configuration via ground control software

  • Onboard QMC5883L compass and SPL06 barometer for precise position and altitude holding capabilities

  • Plug-and-play SH1.0-6P HD VTX connector supporting DJI O3 and O4 video transmission units

  • MicroSD card slot allowing full high-rate Blackbox data logging

  • Dual onboard BEC outputs providing stable power delivery at 5V 3A and 12V 3A for peripherals and video equipment



Specifications

  • MCU: STM32H743VIT6, 480MHz, 2MB Flash

  • IMU: BMI088 + BMI270

  • Barometer: SPL06

  • Compass: QMC5883L

  • OSD: AT7456E

  • Storage: MicroSD Card Slot

  • UART Ports: 8x UARTs

  • PWM Outputs: 11x PWM

  • I2C Ports: 1x I2C

  • SWD Interface: 1x SWD

  • ADC Channels: 2x ADC (Voltage & Current)

  • USB Interface: Type-C

  • HD VTX Port: SH1.0-6P (12V/GND/TX2/RX2/GND/COMP)

  • BEC Output: 5V 3A, 12V 3A

  • Input Voltage Range: 2-6S LiPo (6V – 27V)

  • Bluetooth: Integrated (UART8, 115200 baud)

  • Firmware Support: ArduPilot, PX4, INAV, Betaflight

  • Mounting Hole Pattern: 30.5 x 30.5mm (M4)

  • Outer Dimensions: 36 x 36 x 8 mm

  • Weight: 10g


UART Mapping (Ardupilot)
  • SERIAL0 -> USB
  • SERIAL1 -> UART1 (MAVLink2, DMA-enabled)
  • SERIAL2 -> UART2 (DisplayPort, DMA-enabled)
  • SERIAL3 -> UART3 (GPS, DMA-enabled)
  • SERIAL4 -> UART4 (MAVLink2, DMA-enabled)
  • SERIAL5 -> UART5 (DMA-enabled)
  • SERIAL6 -> UART6 (RCIN, DMA–enabled)
  • SERIAL7-> UART7 (ESC Telemetry, DMA-enabled)
  • SERIAL8 -> UART8 (DMA–enabled, connected to on board BlueTooth Telemetry)
UART Mapping (PX4)
  • ttyACM0->USB
  • ttyS0->TELEM1 -> UART1
  • ttyS1->GPS2 -> UART2
  • ttyS2->GPS1 -> UART3
  • ttyS3->TELEM2 -> UART4
  • ttyS4->TELEM3-> UART5
  • ttyS5->RC -> UART6
  • ttyS6->URT6 -> UART7
  • ttyS7->TELEM4/SERIAL4 -> UART8
RC Input (Ardupilot)

The UART6 is compatible with all ArduPilot supported receiver protocols.

  • PPM is not supported.
  • SBUS/DSM/SRXL connects to the RX6 pin.
  • FPort requires connection to TX6 . See FPort Receivers.
  • CRSF also requires a TX6 connection, in addition to RX6, and automatically provides telemetry.
  • SRXL2 requires a connection to TX6 and automatically provides telemetry. Set SERIAL6_OPTIONS to “4”.

Any UART can also be used for RC system connections in ArduPilot and is compatible with all protocols except PPM. See Radio Control Systems for details.

OSD Support (Ardupilot)

The MicoAir743v2 supports onboard OSD using OSD_TYPE 1 (MAX7456 driver). Simultaneously, DisplayPort OSD is available on the HD VTX connector, See below.

VTX Support

The SH1.0-6P connector supports a DJI Air Unit / HD VTX connection. Protocol defaults to DisplayPort. Pin 1 of the connector is 12v so be careful not to connect this to a peripheral requiring 5v.


PWM Output

The MicoAir743v2 supports up to 11 PWM outputs.

Channels 1-8 support DShot and bi-directional DShot.

(currently PX4&INAV not support BDShot function)

PWM output share grouped and every group must use the same output protocol:

1,2,3,4 are group 1

5,6 are group 2

7,8,11 are group 3

9,10 are group 4

Note: PWM11 is the “LED” pin. If this is configured for serial LED use then PWM 7 and 8 can only be used as serial LED also.

Battery Monitoring
The board has a internal voltage sensor and connections on the ESC connector for an external current sensor input.
The voltage sensor can handle up to 6S LiPo batteries.
The default battery parameters(for Ardupilot) are:
  • BATT_VOLT_PIN 10
  • BATT_CURR_PIN 11
  • BATT_VOLT_MULT 21.2
  • BATT_CURR_SCALE 40.2

Compass

The MicoAir743v2 has a built-in compass sensor (QMC5883L), and you can also attach an external compass using I2C on the SDA and SCL connector.


Physical

  • Mounting: 30.5 x 30.5mm, Φ4mm
  • Dimensions: 36 x 36 x 8 mm
  • Weight: 10g

Bluetooth Connection tutorial
