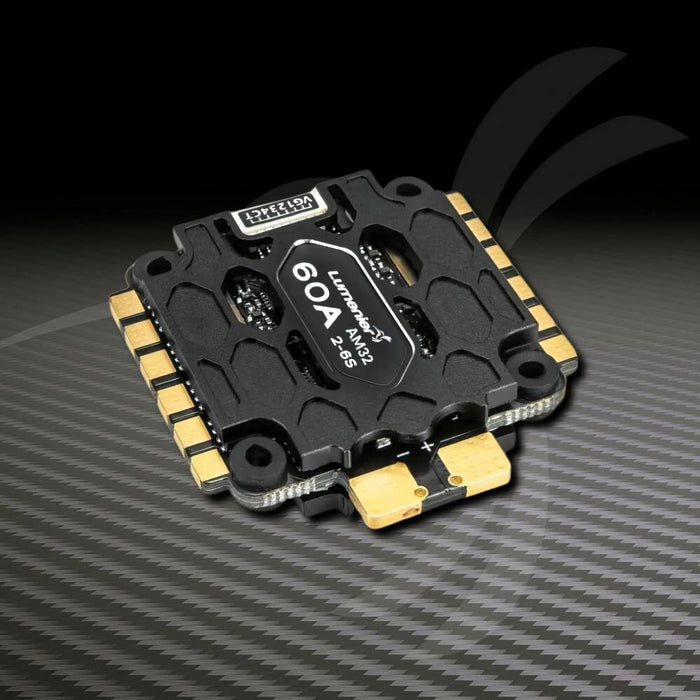

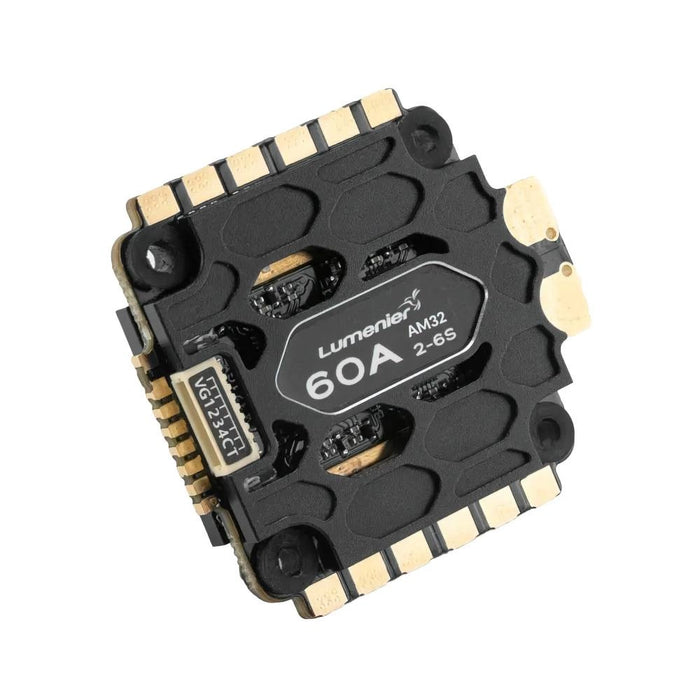

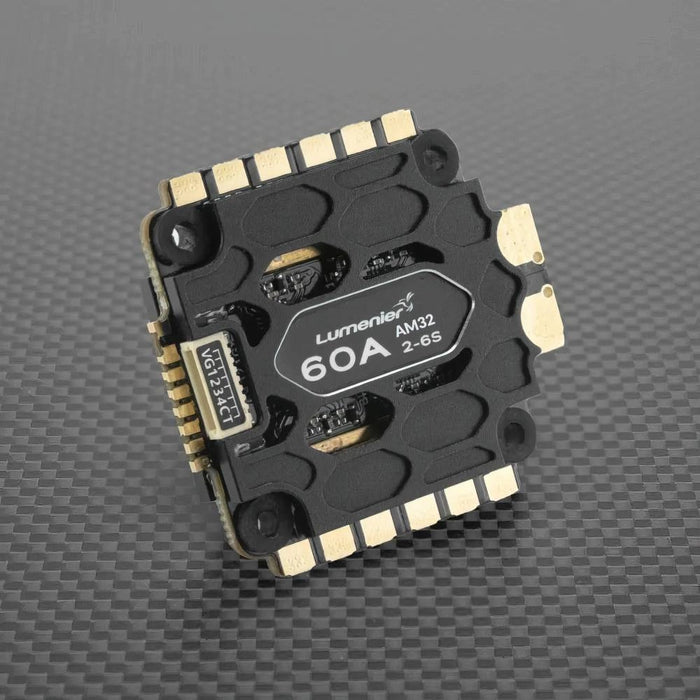

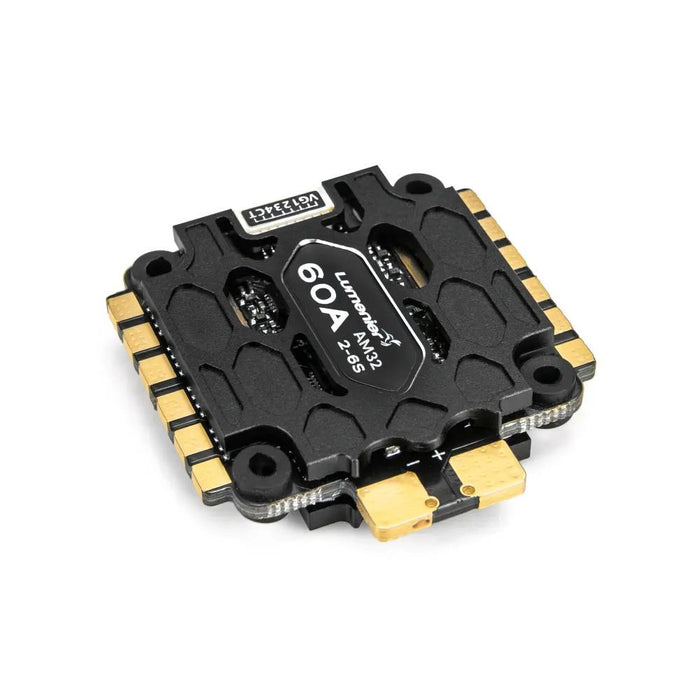

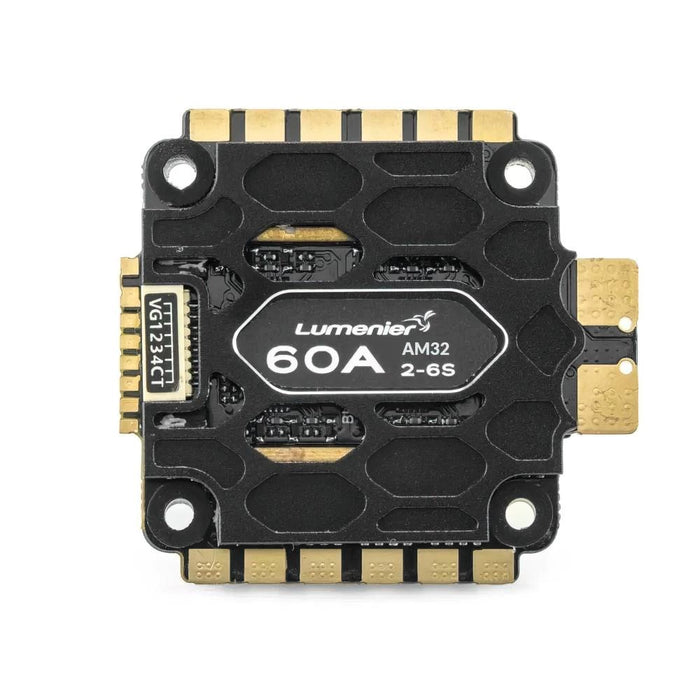

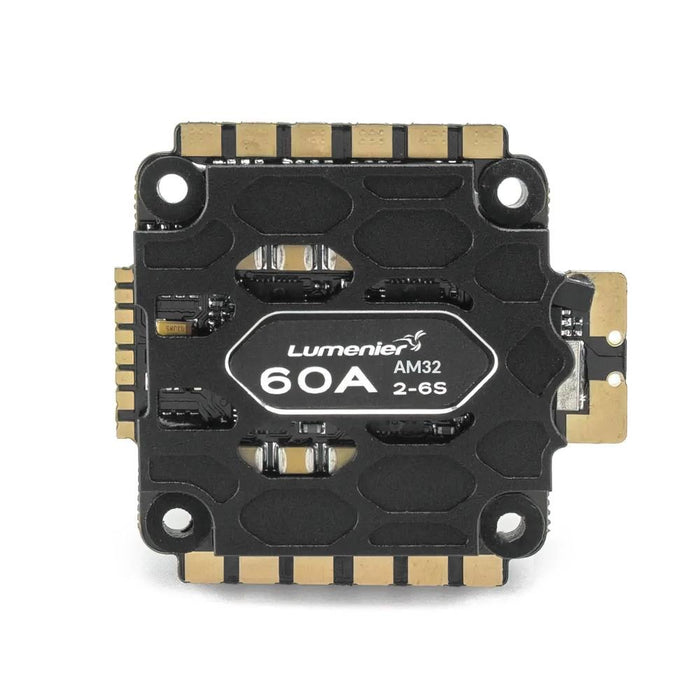

Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC - 30x30mm

Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC - 30x30mm

SKU U3-14431
Availability:
in stock
$110.49 - $110.49
$110.49
$110.49 - $110.49
$110.49


The Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC delivers maximum power and efficiency for Cinelifters, large drones, and high-speed racing builds, supporting up to 60A per channel on 2-6S LiPo batteries. Featuring the latest AM32 firmware, it offers ultra-fast processing, lower latency, and real-time telemetry for advanced flight control. Its heavy-duty 2mm copper PCB and dual aluminum heatsinks ensure superior heat dissipation, making it the ultimate choice for high-performance drones.

Check out all our 30x30mm Electronic Speed Controllers and the rest of our Lumenier Products!

Features:

  • Supports DSHOT 1200/600, Proshot, Oneshot125 (125-250 µs), Oneshot42 (41.7-83.3 µs), and Multishot (5-25 µs) with Auto-Detection
  • Synchronous Rectification Technology for Improved Efficiency and Damped Light
  • Powerful Regenerative Braking/Active Braking
  • Dual heatsinks for Improved Cooling
  • Programmable PWM Frequency
  • 2-6S LiPo Battery Compatible
  • RGB LED Control
  • Adaptive Timing
  • ESC Telemetry
  • Lightweight
  • AM32


Specifications:

  • Dimensions: 43 x 46 x 9 mm (including heatsink)
  • Mounting Holes: 30.5 x 30.5 mm
  • Constant Current: 60 Amps
  • Burst Current: 100 Amps
  • Input: 2-6S LiPo
  • Weight: 27 g

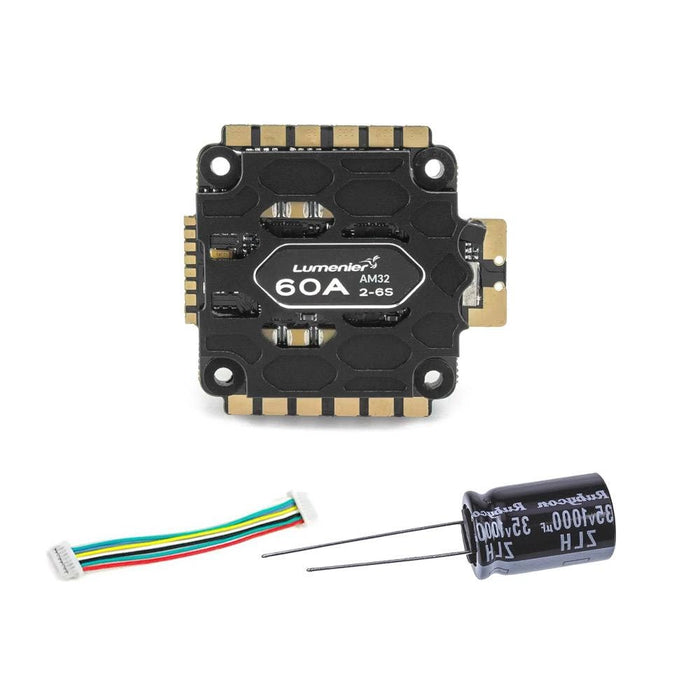

Package Includes

  • 1x Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC - 30x30
  • 1x 8pin to 8pin JST-SH cable
  • 1x 35V 1000uF Capacitor
