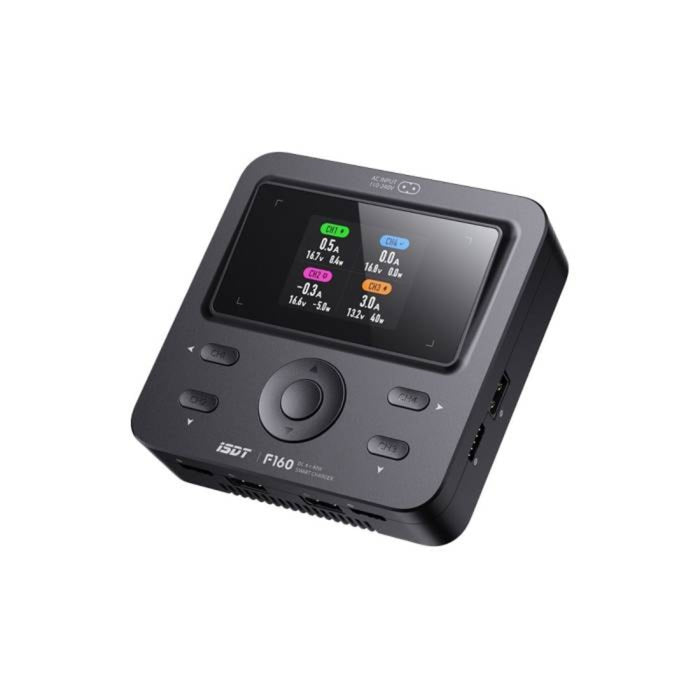

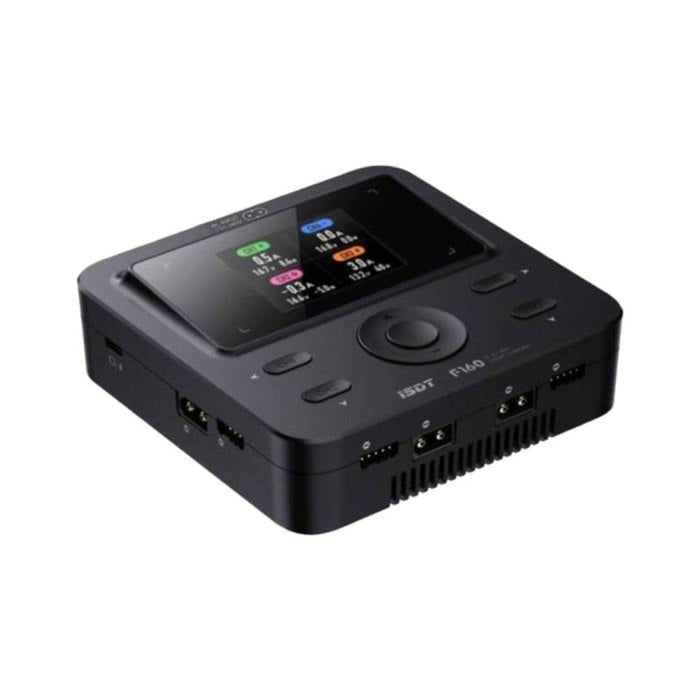

ISDT F160 40W 4-Channel DC Smart Charger

ISDT F160 40W 4-Channel DC Smart Charger

SKU Q8-14567
Availability:
in stock
$99.99 - $99.99
$99.99
$99.99 - $99.99
$99.99



The ISDT F160 is a compact, high-efficiency powerhouse that delivers fast, balanced, and intelligent charging across four independent channels. Powered by advanced Gallium Nitride (GaN) technology, this smart quad charger packs extreme power density into a desktop-friendly form factor. It is fully programmable via Bluetooth using the ISD Link app, allowing users to effortlessly customize parameters, track live performance, and manage multiple battery types simultaneously.

Check out all our Chargers and the rest of our ISDT Products!













Features

  • Compact and Lightweight Design
  • Multiple Safety Protections
  • Precise Balance Charging
  • 40W Max Charge Power
  • Supports 1-4S Batteries
  • Easy-to-Use Interface
  • USB Charging
  • Connect with ISDLink App
  • XT60 Output


Specifications

  • Model No.: F160
  • Input Voltage Range: 200-240V~ 50Hz 2.5A (EU); 110-130V~ 60Hz 4A (US)
  • Output Voltage: Channel 1: 5-18.5V; Channels 2-4: 2.5-18.5V
  • Charging Current: 0.1~5.0A ×4
  • Discharging Current: 0.1~1.0A ×4
  • Maximum Charging Power:    40W ×4
  • Maximum Discharging Power: 5W ×4
  • Supported Battery Types and Cell Counts: LiFe, Li-Ion, LiPo, LiHv, ULiHv 1~4S | Pb 2~7S | NiCd/MH 4~12S
  • Balancing Current: 0.5A / Cell (Max)
  • USB Output Power: 5V/2A (only when Channel 1 is idle)
  • Operating Temperature: 0℃~40℃
  • Storage Temperature: -20℃~60℃
  • Dimensions: 130×128×41mm
  • Weight: 380g


Package Includes

  • 1x iSDT F160 40W 4-Channel DC Smart Charger
