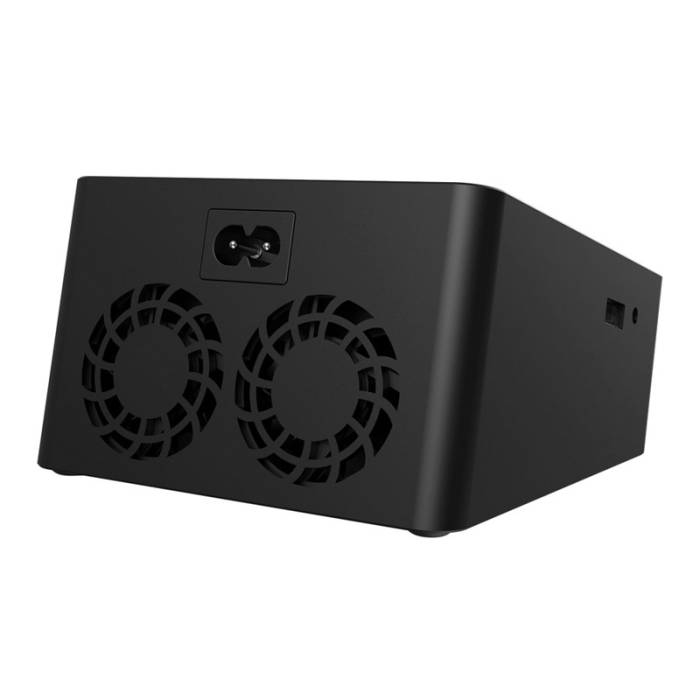

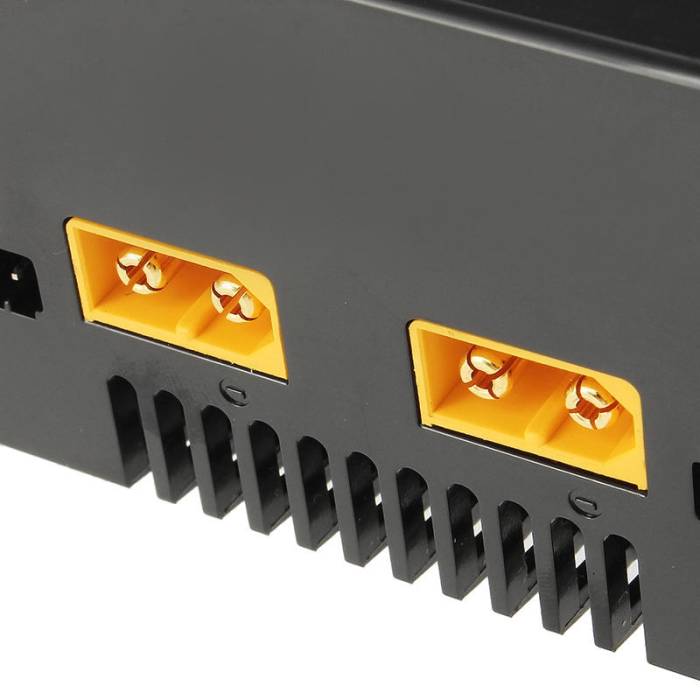

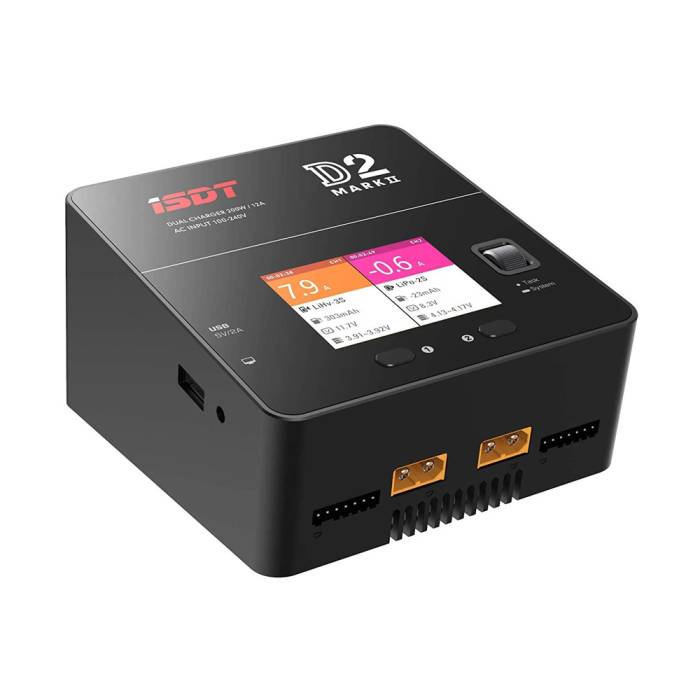

ISDT D2 Mark II 200W 20A AC Dual Channel Smart Balance Charger

The iSDT D2 has been upgraded to the Mark II! This is a 200W 20A AC Dual-channel output smart balance charger.

V2 CHANGELOG

Dual-channel Output

• Supports up to 6S balance charging&discharging with 2 output ports.
• Easily charge your mobile phone or other electronic products.
• 5V/2A USB output power from the side of the unit.
• No Interference.

Check out all our Chargers and the rest of our ISDT Products!

Upgraded Hardware

• Improvement of system stability

Added Functions

• More language options
• Parallel Charging
• DC power (CH1)
• Dual-task
• Themes

VIDEO: iSDT D2 MARK II Charger

Features

• Industrial level power management
• 200W Dual-channel Output
• Many Languages Available
• scOs Smart Charging
• Dual fan cool system
• Wild Range AC Input
• No interference

Specifications

• Supported Battery Type:
• LiFe/Lilon/LiPo/LiHv (1-6S)
• NiMH/Cd(1-16S)
• Pb(1-12S)
• Display: 2.4" 320×240 IPS LCD
• Operating Temperature: 0-40°C
• Storage Temperature: -20-60°C
• Max Discharge Capacity: 5W*2
• Discharge Current: 0.1-3.0A*2
• Dimensions: 120x108x70 mm
• Charge Current: 0.1-12.0A*2
• Max Charge Capacity: 200W
• Balancing Current: 1A/cell*2
• Input Voltage: AC 100-240V
• Balance Cells: 2-6S*2
• Weight: 510g

Manual

• iSDT D2 Mark II

Package Includes

• 1x ISDT D2 Mark II Charger
• 1x AC Input Cable
