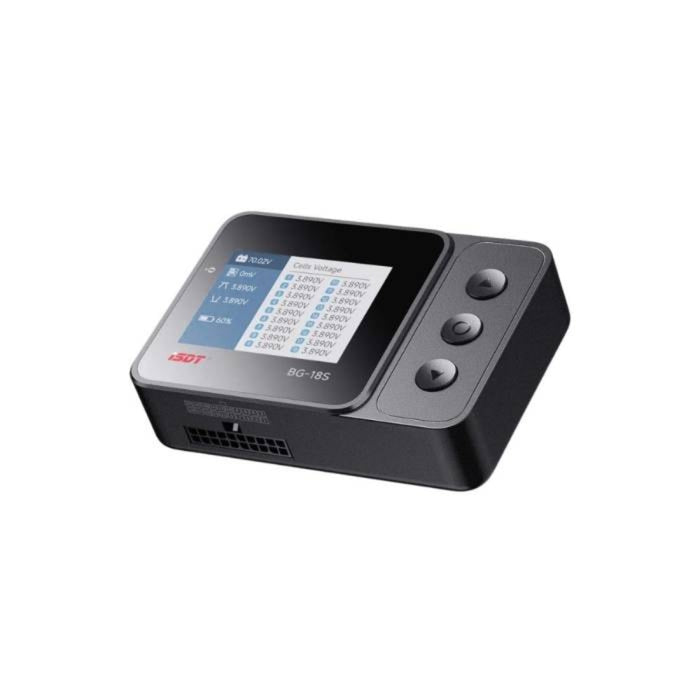

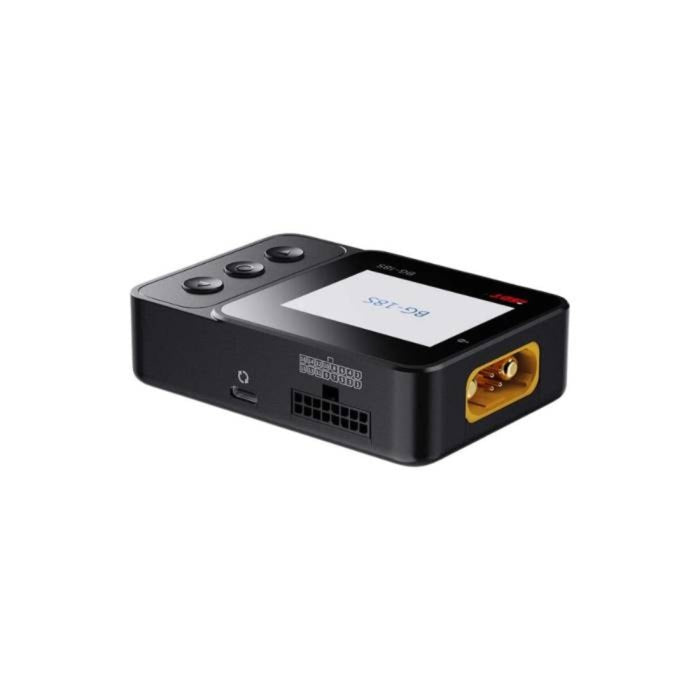

ISDT BG-18S Battery Meter, LCD Display Digital Battery Capacity Checker and Balancer for LiFe, LiPo, LiHv, ULiHv 12-18S

ISDT BG-18S Battery Meter, LCD Display Digital Battery Capacity Checker and Balancer for LiFe, LiPo, LiHv, ULiHv 12-18S

SKU G3-14565
Availability:
in stock
$59.99 - $59.99
$59.99
$59.99 - $59.99
$59.99


All batteries & products which include batteries must be shipped by a ground shipping method (ie. USPS Ground Advantage or UPS Ground). We are unable to ship batteries outside the United States.


The ISDT BG-18S is a premium, high-voltage capable smart battery checker specifically engineered to monitor massive multi-cell lithium packs. Featuring unmatched adaptation that handles configurations from 4S all the way up to 18S, it gives commercial UAV operators, RC pilots, and technicians a portable diagnostic tool for high-energy systems. Built around a high-precision differential chip and a vibrant 260K color IPS display, it reads total pack metrics and individual cell variations instantly to guarantee absolute health monitoring in the field without needing a bench charger.

Check out all our Battery Checkers and the rest of our ISDT Products!

Features

  • Measures total and individual cell voltages from balance ports.
  • Large 2.4″ color LCD for clear readouts.
  • Supports common lithium pack types (LiPo, LiHv, LiFe, ULiHv).
  • Works over a wide voltage range (DC 10–90 V).
  • USB-C port for firmware updates.

Specifications

  • Working voltage: DC 10–90 V
  • Battery support: LiPo, LiHv, LiFe, ULiHv
  • Balance port range: 1.5 V–5 V per cell
  • Voltage accuracy: ±0.005 V @ 4.2 V
  • Display: 2.4″ 320×240 IPS LCD
  • Size: ~102 × 70 × 27 mm
  • Weight: ~121 g
  • Temp range: 0 °C–40 °C operating, −20 °C–60 °C storage

Package Includes

  • 1x iSDT BG-18S Battery Checker

    Battery Disclaimer:

    Li-Po and Li-Ion batteries must be cared for properly when stored, and NEVER charged, balanced, or discharged unattended.
    ALWAYS be in the same room within line of sight of charging or discharging batteries.
    NEVER charge or discharge batteries on a flammable surface.
    Failure to follow these instructions may result in fire, personal injury, and/or property damage.
    By purchasing this battery, you agree that Pyrodrone and the battery manufacturer are in no way responsible for consumer battery charging and care, or any of the risks associated with Li-Pos or Li-Ions.
