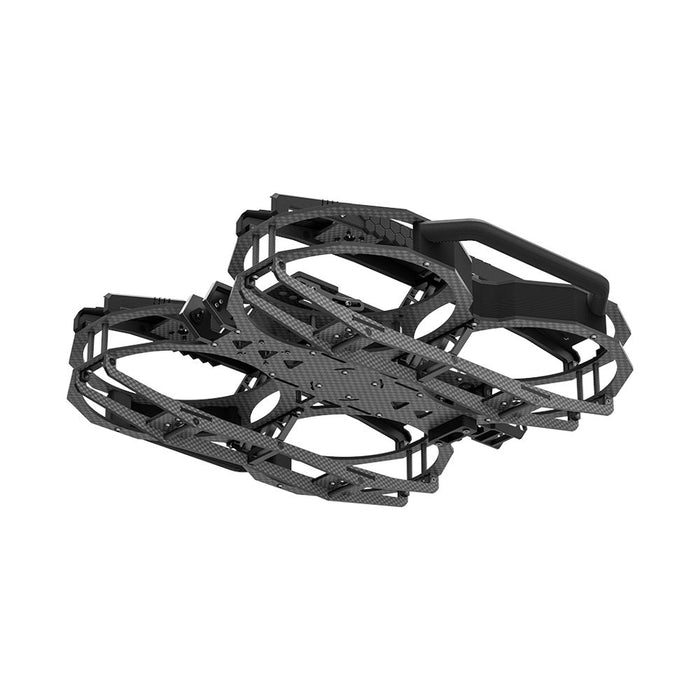

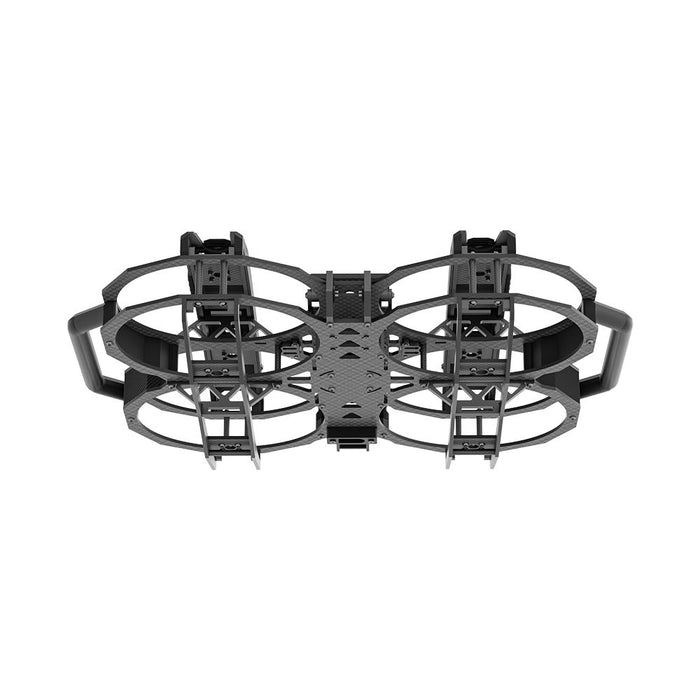

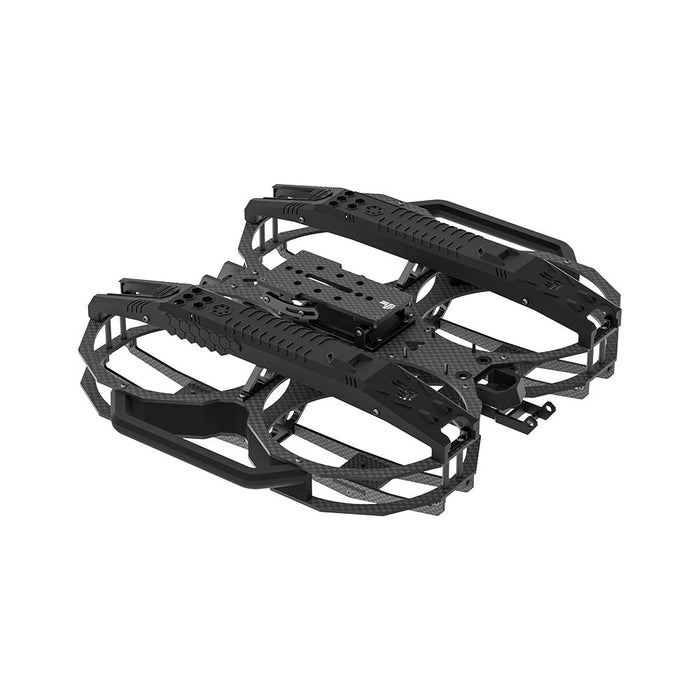

Proxima stands as the latest innovation from the collaborative efforts of 2RAW & IFLIGHT Cinema range, boasting a compact 6-inch x8 form factor. This cutting-edge product is tailored to accommodate box cinema cameras such as the RED Komodo. With its unique track design, meticulously engineered to minimize vertical height while ensuring the weight distribution remains centralized. This configuration not only enhances manoeuvrability but also facilitates navigation through confined spaces. Furthermore, Proxima's fully shielded props mitigate the risk of inadvertent contact during close-proximity filming, making it an ideal choice for capturing daring cinematic shots.
Check Out all our Cinelifters and related Accessories as well as the rest of our IFlight Products!
Recommended Props: GEMFAN 6*4.5*3 propellers / HQProp D6x4.5x3
Recommended Battery: Gens Ace 5500mAh 6s 22.2V 60C Long Range/Cinelifter Lipo
Features:
Proxima implements a distinctive track motor mount system, strategically designed to achieve a closer alignment between the center of gravity and the center of mass. This innovation not only enhances maneuverability but also contributes to the compactness of the drone. Employing precision-engineered Aluminum CNC Truss structures, the mount ensures robust support for the motors across all axes.
Crafted from CNC Aluminum and ultra-light carbon materials, the camera mount on Proxima facilitates seamless camera adjustments, catering to the dynamic requirements of film sets. Additionally, the mount features a vibration isolation rubber plate, effectively dampening high-frequency vibrations between the drone and the camera, thereby ensuring optimal filming conditions.
In line with the hallmark quality of 2RAW products, Proxima boasts a MultiJet fused shell that runs along its tracks. Not only does this shell house the LED system, but it also conceals cabling, imparting a polished and professional aesthetic essential for client-facing applications.
Reliability is paramount, especially in scenarios where failure is not an option. Proxima incorporates a bespoke electronics package, engineered for simplicity and reliability. Utilizing state-of-the-art chips and advanced electrical noise filtration, it delivers unparalleled performance. Moreover, a dedicated shielded UBEC with reverse voltage and spike protection powers the cinema camera and facilitates video feed transmission directly from the drone, minimizing risks.
Proxima's fully shielded propellers provide comprehensive protection from all directions, ensuring safe operation around delicate subjects. Even in the event of a collision, the risk of causing serious injury is significantly mitigated compared to traditional open-prop drones.
Specifications:
- Product Name: Proxima Cinelifter Frame
- Wheelbase: 262mm
- Frame Dimension: L200*W170*H112 mm
- Arm Thickness: 3mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 3mm
- Max Flight Stack Height: 28mm
- Max VTX Height: 28mm
- Flight controller Mounting: 30.5*30.5/Φ3mm
- VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ1.6mm
- Motor Mounting: 19*19/Φ3mm
- Weight: 1095g
- Recommend Motor: 28xx Motor
Package Includes:
- 1 x Proxima Frame Kit
- 1 x TPU Set
- 4 x Battery Anti-slip pads
- 1 x Screw Bag
- 1 x XT90E-Male Plug
- 1 x XT30U-Female Plug
- 1 x XT60 Male to XT30 Female Adapter Wire
- 4 x Lipo Strap 20*300mm
- 2 x Lipo Strap 20*400mm
- 2 x Lipo Strap 20*500mm
Note : Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
