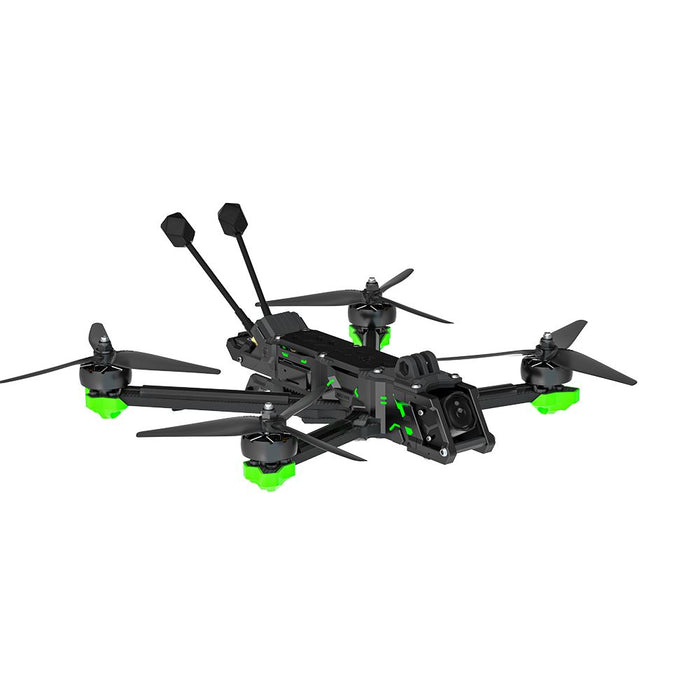

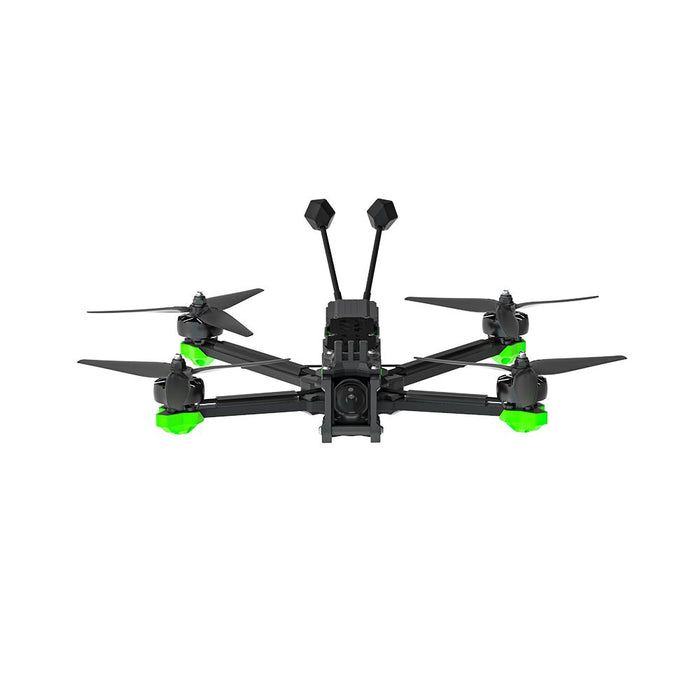

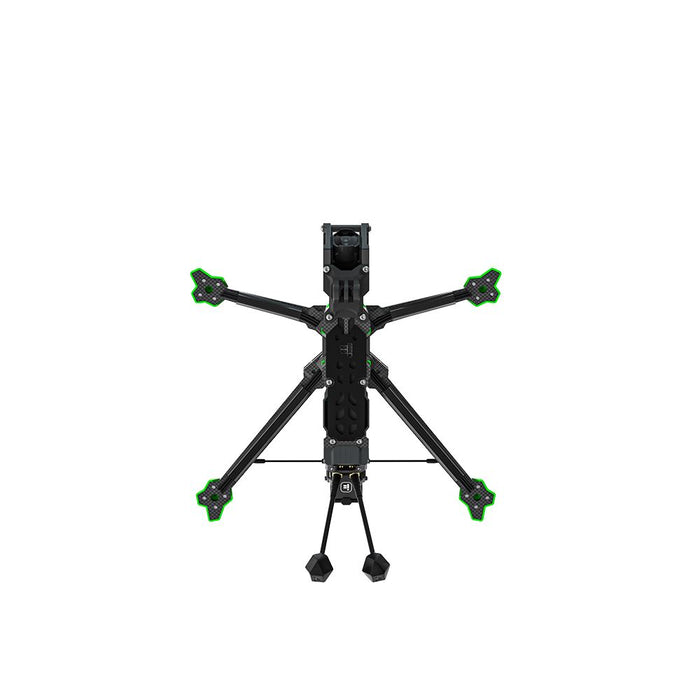

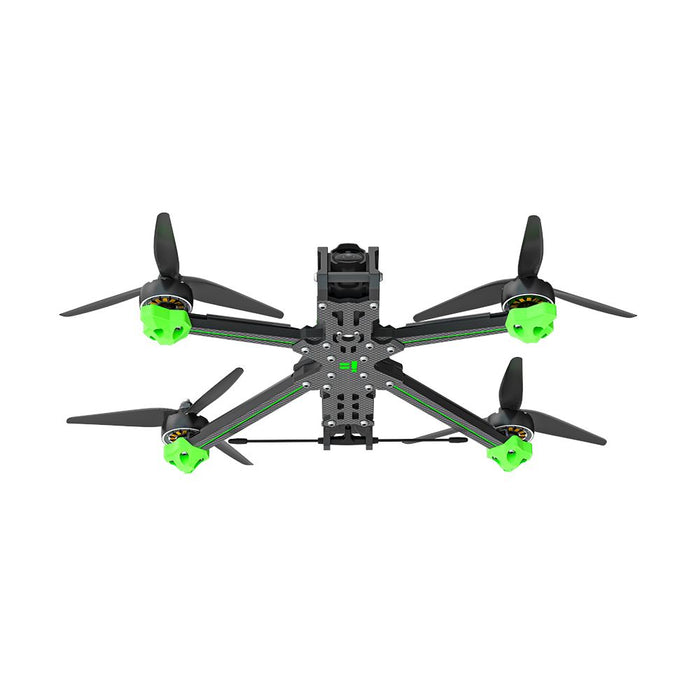

iFlight Nazgul Evoque F6D V2 O4 6S HD DeadCat BNF W/ DJI O4 Air Unit Pro - Choose Receiver

Features:

• Smooth and Powerful XING2 Motors
• The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
• Latest Nazgul Frame for Maximum Protection
• The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
• DJI O4  HD Air Unit, Enhanced Perception
• DJI O4 video transmission's enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)
• 4K Stabilized Video with 155° Ultra-Wide Angle
• Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
• Secured Battery Plug with Anti-Spark Filter
• Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

 Specifications:

• Product Name: Evoque F6 V2 O4 HD
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Pro Air Unit
• Frame wheelbase: 262±2mm (DeadCat)
• Motor: XING2 2506 1500KV motors
• Prop: HQ 6x2.5x3 propellers
• Weight: 485±5g(DeadCat)
• Takeoff Weight: Approx.710±5g (With 6S 1480mAh)
• Dimensions (L×W×H): 209*162*36±2mm
• Diagonal Distance: 120 mm
• Max Speed: 180 km/h
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 8.5 mins (No load With 6S 1480mAh)
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission:

• Product Name: DJI O4 Air Unit Pro
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: 1080p/100fps H.265
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Normal Mode/D-Log M
• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Built-in Storage: 4GB
• Supported SD cards: microSD (up to 512GB)
• Operating Temperature: -10° to 40° C
• Weight: Air Unit (camera module included): Approx. 32 g
• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Compatibility:

Package Includes:

• 1 x Evoque F6 6S O4 HD BNF
• 2 x Antennas
• 1 x Battery pad
• 2 x propeller(Pairs)
• 1 x Battery strap
