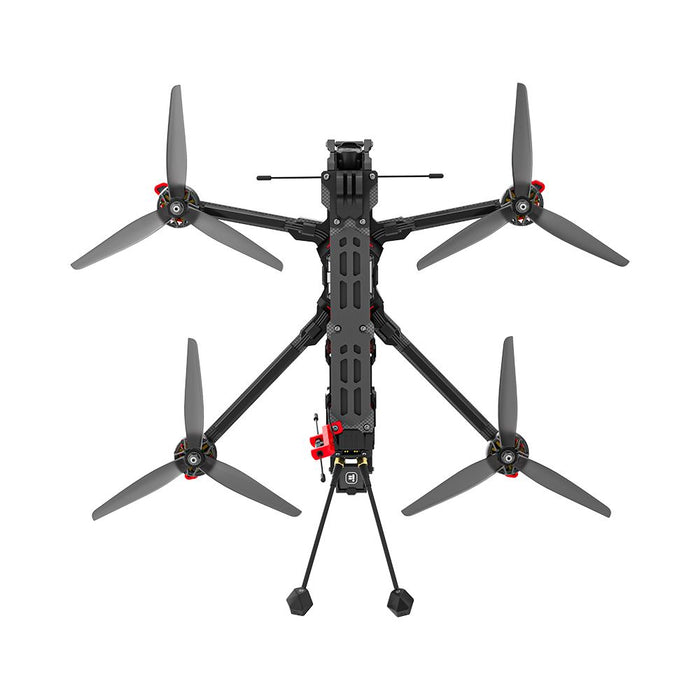

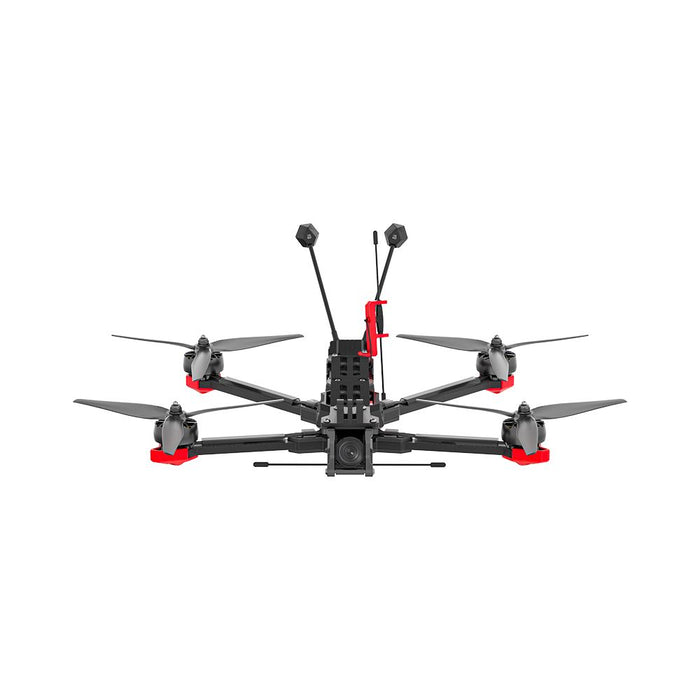

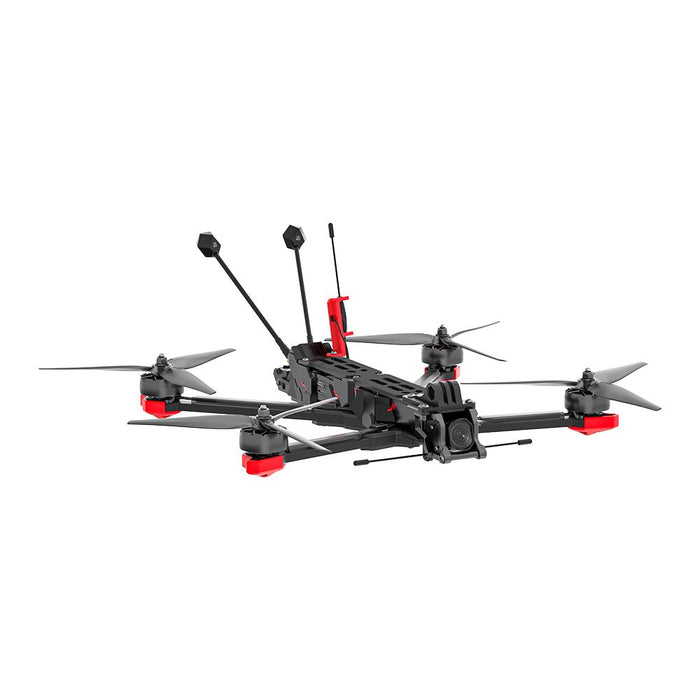

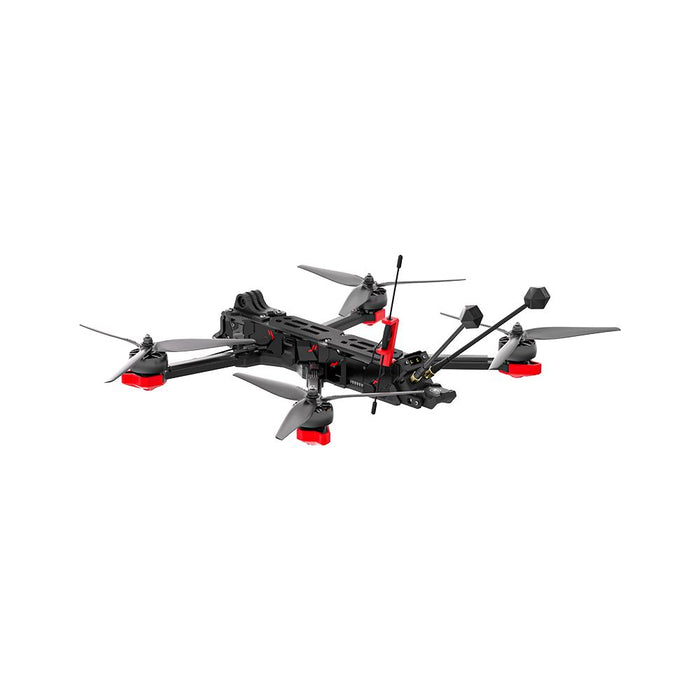

iFlight Chimera 7 Pro V2 O4 6S HD Long Range BNF W/ DJI O4 Air Unit Pro - Choose Receiver

Features:

• Smooth and Powerful XING2 Motors
• The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
• Latest Chimera7 Pro Frame for Maximum Protection
• The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
• O4 Video Transmission, Enhanced Perception
• DJI O4 video transmission's enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)
• 4K Stabilized Video with 155° Ultra-Wide Angle
• Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
• Secured Battery Plug with Anti-Spark Filter
• Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
• GPS Pre-Installed for More Safety at A Distance
• GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

 Specifications:

• Product Name: Chimera7 Pro V2 6S HD
• Geometry: DC (DeadCat)
• FC: BLITZ F722 Flight Controller
• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Pro Air Unit
• Frame: 327mm±2mm wheelbase
• Motor: XING2 2809 1250KV motors
• Prop: HQ 7.5X3.7X3 propellers
• Weight: 725±5g
• Takeoff Weight incl. 8000mAH: Approx. 1621±5g
• Dimensions (L×W×H)：270*199*34±2mm
• Max Speed: 140km/h
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 30 mins (No load With 21700 6S 8000mAh)
• Operating Temperature Range: -10° to 40° C
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission:

• Product Name: DJI O4 Air Unit Pro
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: 1080p/100fps H.265
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Normal Mode/D-Log M
• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Built-in Storage: 4GB
• Supported SD cards: microSD (up to 512GB)
• Operating Temperature: -10° to 40° C
• Weight: Air Unit (camera module included): Approx. 32 g
• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Compatibility:

Package Includes:

• 1 x Chimera7 Pro V2 6S O4 HD
• 2 x Battery pad
• 2 x 7.5 inch Prop(Pairs)
• 2 x Battery strap
• 1 x Screw bag
