iFlight Afterburner Sport O4 6S HD BNF W/ DJI O4 Pro Air Unit - Choose Receiver

You can find all the related parts in The iFlight Afterburner 5 HD Cinematic Drone Collection

Recommended 6S 1400mah Battery Packs

Features:

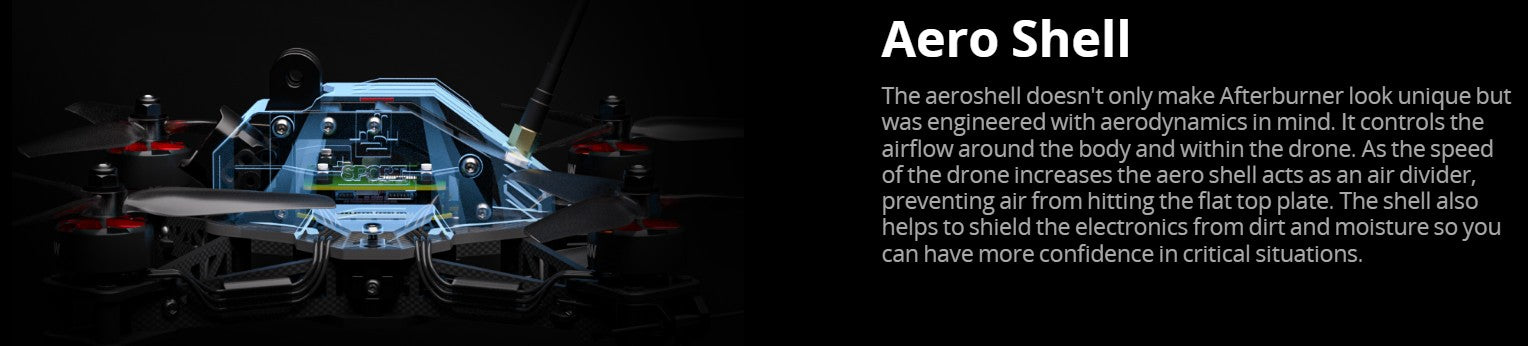

• Aeroshell Design
• Optimized to protect internal components while minimizing drag for maximum aerodynamic efficiency.
• Top-Mounted Action Camera
• Supports a 10-60° field of view with no propeller visibility, ensuring a pristine 16:9 aspect ratio for clean, uninterrupted footage during high speed chase sequences.
• Bottom-Mounted Battery
• Strategically placed for optimal center of gravity and balanced flight dynamics, ensuring exceptional stability and control.
• Compact 5-inch Footprint: Designed for unmatched agility and responsiveness, allowing for precision maneuvers in high-speed environments.
• 2RAW Performance Tune
• Expertly calibrated to deliver consistent, high-quality footage in all conditions, whether in high-speed pursuit or technical flight.
• CNC Machined Parts
• Crafted for maximum durability and ease of repair, providing quick access to internal components while enhancing structural integrity.
• High-KV Race Motors
• Engineered for ultra-fast top speeds, ensuring blistering acceleration and race-ready performance.

 Specifications:

• Product Name: Afterburner Sport 6S O4 HD
• Geometry: True-X
• FC: BLITZ F7 Flight Controller
• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Pro Air Unit
• Frame: 210 mm wheelbase
• Motor: XING2 2207 1750KV motors
• Prop: GEMFAN 5.1X3.6X3 propellers
• Weight: 490±5g
• Takeoff Weight: Approx.714±5g (With 6S 1480mAh)
• Dimensions (L×W×H): 148*148*77mm
• Max Speed: 190km/h
• Maximum Takeoff Altitude: 7000 m
• Max Hover Time: Approx. 12mins (No Load with 6S 1480mAh battery)
• Operating Temperature Range: -20° to 40° C
• Antennas: Single Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission:

• Product Name: DJI O4 Air Unit Pro
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: 1080p/100fps H.265
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Normal Mode/D-Log M
• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Built-in Storage: 4GB
• Supported SD cards: microSD (up to 512GB)
• Operating Temperature: -10° to 40° C
• Weight: Air Unit (camera module included): Approx. 32 g
• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Compatibility:

Package Includes:

• 1 x Afterburner Sport 6S O4 HD BNF
• 1 x Screw Bag
• 1 x Battery Strap
• 1 x Battery pads
