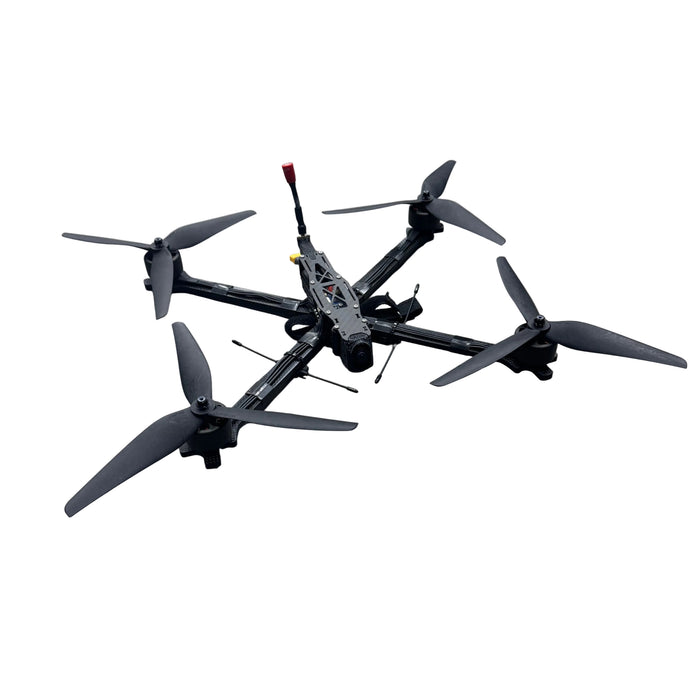

The Hyperlite Corsair 10" brings certified NDAA compliance to the largest platform in the Corsair lineup, pairing Unusual Machines NDAA 3115 900KV motors with Triumph flight electronics. Every aircraft is assembled, tuned, and tested in the USA, with NDAA-compliant critical components throughout.
At its core, the Triumph NDAA Lucid H7 flight controller and Lucid 8S ESC provide the foundation for a Betaflight-powered flight experience. Select Angle mode for self-leveling assistance or Acro mode for full manual rate control. Dedicated switch functions provide access to arming, Turtle Mode, and adjustable video transmitter power.
The Triumph NDAA Crossfire Diversity receiver provides the control link, while the Triumph NDAA Vanguard camera and NDAA TrueRC Matchstick antenna support the FPV video system. Recommended battery options include 6000–8000mAh LiPo packs or a 6S 3P Li-ion configuration.
For customers seeking a certified NDAA-compliant 10-inch FPV aircraft, the Corsair combines compliant hardware with US assembly, tuning, and testing.
Key Features
-
Certified NDAA compliant, with NDAA-compliant critical components throughout
-
Assembled, tuned, and tested in the USA
-
10-inch platform with Unusual Machines NDAA 3115 900KV motors
-
Triumph NDAA Lucid H7 flight controller running Betaflight
-
Triumph NDAA Lucid 8S ESC
-
Triumph NDAA Crossfire Diversity receiver
-
Triumph NDAA Vanguard camera
-
NDAA TrueRC Matchstick VTX antenna
-
Angle and Acro flight modes for self-leveling assistance or full manual control
-
Turtle Mode to help recover an inverted aircraft
-
Selectable VTX power: 25mW, 100mW, and maximum output
-
Props-out configuration
Specifications
| Component |
Specification |
| Airframe size |
10" |
| Compliance |
Certified NDAA compliant |
| Assembly, tuning, and testing |
USA |
| Motors |
Unusual Machines NDAA 3115 900KV |
| Flight controller |
Triumph NDAA Lucid H7 |
| ESC |
Triumph NDAA Lucid 8S |
| Receiver |
Triumph NDAA Crossfire Diversity |
| Camera |
Triumph NDAA Vanguard |
| VTX antenna |
NDAA TrueRC Matchstick |
| Flight controller software |
Betaflight |
| Flight modes |
Angle / Acro |
| Recommended LiPo capacity |
6000–8000mAh |
| Recommended Li-ion configuration |
6S 3P |
Download the specification and quick start guide here.
