The HOBBYFLY 1S LiPo/LiHV Battery Charger offers six charging ports compatible with BT2.0 and PH2.0 connectors, enabling efficient simultaneous charging of multiple batteries. Designed with low voltage input protection, it ensures safe operation and prevents damage to your power source. This charger supports both LiPo and LiHV battery types, providing versatile compatibility for various hobby applications. Included with a reliable power adapter, it delivers stable and consistent charging performance, making it an essential tool for enthusiasts seeking expert-level battery management and safety.
Check out the rest of our Chargers Collection.
Features:
- 【2 Types Battery Ports】 HobbyFly 6 ports 1S charger is designed for charging 1S lipo battery with BT2.0 connector and PH2.0 connector. But please DO NOT charge 2 batteries in one port at the same time. Otherwise, the battery life will be reduced or the battery will be damaged.
- 【Low Voltage Protection of Battery Input】 You can set up the low voltage protection when you use the big battery as the power input(2S-6S 3.6V/cell safe end voltage).example: 3S battery as the input, you set up as the "-3P" then it will protect your battery ended up 3.6V x 3S =10.8V. Avoiding battery over discharged.
- 【Input voltage and LEDs Charging Status】 Stand by without Battery plugged in: Green Flash; Charging: Green Solid; Charge Finished: Green Off. The charge supports 3.7V(4.20V) or 3.8V(4.35V) batteries charging . Input voltage display.
- 【Input and Fast Charge Speed】 Two input type: 1. 12V/2A adapter input; 2. 2S-6S XT60 battery input. Charge current: Max 0.4A each charge channel. Estimated charging time: 6pcs 300mah 1S Batteries 3.8V to 4.35V, about 20 minutes.
- 【6 Independent Ports】 6 independent charging channels, not necessary to ensure the batteries are all the same voltage and same size. You also can unplug one that's done and plug in another while the others are still charging.
Specifications:
| Batteries Included |
No |
| Batteries Required |
No |
| Battery cell composition |
Lithium Polymer |
| Product dimensions |
11.99 x 13 x 5 cm; 185.12 Grams |
| Item Weight |
185 g |
Instructions:
Each charing channel is independent.So there is not any worry about the voltage variance battween your batteries.
This charger has low voltage protection(3.6V/cell safe ended voltage).That is to protect your input power (2S-6S)battery,
avoiding over discharged as the input power.
Item: 6 Ports 1S Battery Charger
Support Battery： 1S 4.20V/3.7V Lipo and 4.35V/3.8V Lihv.
Input connector: 12V/2A DC55*25 or XT60
Input voltage range: 7V--27V(2S-6S)
Max charging current: 0.4A (Single-port)
Support battery connector: BT2.0&PH2.0
Battery Type：LiHV 4.35V and Lipo 4.20V
Low input voltage protection: 3.6V/cell safe ended voltage (if you use 2S-6S battery as the input power).

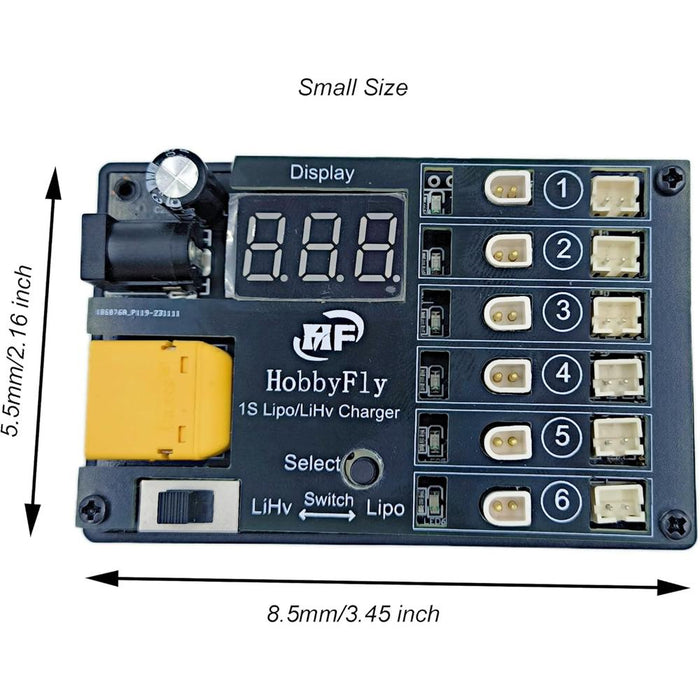

Dimensions：85*55*20mm
Use Steps:
1. Power the charger with 12V power adapter or 2S--6S battery,then it dispays "-3p" first,then shows the input voltage.
2. Set up the battery type switch , Lihv or Lipo type per your battery.
3. Press the button to set up the 3 Digital LED display to match your input power type.
This step is activating low votlage protection,avoiding your input power battery to be discharged over.
Ended voltage: 3.6V/ cell.So the discharge protection voltage as below
12/2A Adapter input-------"-dc",
2S battery input-------"-2P", ended 7.2V
3S battery input-------"-3P", ended 10.8V
4S battery input-------"-4P", ended 14.4V
5S battery input-------"-5P", ended 18V
6S battery input-------"-6P", ended 21.6V
4.when the display is showed the right input,just wait 3 seconds without any action,the setting is done.
Then the charger displays the input voltage solid.
5. All the 6 LEDs are fashing. Then you can plug in your batteries,the This channel starts charging auto.
Please DON'T use the BT2.0 and Ph2.0 at the same channel at the same time.
Charging Status:
Stand by without Battery plugged in: Green Flash
Charging: Green Solid
Charge Finished: Green Off
If you need to adjust the input type during charging, just press the button to change it again.
Package Includes:
-
1 * 6 Ports 1S Battery Charger
- 1 * US 12V Adapter（AC 110V-240V
