HGLRC Wind5 Lite True X FRAME Kit 5 Inch for FPV Racing Drone

Regular price $51.99 Sale

Availability: Available Unavailable

Product SKU: 50E-8681

Product Details

Sleek new Wind5 Lite frame by HGLRC in TRUE-X Configuration!

Powerful. gorgeous, 5" frame made from 3k Carbon Fiber with 5mm thick arms and 4mm thick arm braces, but only 80gs in weight!

Check out the Wind5 Lite Collection, all our 5 Inch Frames and the rest of our HGLRC Products!


  • Material:3K Carbon Fiber
  • Type:5" frame
  • Wheelbase:208mm
  • size:148*148mm
  • Top plate thickness:2mm
  • Bottom plate thickness:2mm
  • Middle plate thickness2.5mm
  • Arm Thickness:5mm
  • Top and middle plate spacing:25mm

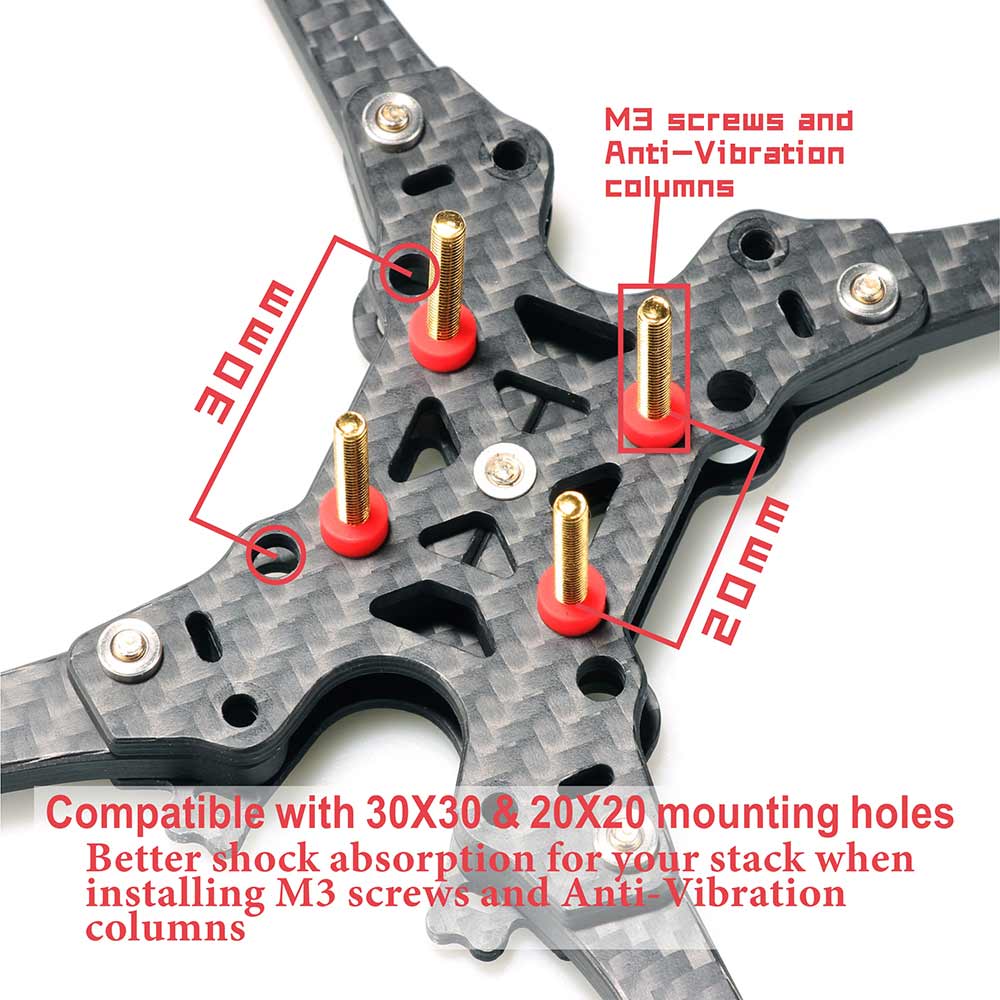

  • Installation holes:20x20/30.5x30.5mm
  • Support camera:14mm
  • Weight:80g


  • Flight control installation damping system
  • 4mm protective bar
  • SMA antenna Mount
  • Camera Mount
  • Anti-turtle Shark Fin

Package Includes:

  • 1x 2mm top plate
  • 1x 2mm bottom plate
  • 1x 2.5mm middle plate
  • 4x 5mm arm
  • 2x 4mm protective bar
  • 4x M3*25mm black aluminum column
  • 4x round head screw M3*25
  • 4x round head screw M3*16
  • 12x round head screw M3*12
  • 1x Sink head screw M3*10
  • 8x round head screw M3*8
  • 2x round head screw M2*4
  • 4x M3 Self-tightening nut
  • 4x M3*6.6 shock absorber ball
  • 4x M3*8 shock absorber ball
  • 1x Battery cable tie 15x250mm
  • 1x Battery cable tie 20x250mm
  • 1x Battery Anti-slip tape
  • 2x strap
  • 1X Anti-turtle Shark Fin
  • 1X SMA antenna Mount
  • 1X Camera Mount

Recommended Parts:( Not Included )

  • Flight Controller: Kiss/F4/F7 FC
  • Motor: 2207.5/2306.5/2408
  • ESC: 35A-65A
  • Camera:14x14mm size
  • Propeller: Sector 5 - 5.2 Inch
  • Battery: 4S 1300mAh ~ 6S 1800mAh


You can find all the STL files for the TPU parts on the Wind5 lite here
