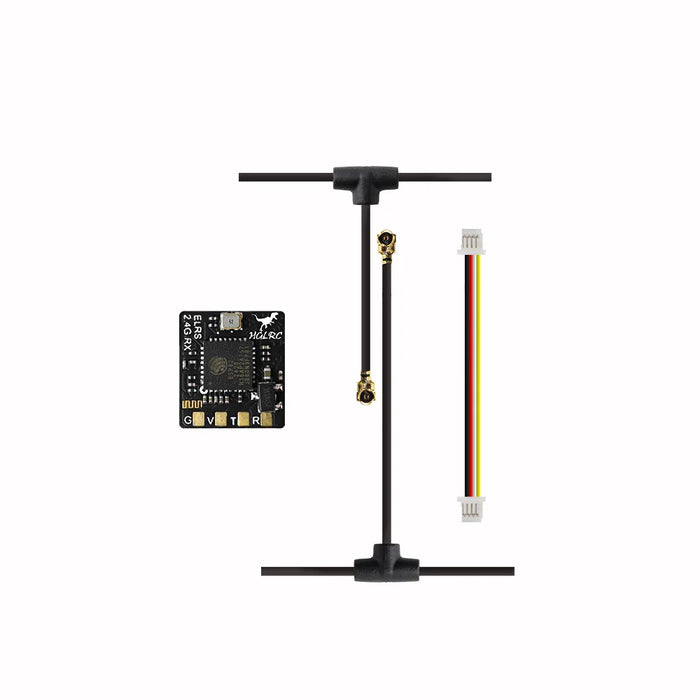

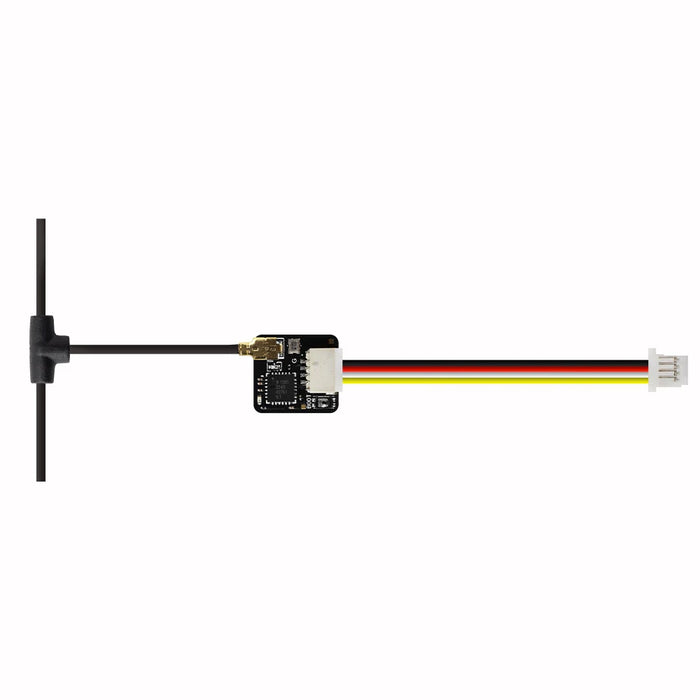

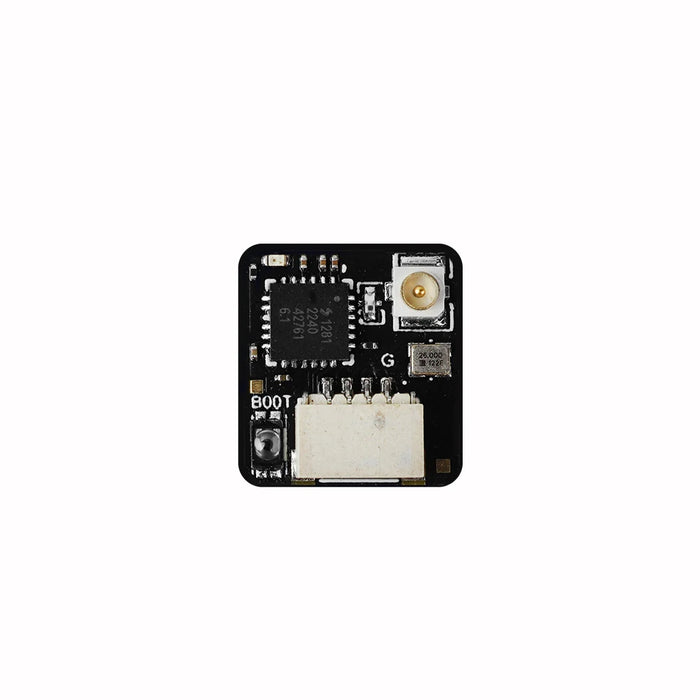

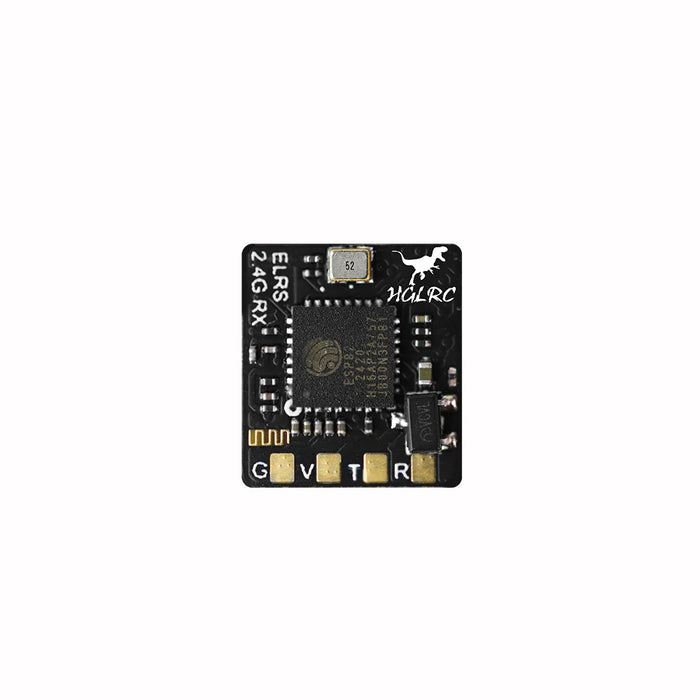

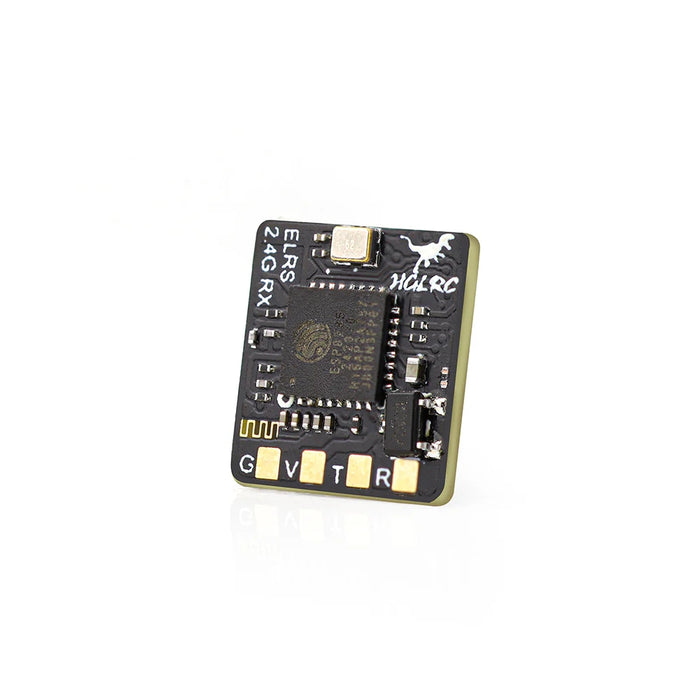

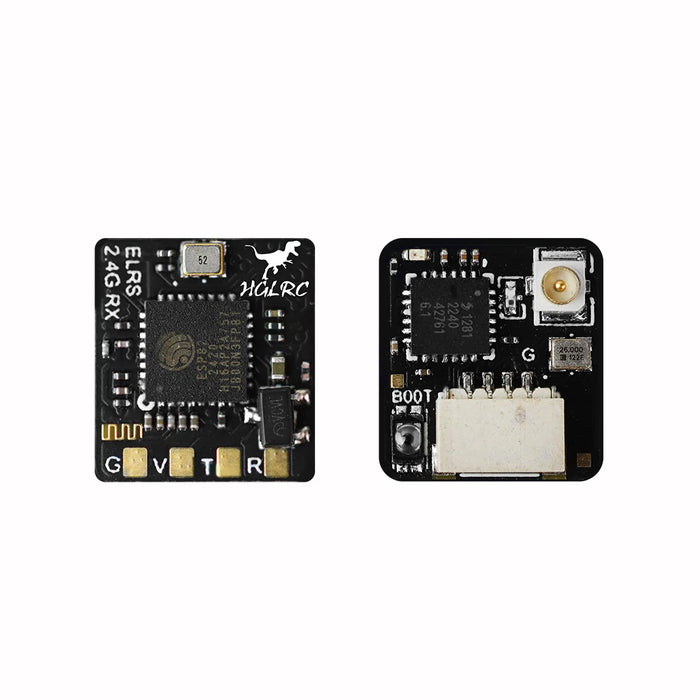

HGLRC ELRS 2.4GHz RX-T Receiver w/ T-Antennas

Features:

• The receiver boasts a small footprint, measuring just 11.18 x 12.45mm, making it suitable for a wide range of applications.
• Users have the flexibility to choose between soldering connections or utilizing its direct pluggable feature for easy detachment and attachment.
• With a high refresh rate, this receiver ensures rapid response times and smoother control.
• The receiver comes with factory-installed ELRS 3.0 firmware, supporting the latest features and updates from the ELRS community.
• It operates on the 2.4GHz ISM band, ensuring a strong and stable connection.
• The onboard ESP8285 Microcontroller and SX1280IMLTRT RF module work together to deliver reliable performance.
• An omni-directional antenna is included, providing a wide range of signal reception.

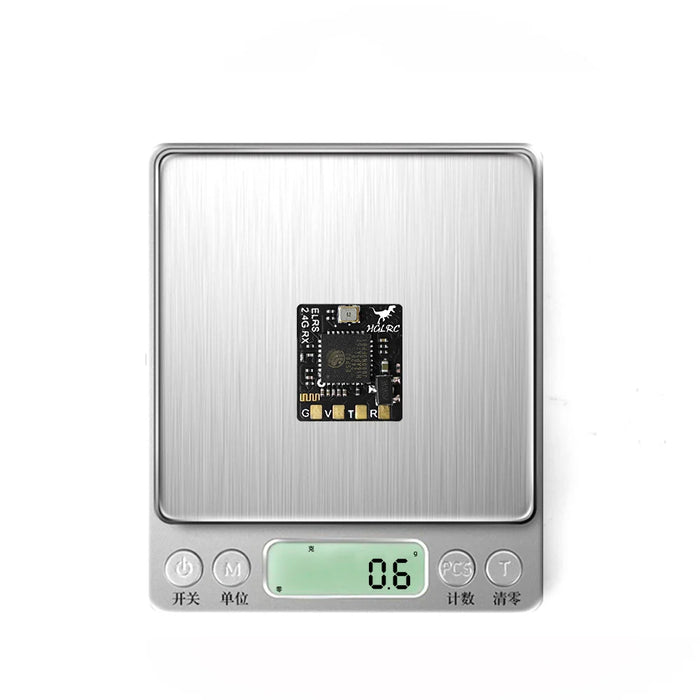

• The receiver operates on a 5V power supply and weighs just 0.66 grams, adding minimal weight to your setup.
• Peak gain is measured at 2.23dB, ensuring a strong and stable signal.


Specifications:

• Type: ISM
• MCU:ESP8285 Microcontroller
• Module: SX1280IMLTRT RF module
• Antenna: Omni-directional antenna Frequency range: 2400 MHz to 2500 MHz
• Maximum receiver refresh rate: 500 Hz
• Minimum receiver refresh rate: 25Hz
• Operating voltage: 5v Weight: 0.66

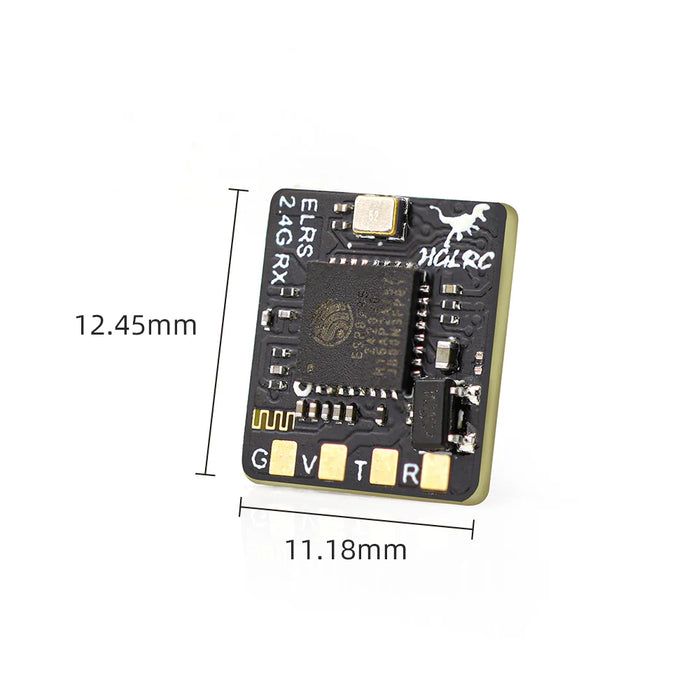

• Size: 11.18 X 12.45mm
• Peak gain: 2.23dB

Package Includes:

• 1 x HGLRC ELRS 2.4GHz RX-T Receiver.
