HDZero Whoop V2 Bundle (Nano V3 Camera)

HDZero Whoop V2 Bundle (Nano V3 Camera)

SKU N2-14480
Availability:
in stock
$114.99 - $114.99
$114.99
$114.99 - $114.99
$114.99


The HDZero Whoop V2 Bundle (HDZ3104) is the ultimate digital FPV solution for lightweight builds, pairing the powerful Whoop V2 VTX with the high-performance Nano V3 camera. This bundle is specifically engineered for 1S-3S whoops and micro drones, offering high-definition 720p video with near-zero latency. The Nano V3 camera features a large 1/2-inch sensor for exceptional low-light performance and a wide FOV, making it a significant upgrade for pilots looking for the best image quality in a tiny package.

Check out our HDZero Compatible Gear and the rest of our HDZero Products!


Features

  • High-Definition Video: Delivers 720p60, 540p90, and 1080p30 resolution options.

  • Low Latency: Optimized for digital FPV racing and freestyle with near-zero visible latency.

  • Improved Durability: Features a thicker PCB for enhanced impact resistance during crashes.

  • Ultra-Sensitive Sensor: Nano V3 camera uses a 1/2 inch CMOS sensor for superior clarity and color.

  • Flexible Mounting: Designed with a standard 25.5x25.5mm mounting pattern for easy integration into most whoop frames.

  • Secure Connectivity: Includes a secured U.FL connector with a brass bar to prevent antenna pop-offs.

Specifications

  • Whoop V2 VTX:

  • Model: HDZ3104

  • Frequency: 5.725 – 5.850 GHz

  • RF Power Output: 25mW / 200mW

  • RF Connector: Secured U.FL with brass bar

  • Video Connector: MIPI

  • Size: 31 × 31 mm (29 × 29 mm inner)

  • Mounting Pattern: 25.5 × 25.5 mm (M2)

  • Weight: 5.4g (5.1g without wires)

  • Power Input: 3V – 12.6V (1S – 3S)

  • Power Consumption: 5W – 6W

  • Control/OSD: MSP OSD / Smart Audio

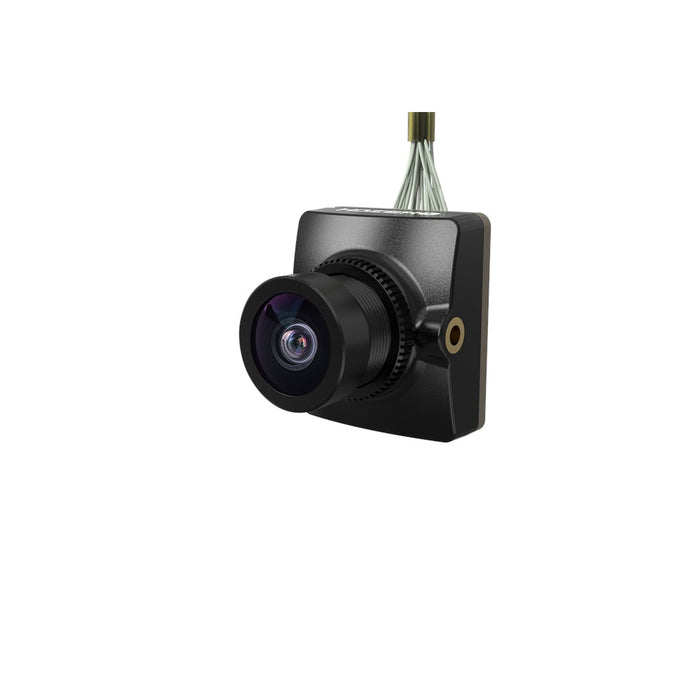

  • Nano V3 Camera:

  • Sensor: 1/2 inch CMOS

  • Sensitivity: 10650 mV/Lux-sec

  • Resolution: 720p60 4:3

  • FOV: D:155° H:126° V:94°

  • Weight: 2.2g

  • Dimensions: 14 x 16 x 14 mm

Compatibility

  • Flight Controllers: Supports FCs with MSP OSD and Smart Audio protocols.

  • Cameras: Compatible with all HDZero MIPI cameras.

  • Goggles: Requires HDZero compatible digital FPV goggles or VRX.

Package Includes

  • 1x HDZero Whoop V2 VTX

  • 1x HDZero Nano V3 Camera

  • 1x Dipole Antenna

  • 1x 40mm MIPI Cable

  • 4x Rubber Grommets (M3 to M2)

  • 3x u.FL Antenna Retention Screws

  • 1x Metal Brass Bar (for antenna retention)

Critical Notes

  • Cooling Requirement: This VTX generates significant heat; ensure adequate airflow is provided during operation to prevent thermal shutdown. Do not leave the unit powered on the bench without a fan.

  • Voltage Warning: Supports 1S to 3S input only (3V – 12.6V). Exceeding this voltage will permanently damage the hardware.

  • Antenna Security: Always ensure the antenna is securely attached via the included brass bar before powering the unit to avoid RF damage.


Laws and requirements regarding transmission of radio waves vary greatly across the world. In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a HAM amateur radio license, at the very least. It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location. By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.


Warranty Policy:

If any warranty needs for this product arise, please note that the manufacturer of this product is one of the few manufacturers we carry that requests the end user to contact them directly for any troubleshooting or possibly defective items. We must follow these policies set by these manufacturers. Please make sure to contact them directly if you feel your product is defective in any way. Reach out to us if you need an email address or contact link for this manufacturer.
