Note: Please be careful when disassembling the radio and attaching the PCB. The customer bears all responsibility for any accidental damages to their equipment while performing this modification.

Since the TBS Tango2 radio is powered by 1S, when an external TX module such as ES24TX Slim Pro needs to run at 1000mw, the original circuit structure cannot maintain normal operation or even turn on.

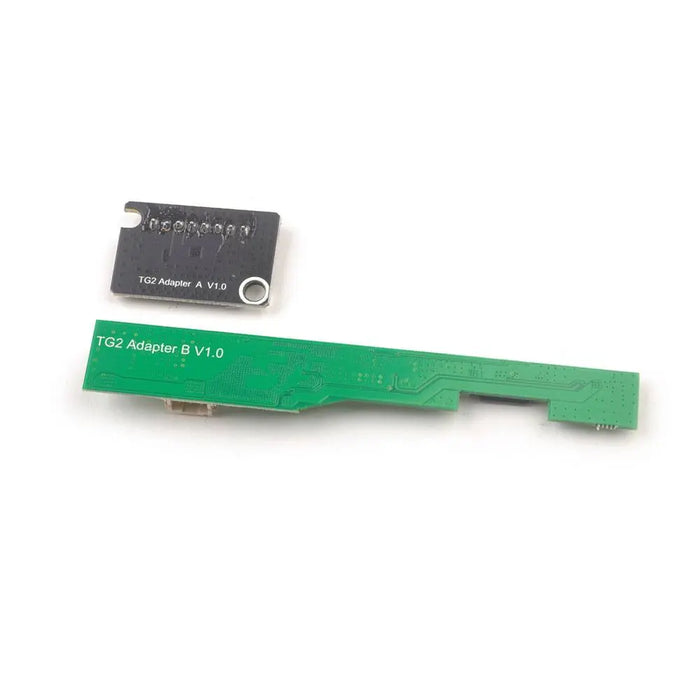

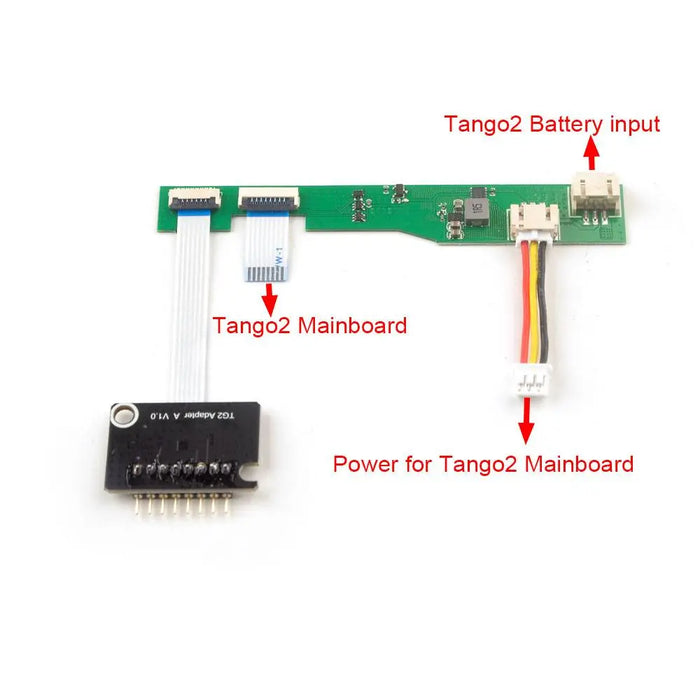

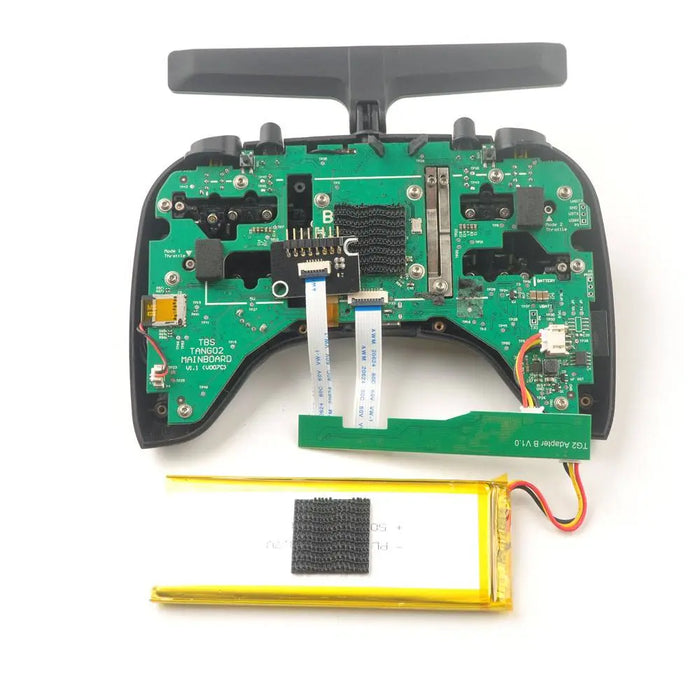

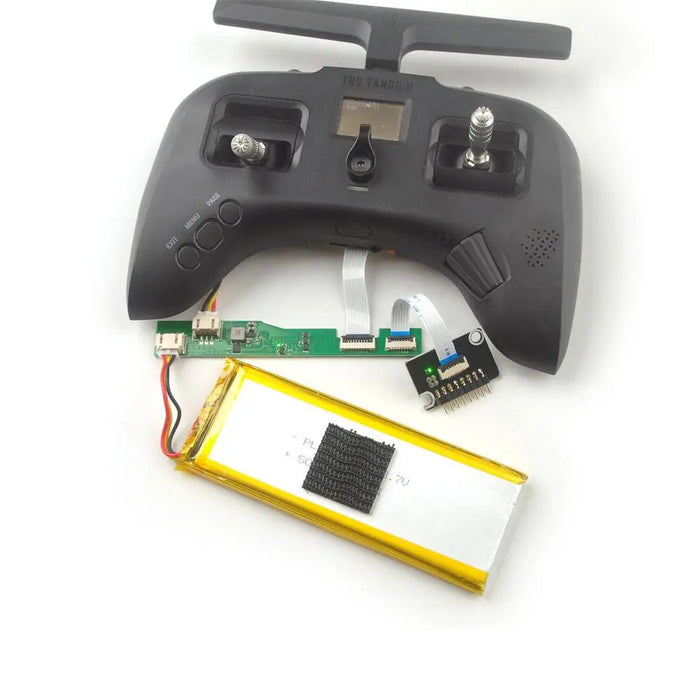

This set of power adapters consists of two parts, one of which is a PCB board directly glued to the back of the main board of the Tango2. Another PCB with pins directly replaces the original external expansion module.

The overall replacement is very convenient and is plug-and-play. Of course, you need to be careful during the modification process.

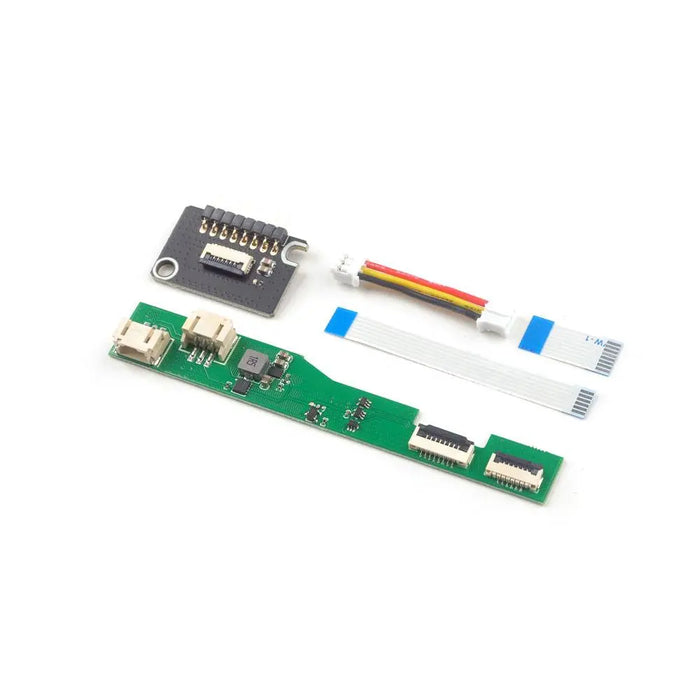

Package Includes:

• TG2 Adapter A board x1
• TG2 Adapter B board x1
• 6pin*1.0mm*60mm FPC Flexible ribbon cable x1
• 8pin*1.0mm*60mm FPC Flexible ribbon cable x1
• 3pin PH2.0 power cable x1
