Note: The V3 now features the New CrazyG473 AIO flight controller.

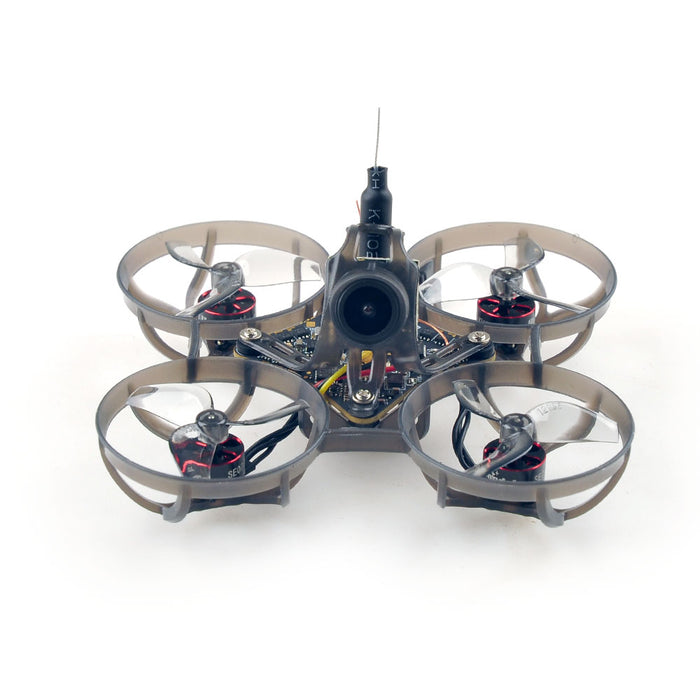

Experience precision flying with the Happymodel Mobula6 2024 V3, engineered for competitive FPV pilots. This ultra-lightweight 65mm whoop weighs just 17.6g, featuring the advanced CrazyG473 AIO flight controller for responsive handling. The integrated 1200TVL Nano5 camera delivers sharp analog video, while SE0702 brushless motors at 1.46g each provide exceptional power-to-weight performance. Built-in ELRS 2.4GHz receiver and 400mW openVTX transmitter ensure reliable connectivity and clear FPV transmission. Designed for speed and agility in tight spaces.

Check out our Mobula 6 and Parts collection and our entire Happymodel Products!



Features:

• Come with New CrazyG473 AIO flight controller

• Happymodel New 1200TVL Nano5 camera

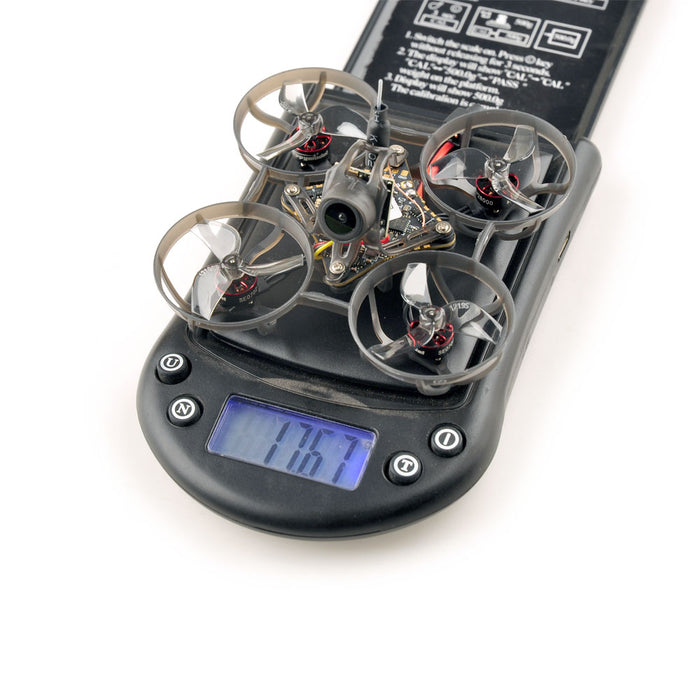

• Super light 1S 65mm Brushless whoop only 17.6g

• Equipment with the lightest brushless motors-SE0702 only 1.46gram

• Smooth and powerful

• Built-in Serial ELRS receiver

• Built-in Power max to 400mw openVTX



Specifications:

• Item Name: Mobula6 2024 V3 1S 65mm ultra light micro FPV Whoop

• Wheelbase: 65mm

• Size: 81mm*81mm*37mm

• Weight: 17.6g
• Receiver option: 2.4GHz ExpressLRS Serial receiver



	Mobula6 2024 V3	Mobula6 2024 V2
Flight controller	CrazybeeG473	SuperX ELRS V2.0
Firmware target	Betaflight 4.6 CrazybeeG473	Customized STM32F411
Built-in ExpressLRS receiver	Serial ELRS 2.4GHz	Serial ELRS 2.4GHz
Built-in Dshot ESC	5A	5A
Receiver antenna plug	Enameled Copper wire	Enameled Copper wire
Onboard VTX power	25mw~400mw	25mw~400mw
Brushless Motor	0702 KV28000 no plug	0702 KV28000 with plug
Propeller	Gemfan 1208-3 tri-blade	Gemfan 1208-3 tri-blade
Battery plug	A30(compatible with BT2.0)	A30(compatible with BT2.0)
Frame	Mobula6 2024 frame 2.76gram	Mobula6 2024 frame 2.76gram



Spare parts specifications:

Motor	Mode: SE0702 KV28000 no plug version Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ9.5mm*14mm Weight(g):1.46g No.of Cells(Lipo):1S only
Propellers	Materials: PC Inch: 31mm Pitch: 0.8 in Weight: 0.21g Mount hole diameter:  1mm
Flight controller	MCU: STM32G473CEU6 Gyro: ICM42688P Sensor: Voltage & Current BEC: 5V, Max. 2A UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) BetaFlight OSD: AT7456E ESC: 5A continuous RX: Serial ELRS 2.4GHz RX antenna: Enameled copper wire 31mm length Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX OPENVTX: 5.8GHz 48 channels, Max. 400mW FC firmware target: CRAZYBEEG473 USB port: SH1.0-4Pin Battery connector: A30 Mounting hole size: 25.5mm x 25.5mm Weight: 3.83g without pigtail and vtx antenna
Onboard 4in1 ESC	Power supply: 1S LiPo/LiPo HV   Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.21 Firmware target: A_X_5_96KHz Default protocol: DSHOT300 DSHOT600 Recommend ESC Startup power value to min1100/max1200
Onboard Serial ExpressLRS receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna : Enameled copper wire antenna Telemetry output Power: <12dBm Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx
Onboard 5.8g VTX	OPENVTX Firmware Support firmware upgrade by openvtx configurator Output power: PIT/10/25/100/400 Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.1 Modulation type: FM Operating temperature: -10℃~+80℃ Antenna port: IPEX1/U.FL
Nano5 Camera	Image Sensor: 1/3″ CMOS Horizontal Resolution: 1200 TVL Lens: 2.1mm (M10) 155° FOV TV System: NTSC Signal-to-Noise Ratio: >52dB Electronic Shutter: Auto Automatic Gain Control (AGC): Auto Minimum Illumination: 0.001Lux@1.2F Digital Wide Dynamic Range: Auto Power Supply: DC 3-5.5V Current: 110mA@5V 120mA@3.3V House Material: ABS Net Weight: 1.57g (1.0mm plug version)



Default factory dump file for Mobula6 2024 V3 Betaflight 4.6.0

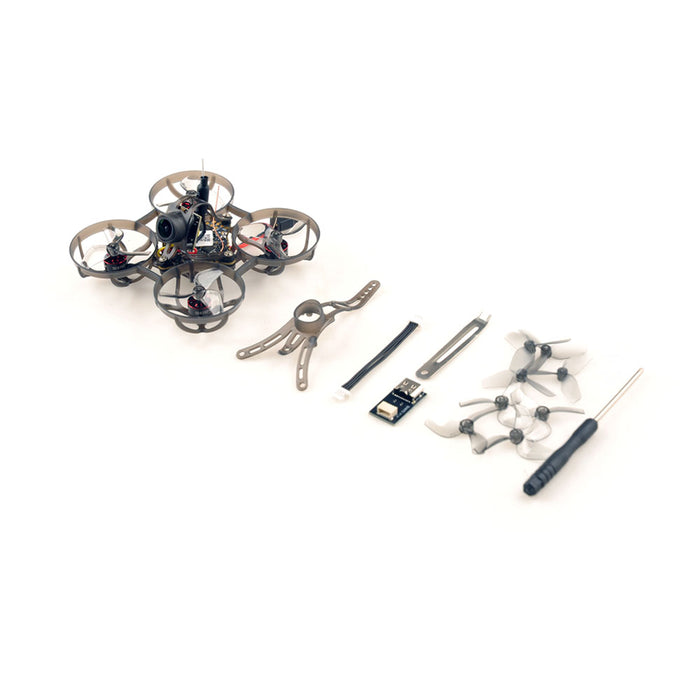

Package includes:

Item Name	Qty
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy	1
CrazybeeG473 AIO 5-IN-1 Flight controller	1
SE0702 KV28000 brushless motor	4
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)	1
HQPROP ultralight whoop prop 1.2×1.1×3(2cw+2ccw)	1
Nano5 1200TVL camera NTSC 4:3	1
Onboard 5.8G 25mw~400mw VTX	1
Spare canopy	1
Propeller disassemble tool	1
Screw driver	1
