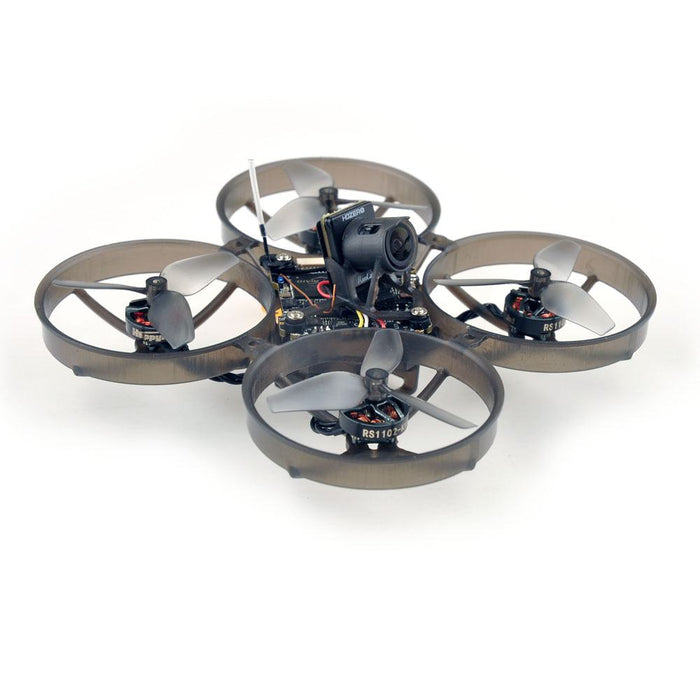

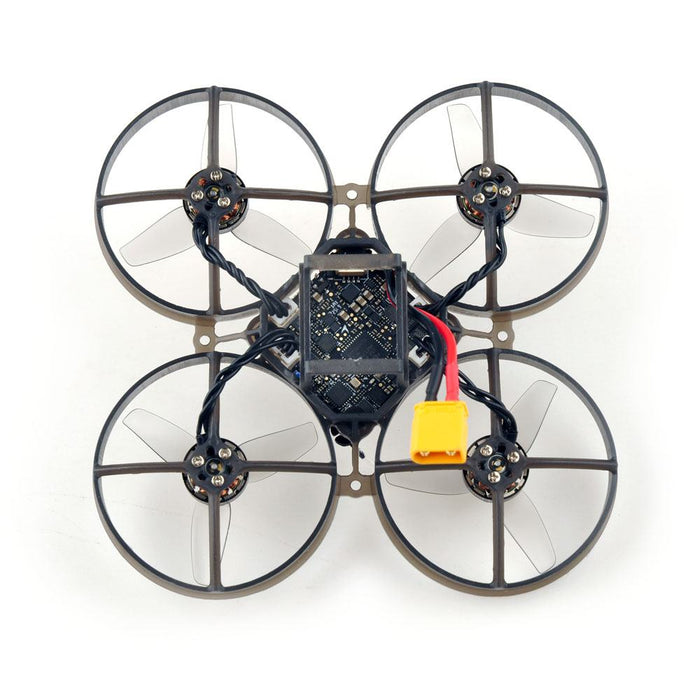

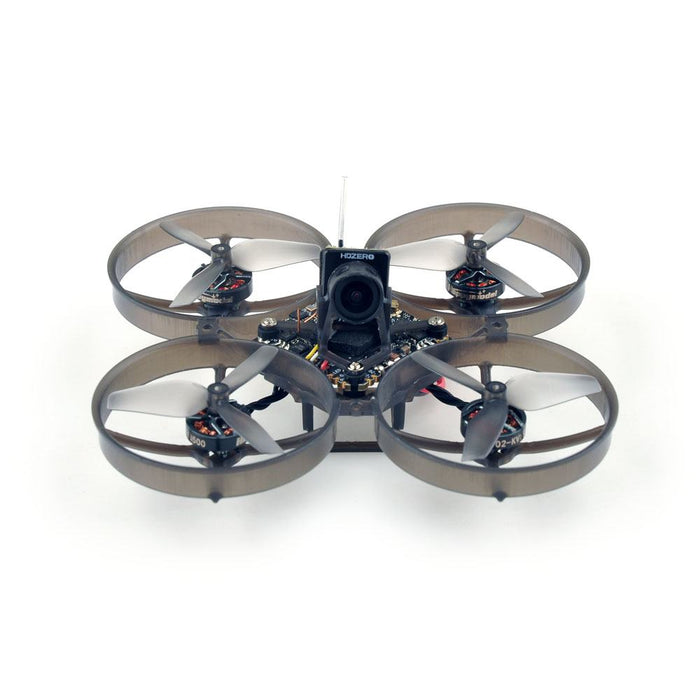

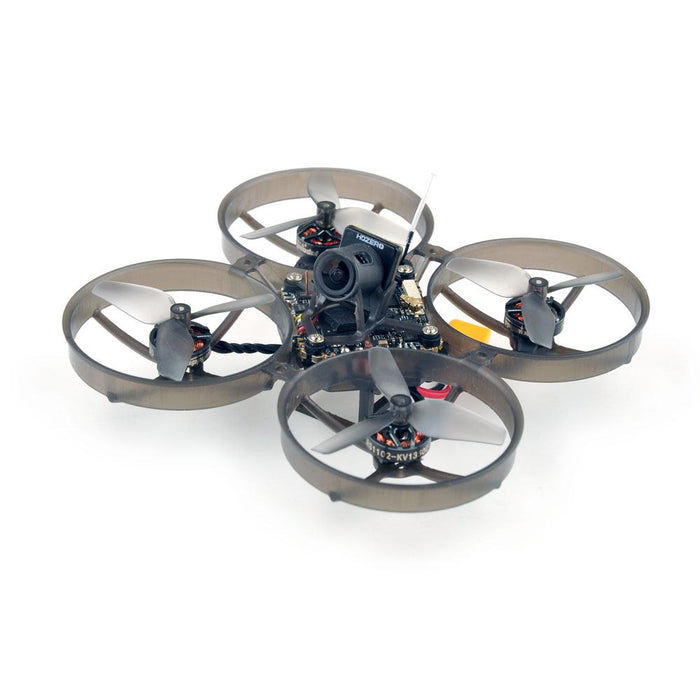

The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience.

Here is our recommended 2S 550mAh Battery

Check out our Micro Whoop Drones, our entire Happymodel Products and The Digital BNF/PNP/RTF Collection.

Features:

• Equipment with the New HDZERO AIO15 5-IN-1 flight controller

• 2S battery support Powerful and Smooth freestyle flying experience

• UART ExpressLRS receiver support stable control link

• Lighter but powerful for backyard FPV

• HDZERO lighter and good quality Camera

Specifications:

• 80mm wheelbase

• 45mm propellers

• Weight only 33.5gram

• RS1102 KV13500 high speed motors

• Recommend 2S 550mah battery (Not Included)

• 2.4G ExpressLRS ready



Spare parts specifications:

Motor	Mode: RS1102 KV13500 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*14mm Weight(g):2.8g No.of Cells(Lipo):1-2S
Propellers	Weight:0.33g Material: Poly Carbonate Pitch:0.9 Props Dia:45mm Hub Thickness:5mm Shaft:1.5mm
Flight controller	MCU: STM32G473 (170MHz, 512K Flash) Gyro: ICM42688 On board voltage and amperage meters Built-in 15A(each) Blue Jay 4-in-1 ESC Built-in 5.8G HDZero VTX RF output: 25mw/200mW Supported channels: R1-R8, F2/F4, L1-L8 UFL connector (ultra-lite linear antenna included) Built-in Serial ExpressLRS 2.4GHz receiver Built-in 5V 3A BEC Flight controller firmware target: HDZERO_AIO15 Power supply: 2S battery (6.4v~8.7v) Fully compatible with the popular whoop frames Board size:31.3×31.3mm with a 25.5×25.5 mounting hole size Weight:7.2g (with motor plugs)
Onboard 4in1 ESC	Power supply: 2S LiPo/LiPo HV Current: 15A continuous,18A peak (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz Default protocol: DSHOT300
Onboard UART ExpressLRS 2.4GHz Receiver	Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz RF Frequency: 2.4GHz Antenna: Pre-soldered enameled copper wire 31mm length Telemetry output Power: <12dBm
LUX camera	HDZero Lux Camera Sensor size: 1/2 inch Resolution: 720p60 4:3 and 16:9 FOV: D:155° H:126° V:94°(4:3) FOV: D:145° H:126° V:70°(16:9) WDR



Manual and dump file download



Package Includes:

• 1 x Happymodel M80 Frame
• 1 x HDZERO AIO15 5-IN-1 Flight controller
• 4 x RS1102 KV13500 brushless motor
• 2 x HQPROP 45MMX3 tri-blade propellers Sets
• 1 x HDZERO LUX Camera
• 1 x Canopy
• 1 x Screw driver 1
