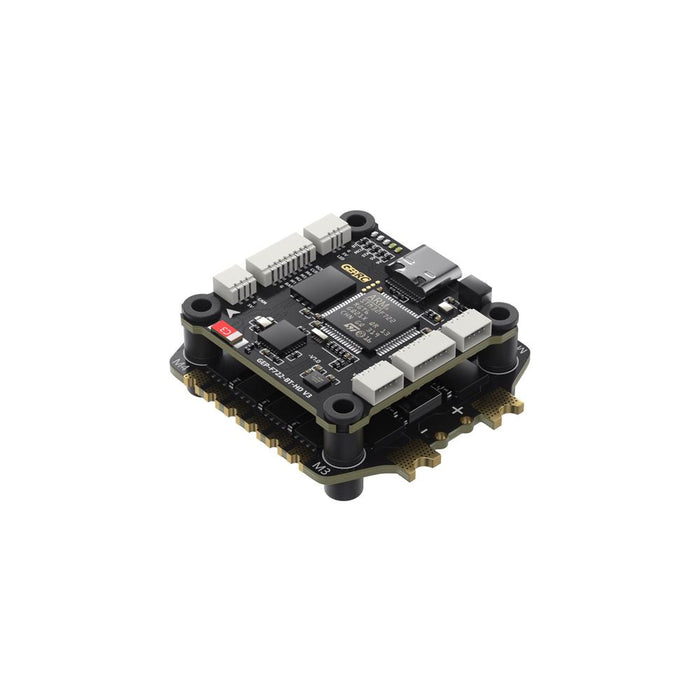

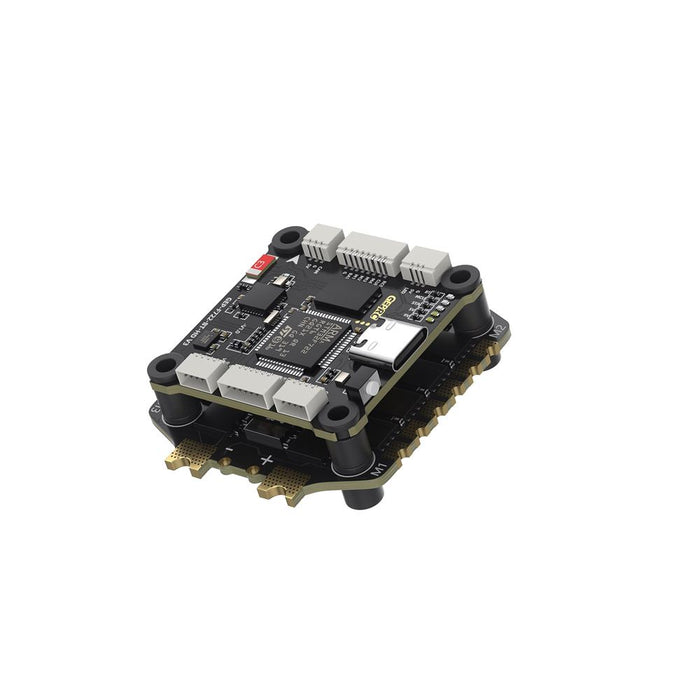

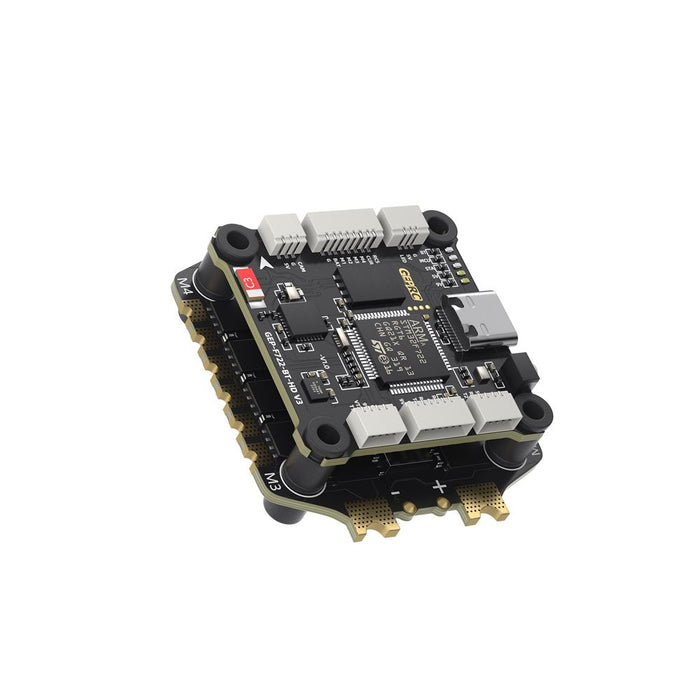

GEPRC TAKER F722 BT 8Bit 60A BLS 3-6S Stack - 30*30mm

GEPRC TAKER F722 BT 8Bit 60A BLS 3-6S Stack - 30*30mm

SKU V8-14042
Availability:
in stock
$89.99 - $89.99
$89.99
$89.99 - $89.99
$89.99


Not only does the GEPRC TAKER F722 BT 8Bit 65A BLS Stack boast advanced 8-bit technology and a compact size of 30*30mm, but it also offers high performance with its 60A BLS stack. Perfect for experienced pilots looking to take their flights to the next level with precision and control.

Check out all our 30x30mm Stacks and the rest of our GEPRC products.

Features:

  • 1. Use mainstream STM32F722 chip
  • 2. Equipped with the latest 42688-P gyroscope
  • 3. 512M black box storage
  • 4. Support Bluetooth parameter tuning
  • 5. Integrated LC filter
  • 6. Upgrade type-C USB interface
  • 7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
  • 8. Directly plugs into the DJI Air Unit
  • 9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
  • 10. Integrated Barometer
  • 11. 9V@2.5A + 5V@3A dual independent BEC


Specifications:

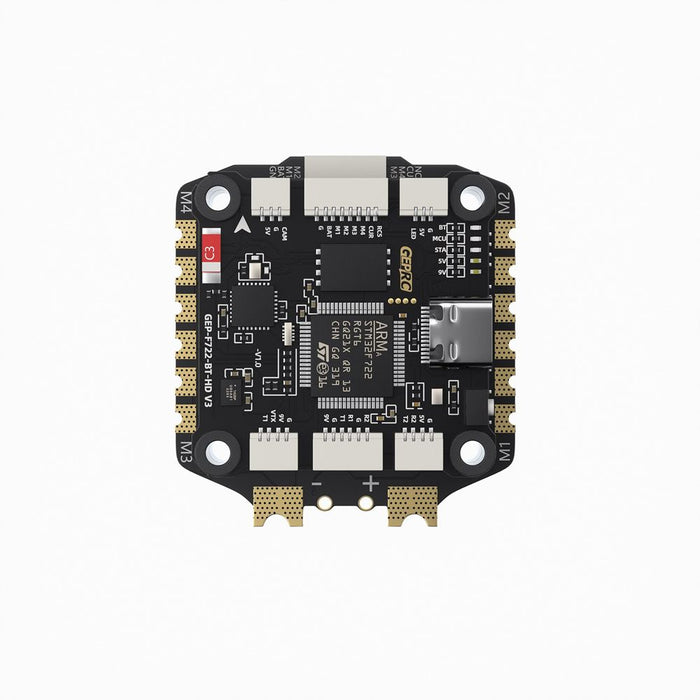

GEP-F722-BT-HD V3 Flight Controller

  • MCU: STM32F722
  • IMU：ICM42688-P(SPI)
  • Air Unit Connection: Directly plugs into the DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A, 9V@2.5A dual BEC
  • Firmware Target: GEPRCF722_BT_HD_V3
  • Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
  • Input Voltage: 3-6S LiPo
  • UART: 5 groups (UART4 fixed for Bluetooth)
  • Power Filter: Integrated LC filter
  • Weight: 8.2g

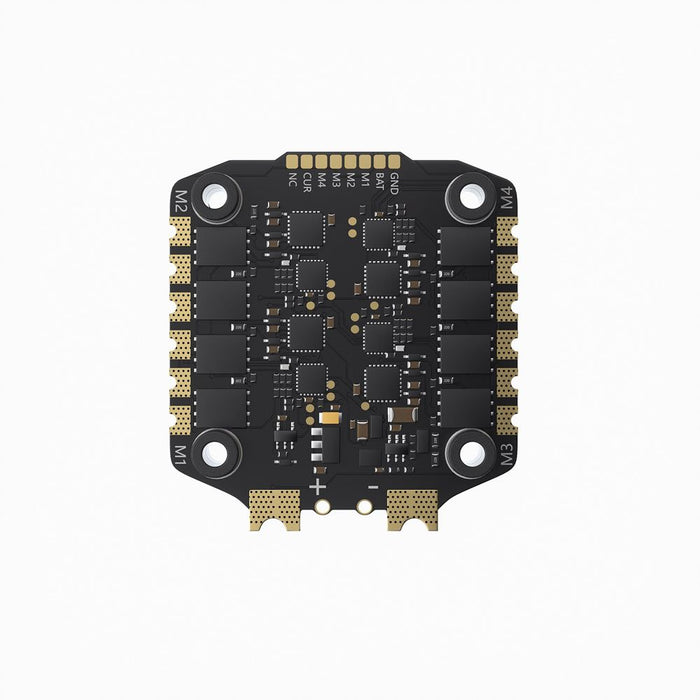

TAKER H60_BLS 60A 4IN1 ESC

  • Input Voltage: 3-6S Lipo
  • Ammeter: Support
  • Continue Current：60A
  • Burst Current: 65A (5 second)
  • Support Protocol: Dshot 150/300/600
  • Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
  • Weight: 14.9g
  • Target: B_X_30

Package Includes:

  • 1 x FC board
  • 1 x ESC board
  • 1 x Capacitor
  • 1 x O3 3-in-1 connection cable
  • 1 x FC adapter cable
  • 1 x sh1.0 4pin silicone cable
  • 1 x Camera connection cable
  • 1 x VTX connection cable
  • 1 x XT90 power cable
  • 4 x M3*30 screws
  • 4 x M3*25 screws
  • 8 x Nylon nuts
  • 12 x Silicone anti-shake pads
