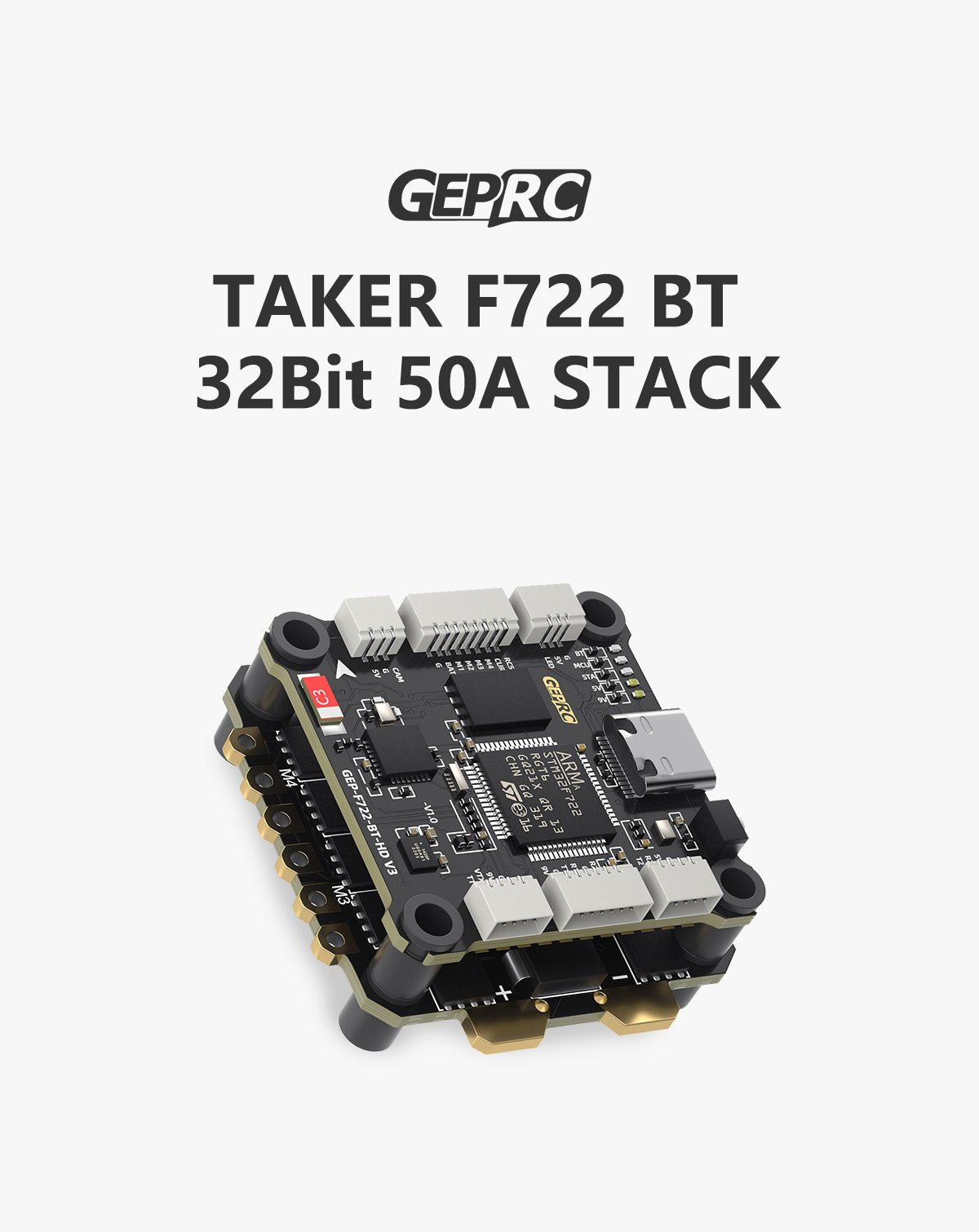

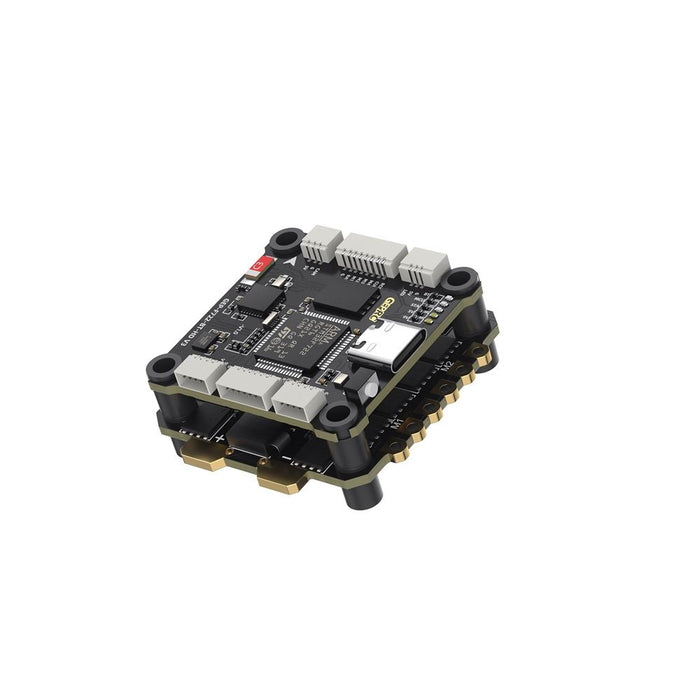

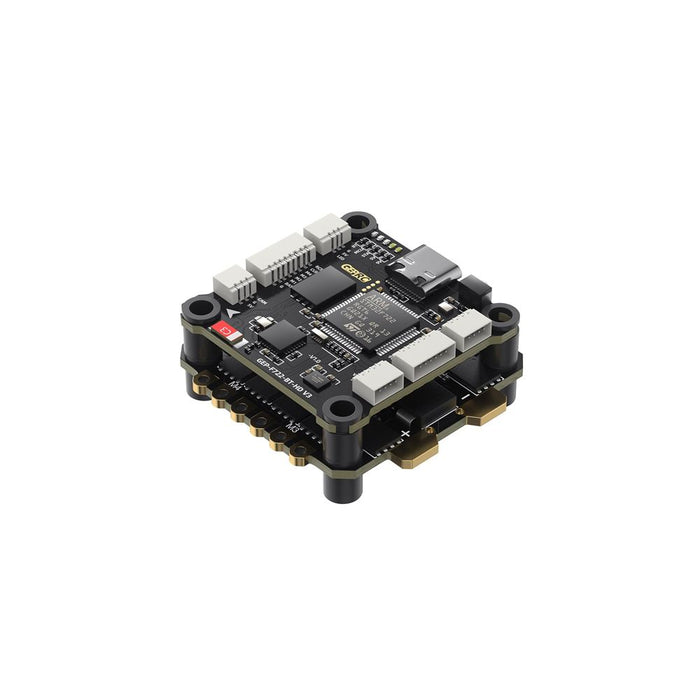

GEPRC TAKER F722 BT 32Bit 50A BL32 3-6S Stack - 30*30mm

GEPRC TAKER F722 BT 32Bit 50A BL32 3-6S Stack - 30*30mm

SKU V8-14040
Availability:
Out of stock
Sold out
$101.99 - $101.99
$101.99
$101.99 - $101.99
$101.99


With the GEPRC TAKER F722 BT 32Bit 50A BL32 3-6S Stack, you'll have access to advanced BL32 technology that enhances performance and increases efficiency. This stack is designed to provide unparalleled power and precision, giving you the ultimate edge in your flights.

Check out all our 30x30mm Stacks and the rest of our GEPRC products.

Features:

  • 1. Use mainstream STM32F722 chip
  • 2. Equipped with the latest 42688-P gyroscope
  • 3. 512M black box storage
  • 4. Support Bluetooth parameter tuning
  • 5. Integrated LC filter
  • 6. Upgrade type-C USB interface
  • 7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
  • 8. Directly plugs into the DJI Air Unit
  • 9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
  • 10. Integrated Barometer
  • 11. 9V@2.5A + 5V@3A dual independent BEC


Specifications:

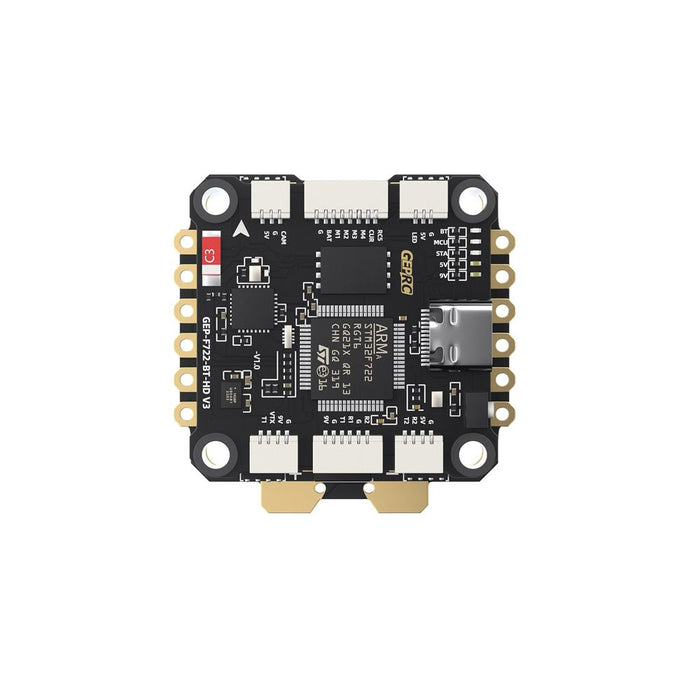

GEP-F722-BT-HD V3 Flight Controller

  • MCU: STM32F722
  • IMU：ICM42688-P(SPI)
  • Air Unit Connection: Directly plugs into the DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A, 9V@2.5A dual BEC
  • Firmware Target: GEPRCF722_BT_HD_V3
  • Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
  • Input Voltage: 3-6S LiPo
  • UART: 5 groups (UART4 fixed for Bluetooth)
  • Power Filter: Integrated LC filter
  • Weight: 8.2g

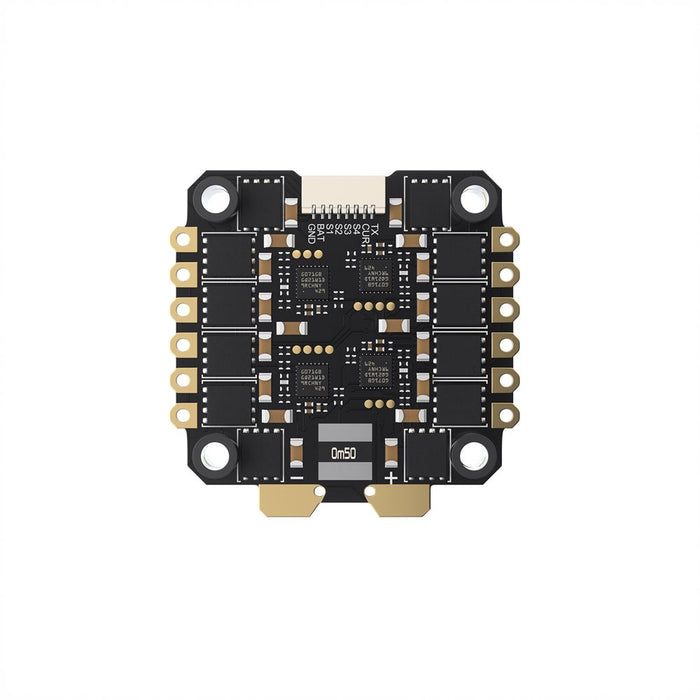

GEP-BL32 50A 96K 4IN1 ESC

  • Model: GEP-BL32 50A 96K 4IN1 ESC
  • Input Voltage: 3-6S Lipo
  • Continue Current：50A
  • Burst Current: 55A (5 second)
  • Galvanometer：Support
  • Telemetry: Support
  • Support Protocol: Dshot 150/300/600
  • Size：42.5×42.1mm，hole30.5×30.5mm
  • Weight：14g
  • Target: ST_G0_05 – 31.92
  • Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability
    (AM32 also supported; customer flashing required.)

Package Includes:

  • 1 x FC board
  • 1 x ESC board
  • 1 x Capacitor
  • 1 x O3 3-in-1 connection cable
  • 1 x FC adapter cable
  • 1 x sh1.0 4pin silicone cable
  • 1 x Camera connection cable
  • 1 x VTX connection cable
  • 1 x XT90 power cable
  • 4 x M3*30 screws
  • 4 x M3*25 screws
  • 8 x Nylon nuts
  • 12 x Silicone anti-shake pads
