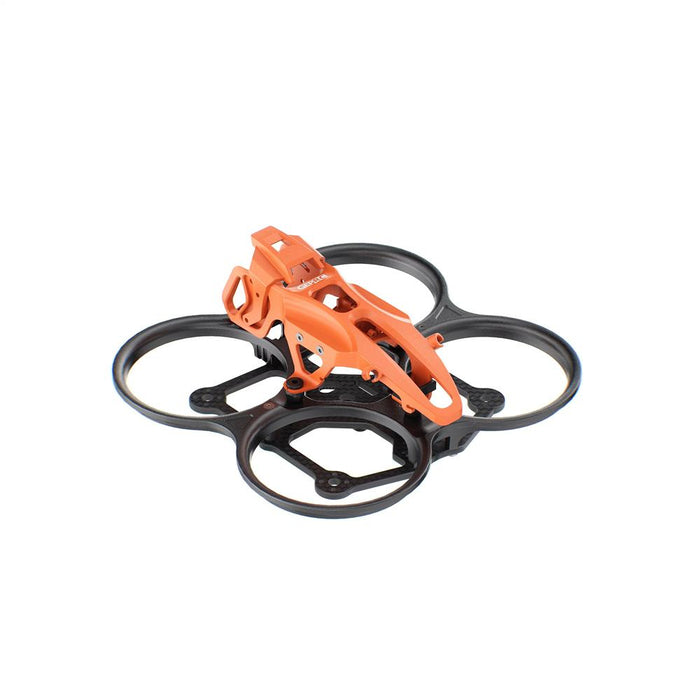

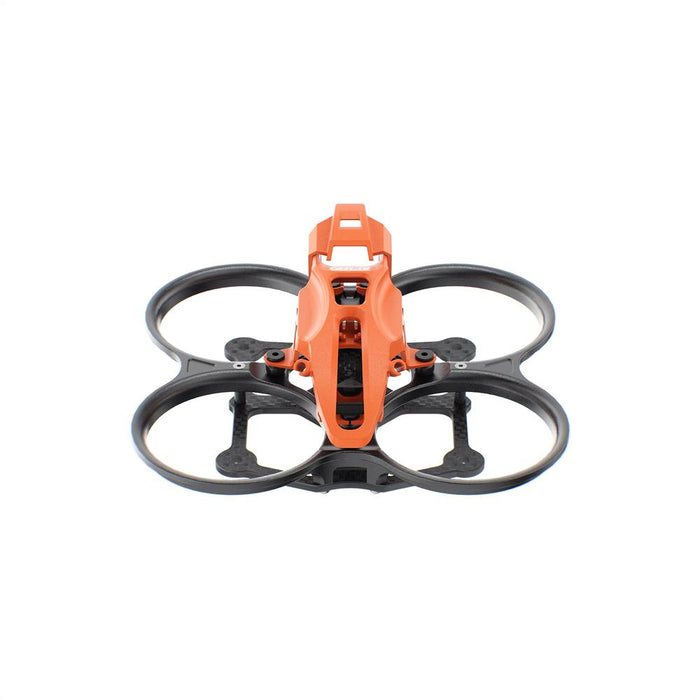

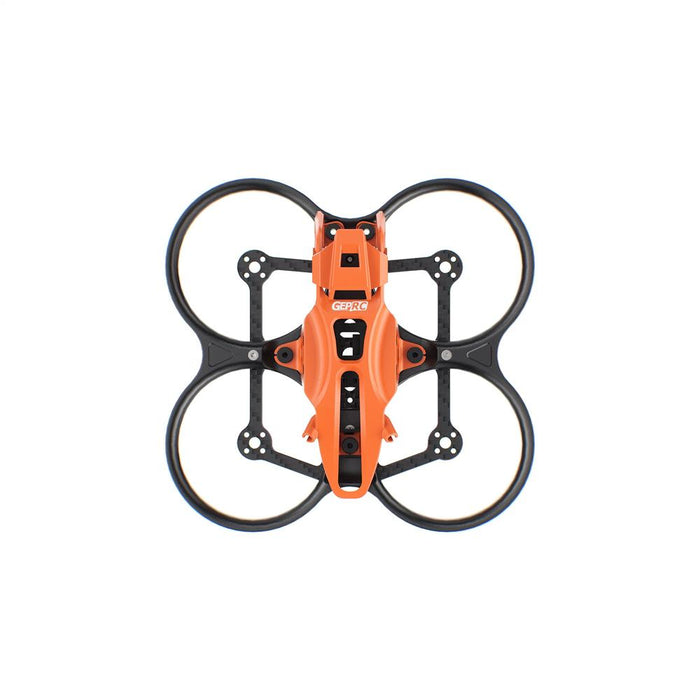

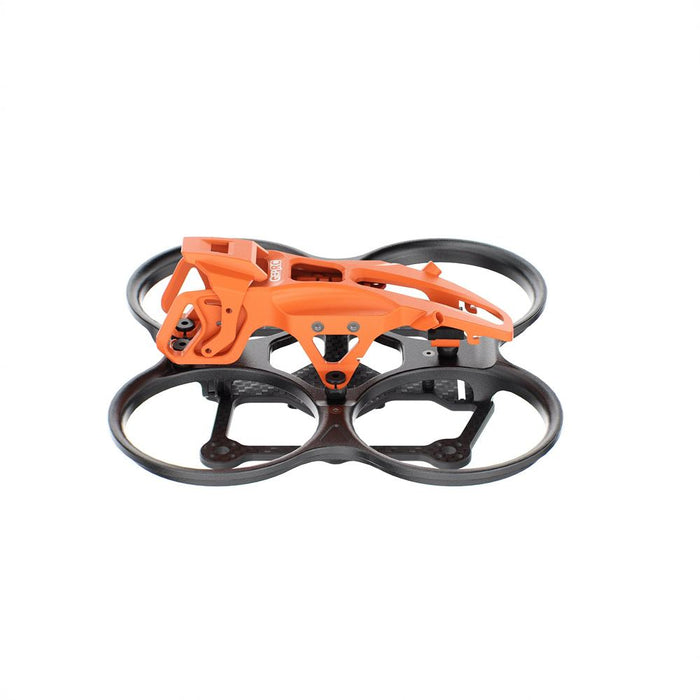

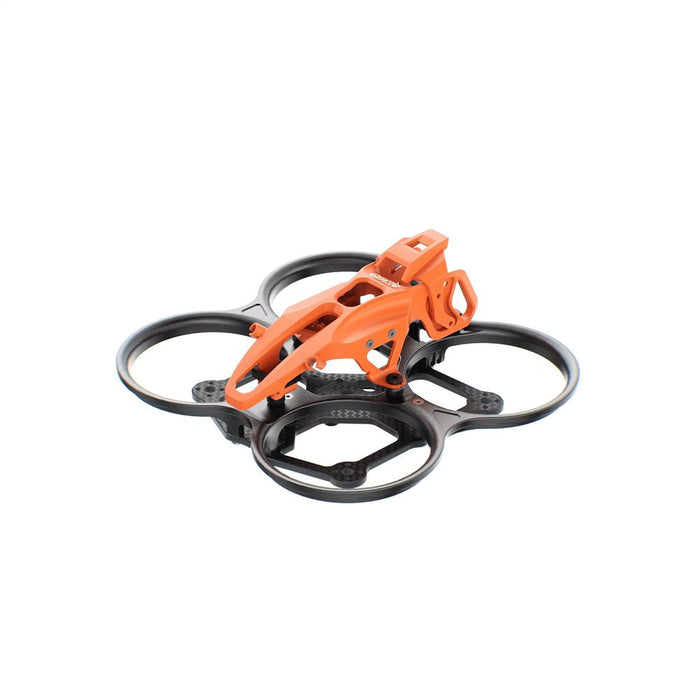

GEPRC DarkStar22 Cinewhoop 2.2" (O4 Pro Compatible) Frame Kit

The GEP-DS22 is a 2.2-inch FPV frame designed specifically for both indoor and outdoor cinematic flying.  Guided by the philosophy of Safety Meets Performance, it seamlessly combines comprehensive protection, strong power, and enduring flight performance within a compact body.  Crafted from high-toughness composite materials with an optimized mechanical structure, it builds a durable prop guard and frame body that effectively absorbs collision impacts.  Meanwhile, the GEP-DS22 offers customizable color options, allowing every pilot to assemble a unique, personalized drone that reflects both technical skill and distinct taste.

Check out all our Cinewhoop Frames and the rest of our GepRC Products!

Features:

• The enhanced nylon composite material provides superior structural strength and crash resistance.
• The five-point floating damping system is a first-ever design that greatly improves vibration damping.
• The multi-color components allow you to mix and match different parts to build your own signature drone.
• The pre-reserved Nano GPS mounting holes enable safer flights with added GPS capability.
• The dedicated canopy for the O4 Pro camera offers reliable protection for every shot.
• The quick-release top plate and prop guard make maintenance simple and efficient.


Specifications:

• Model: GEP-DS22 Frame
• Prop Guard Color: Black
• Camera Cover Color: Orange / Gray
• Canopy Color: Orange / Gray
• Frame Size: 2.2 inch
• Wheelbase: 100 mm
• Main Carbon Plate Thickness: 2.0 mm
• FC Mounting: 25.5 mm x 25.5 mm
• VTX Mounting: 25.5 mm x 25.5 mm
• Motor Mounting: 9 mm x 9 mm
• Camera Mount Width: 20 mm
• Power Connector: XT30U-M
• Propeller Size: 2.2 inch
• Frame Weight: 50.4 ± 5 g

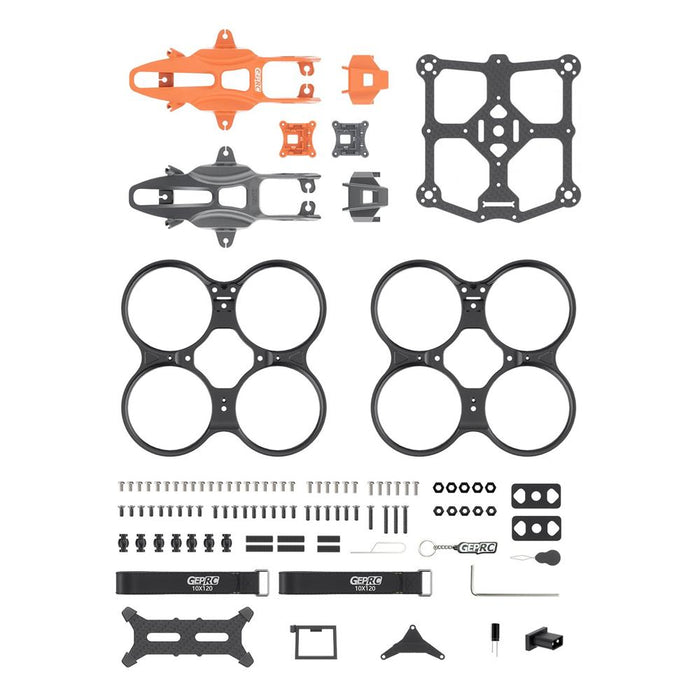

Package Includes:

• 2 × Propeller Guards (Black)
• 1 × Main Carbon Plate
• 2 × Canopies (Orange / Gray)
• 2 × Camera Protective Cover (Orange / Gray)
• 1 × Screw Pack
• 1 × 1.5 mm L-Shaped Hex Wrench
• 2 × Battery Straps
• 1 × Battery Pad
