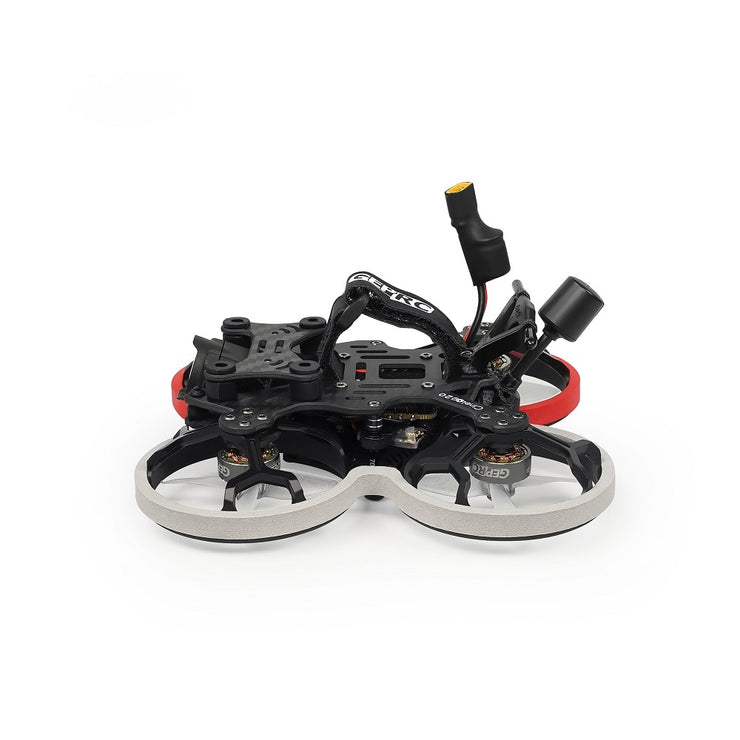

GEPRC CineLog20 HD O3 4S 2" BNF FPV Drone W/ DJI O3 FPV System - Choose Receiver Type

Regular price $479.99 Sale

Availability: Available Unavailable

Product SKU: 56A-11839-PNP

Product Details

For the shooting needs of complex indoor environments, GEPRC has recently released the 2 inch Cinewhoop CineLog20. Available in Link Wasp, O3 AIR Unit, Walksnail, and Analog four mainstream video transmission system on the market.

The CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 AIR Unit shooting, which can achieve excellent anti-shake effect. The O3 AIR Unit version can shoot 4K 120fps video without mounting any camera. It is lighter in weight and has a longer battery life.

It adopts GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. Equipped with Emax 4-blade propellers, reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked GoPro 8/9/10/11 cameras, Action2, insta360 Go2, Peanut and other light and small action cameras.

Check out our other Digital BNF/PNP/RTFs and the rest of our GEPRC products!

Features

  • Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.
  • Provide mainstream Link Wasp, O3 AIR Unit, and Walksnail HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.
  • 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
  • SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
  • Continuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GoPro mounted.
  • The GEPRC Team’s splendid tuning and the overall flight feel are delicate and flexible.

Specifications

  • Model: CineLog20 HD O3
  • Frame: GEP-CL20
  • Wheelbase: 100mm
  • Gimbal plate: 2.0mm
  • Top plate: 2.5mm
  • Bottom plate: 1.5mm
  • FC system: GEP-F411-35A AIO
  • MCU: STM32F411CEU6
  • Gyro: ICM 42688-P
  • OSD: Betaflight OSD w/AT7456E chip
  • ESC: 8Bit 35A
  • VTX: O3 AIR Unit
  • Camera: O3 Camera
  • Antenna: 5.8G&2.4G
  • Motor: GR1303.5 5500KV
  • Propeller: EMAX Avan Micro 2×2.4×4
  • CineLog20 HD O3 TBSNanoRX weight: 140g
  • Receiver: PNP(built-in DJI receiver), ELRS2.4G, TBS Nano RX / RXSR
  • Recommended battery: LiHv 4S 450mah-660mah
  • Flight time:4-6min

Includes

  • 1 x GEPRC CineLog20 HD O3 4S 2" BNF FPV Drone W/ DJI O3 FPV System - Chosen Receiver Type
  • 2 x 2 inch propellers (pairs)
  • 1 x Naked GoPro Base
  • 2 x M15*150mm battery strap
  • 2 x Battery Silicone Pads
  • 2 x EVA landing Pads
  • 1 x Set of screws
  • 1 x L-shaped screwdriver (1.5mm)
  • 1 x Antenna fixed tube
  • 1 x 4S Naked GoPro power cable (with balanced terminal head)
  • 2 x EVA damping rings of guards
  • 1 x TBS Antenna mount (Vertical Type)
  • 1 x TBS Antenna mount (Horizontal Type)
  • 1 x TBS Antenna printed parts
  • Screw package includes:
    • 3 x M2*12mm cup head screws
    • 2 x M2*5mm round head screws
    • 1 x M2*8mm round head screw with pad
    • 3 x M2*7mm round head screws
    • 2 x M2*8mm round head screws
    • 2 x M2 iron nuts
    • 1 x self-clinching nut
