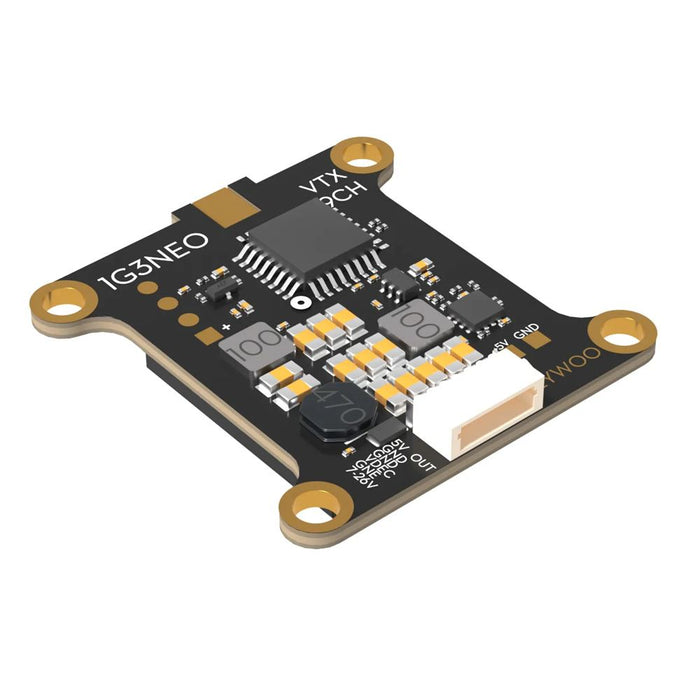

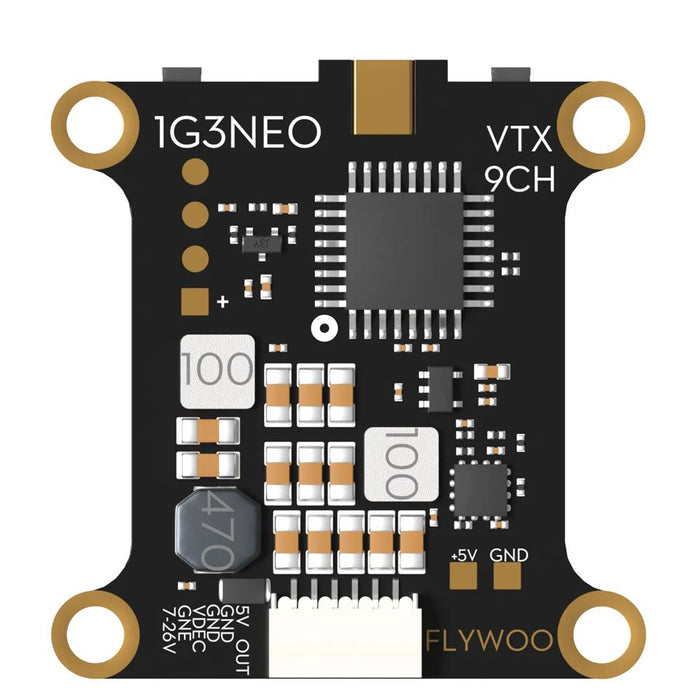

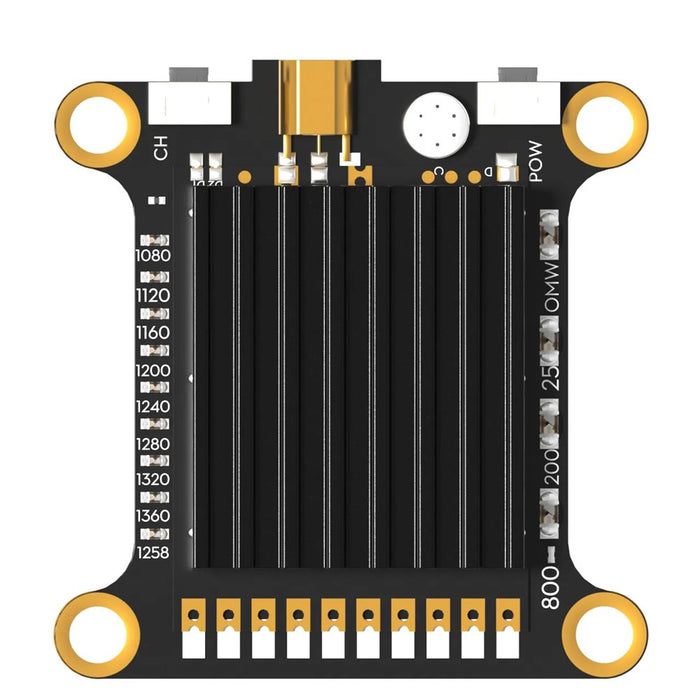

Flywoo 1.2GHz/1.3GHz 2W Video transmitter VTX-1G3 9CH

Flywoo 1.2GHz/1.3GHz 2W Video transmitter VTX-1G3 9CH

SKU 13995
Availability:
Out of stock
Sold out
$59.99 - $59.99
$59.99
$59.99 - $59.99
$59.99


Improve your video transmission range and stability with Flywoo 1.2GHz/1.3GHz 2W Video transmitter VTX-1G3 9CH. Experience a 2W power output for better visuals and a 9-channel frequency range for maximum flexibility. Flywoo knows how to deliver reliable video performance for your needs.

Check out our Analog VTX selection and the rest of our Flywoo collection!

Specifications:

  • 8CH (1120,1160,1200,1240,1280,1320,1360,1258MHz)
  • RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 2000mw(3)
  • Button control and LED indicators
  • Built-in AGC microphone
  • 7-26V DC IN (2-6S LiPo)
  • Power Consumption: 280mA(2000mw) @12V IN
  • Video format: NTSC or PAL
  • Audio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHz
  • RF Connector: MMCX
  • Weight: 12.2g
  • Size: board 35*35mm
Settings
  • Press button-power(red led) to select RF output levels, 0 = 0.1mw pitmode, 1=25mw. 2=200mw, 3=2000mw
  • Press button-CH(blue led) frequency setting 1-8CH

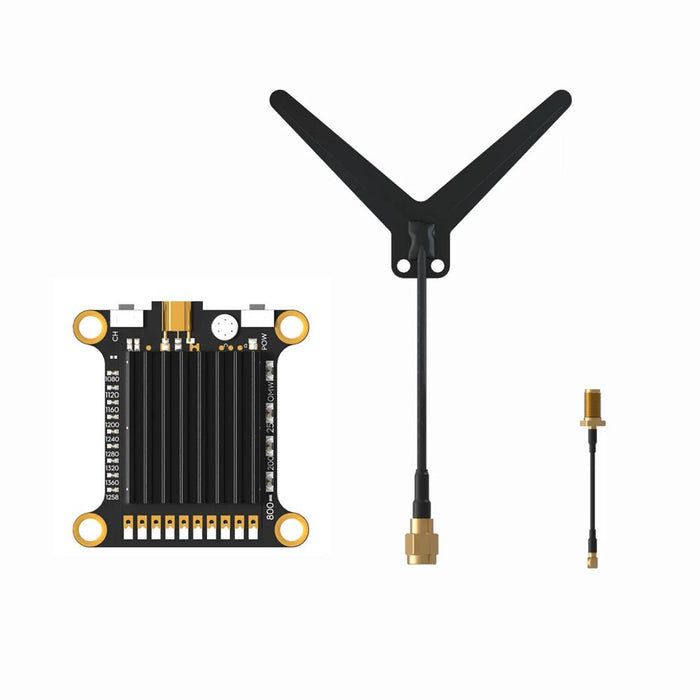

Package includes:

  • 1 x 1.2/1.3G Video transmitter VTX-1G3 8CH
  • 1 x Dipole antenna_SMA, center freq 1240MHz
  • 1 x MMCX to SMA cable

Laws and requirements regarding transmission of radio waves vary greatly across the world. In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a HAM amateur radio license, at the very least. It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location. By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
