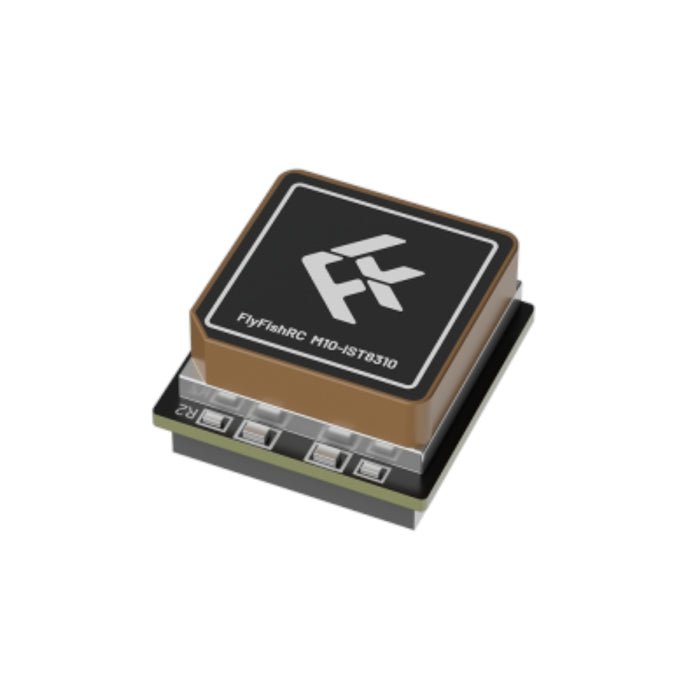

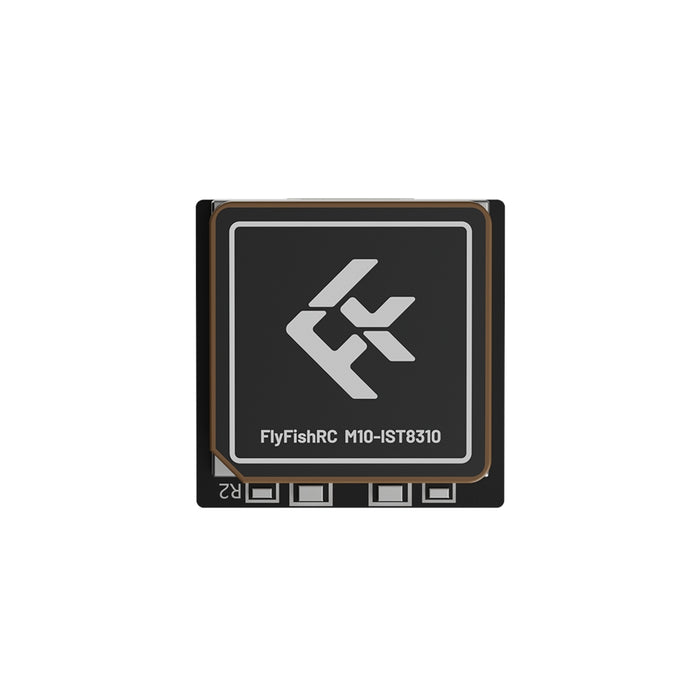

FlyFishRC M10-IST8310 GPS and Compass Module

FlyFishRC M10-IST8310 GPS and Compass Module

SKU A2-14577
Availability:
in stock
$40.99 - $40.99
$40.99
$40.99 - $40.99
$40.99



The FlyfishRC M10-IST8310 is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in  M10-IST8310 high-precision magnetometer provides precise azimuth pointing,and the UBLOX10 generation chip allows subtlealtitude changes to be skipped for more stability.Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.

Check out our all our Flight Controller Accessories and the rest of our Flyfish products!

Features:

  • 72 channel 10 Hz Refresh rate
  • Built-in TCXO crystal and farad capacitor for faster hot start
  • High sensitivity 20x20mm GPS patch antenna
  • SH1.0-6Pin terminal design, no soldering required.

Specifications

  • GPS Chip:u-blox M10050
  • Input Voltage:3.3V-5V
  • Receiving Frequencies:GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
  • Operating Mode:GPS+BDS+GALILEO+QZSS+SBAS combined positioning
  • Receiving Channels:72ch
  • Maximum Navigation Satellites:Up to 32
  • Output Protocol:UART(ublox),12C(Mag)
  • Baud Rate:115200bps
  • Update Rate:10Hz
  • Velocity Accuracy:0.05m/s
  • Horizontal Position Accuracy:2D ACC 1.5m (open sky)
  • Time Accuracy:30 ns
  • Receiving Sensitivity:Tracking-162dBm,Acquisition-160dBm
  • Dynamic Characteristics:Max Altitude:50000m,Max Speed:500m/s
  • Max Acceleration:4G

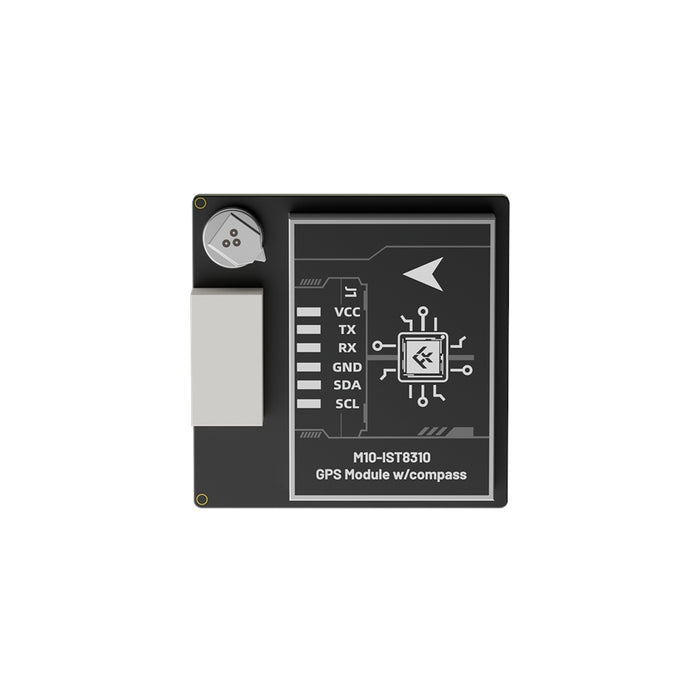

  • GPS pin definition:RX/TX UART
  • Compass pin definition:SDA/SCL
  • GPS patch antenna size:18x18mm

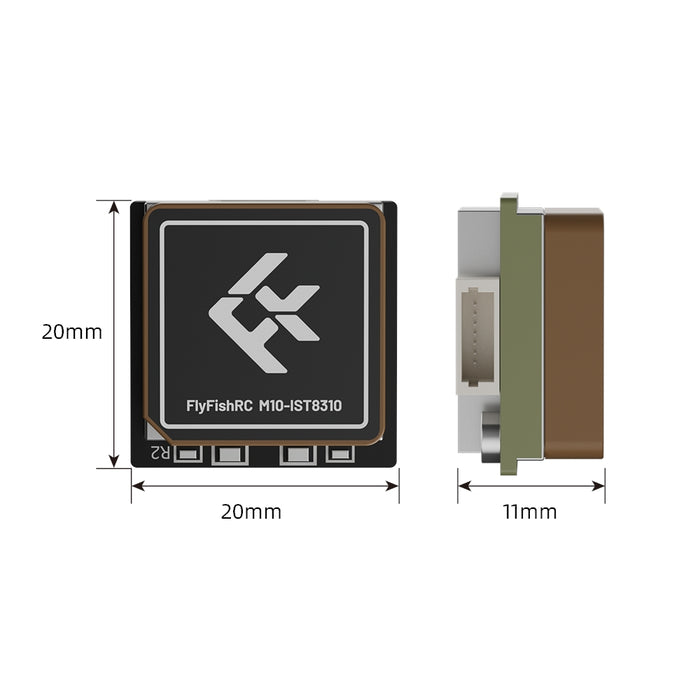

  • Dimensions:20x20x11mm
  • Weight: 9g

      Package Includes:

      • 1 x FlyFishRC M10-IST8310 GPS Module
      • 1 x GPS Manual
