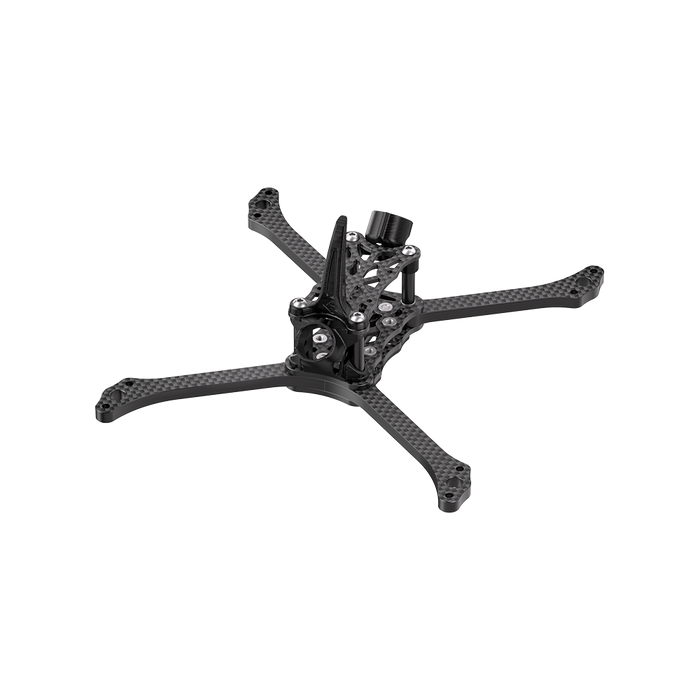

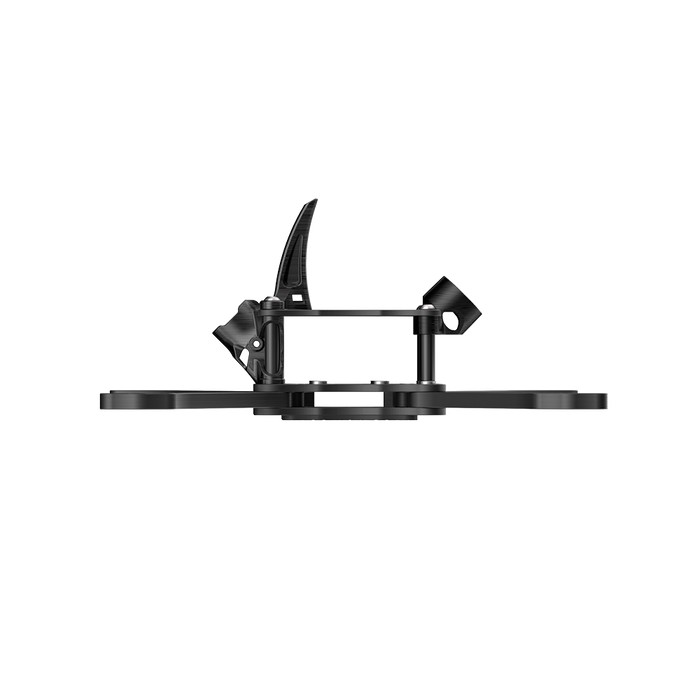

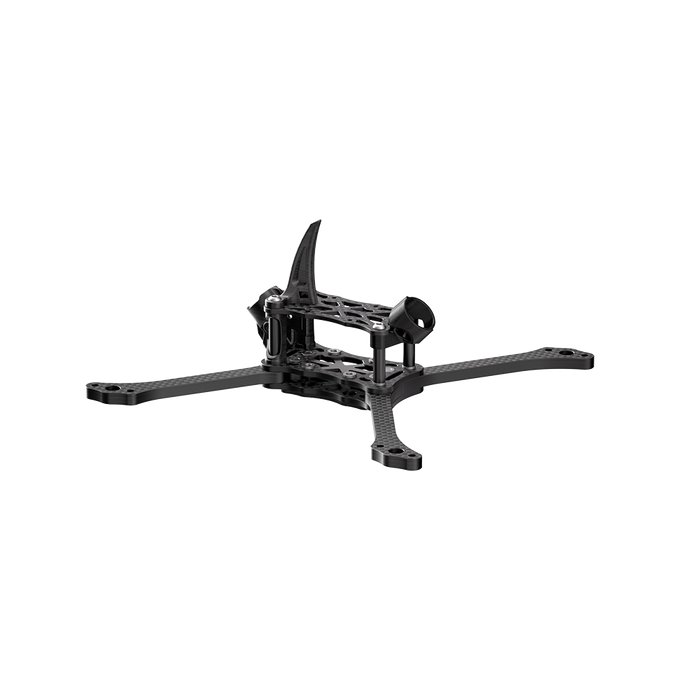

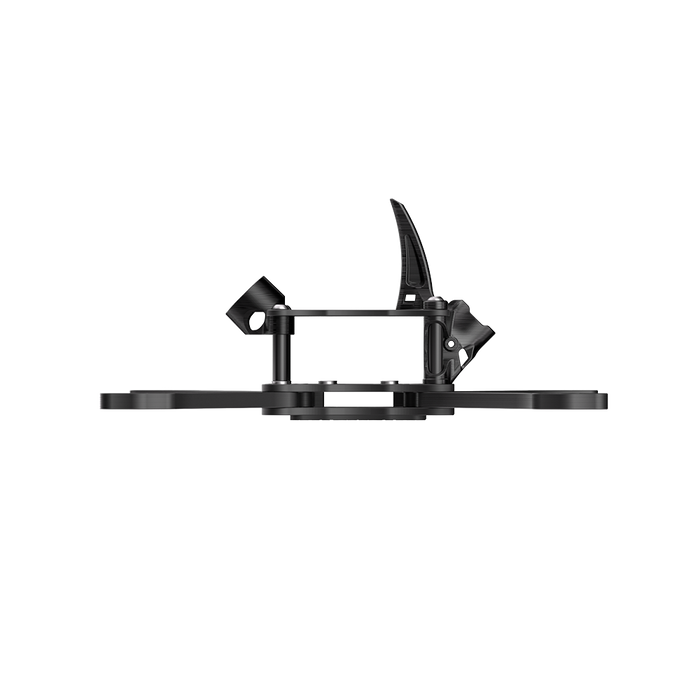

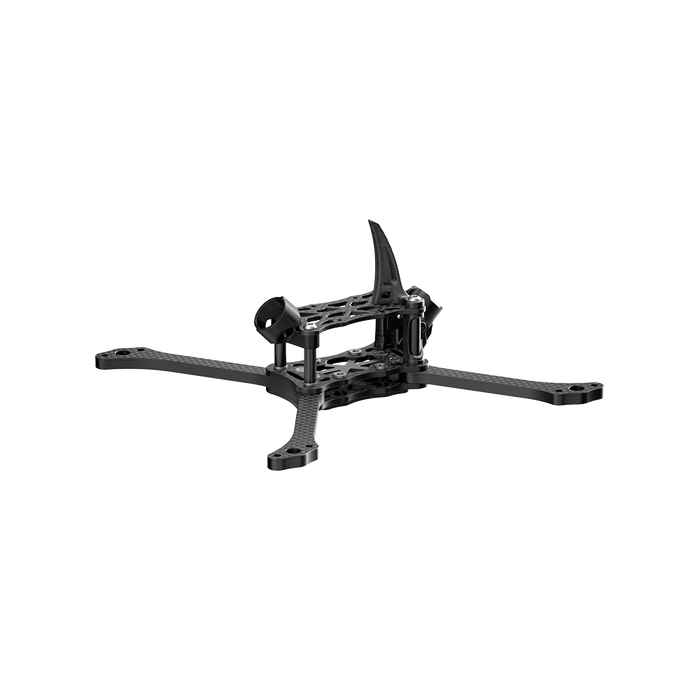

FlyfishRC Hunter 5 FPV Racing T700 Frame Kit for HDzero Nano 90

The FlyFishrc Hunter 5inch FPV Racing T700 Frame Kit for HDzero Nano 90 is an agile, high-performance racing frame engineered with premium T700 carbon fiber to deliver exceptional structural rigidity and impact resistance during high-speed FPV racing.

Also check out all the 5 Inch Frames Collection as well as the rest of our FlyfishRC Products!

Features:

• Precision-crafted from high-strength T700 carbon fiber sheets for optimal lightweight durability and impact dissipation.

• Includes custom TPU camera mounts compatible with mainstream cameras preset with 45°, 51°, and 53° tilt angles.

• Rapid arm replacement and locking system featuring high-precision shoulder screws to mitigate high-frequency resonance and reduce maintenance downtime.

• Minimalist modular assembly designed to streamline quick repairs on the racing field.

Specifications:

• Wheelbase: 190mm

• Frame Dimensions: 158 x 146 x 35.5mm

• Propeller Size Compatibility: Up to 5.1 inch

• Arm Thickness: 5mm

• Top Plate Thickness: 2mm

• Mid Plate Thickness: 2.5mm

• Bottom Plate Thickness: 2.5mm

• Weight: 51g (excluding TPU prints)

• FPV Camera Spacing: 14mm

• Motor Mounting Pattern: 16 x 16mm (phi 3mm)

• Stack Mounting Pattern: 20 x 20mm (M3)

• Stack Mounting Height: 22mm

Package Includes:

• 1 x Hunter 5 FPV Racing T700 Frame Kit

• 2 x Shark Fins (carry handle and turtle mode)

• 3 x TPU Camera Mounts (45°, 51°, 53°)

• 1 x TPU Antenna Mount
