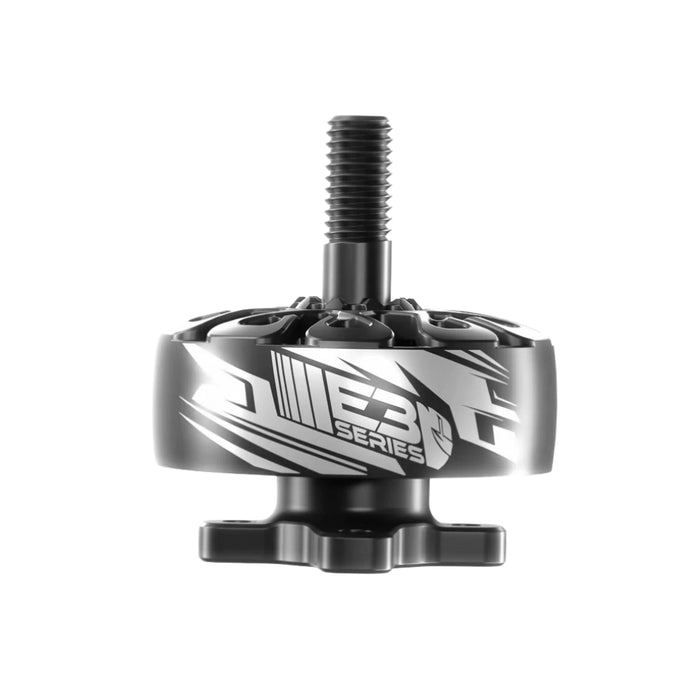

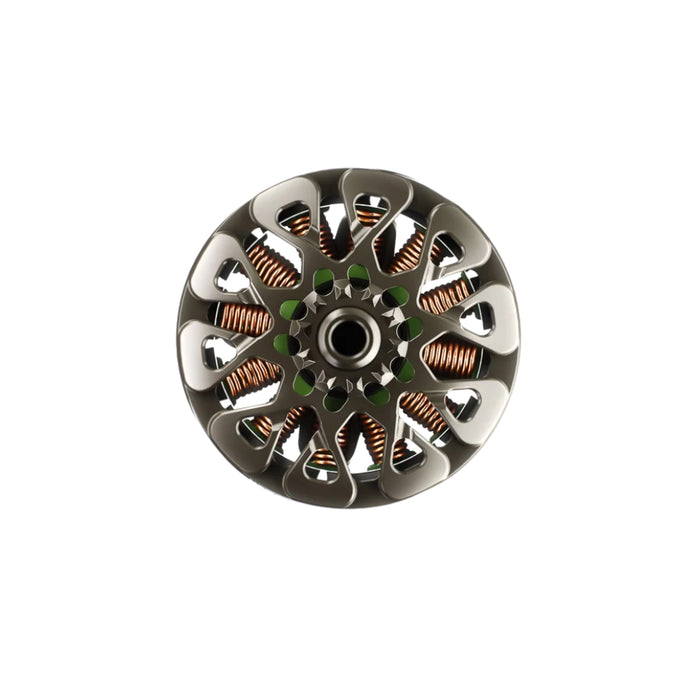

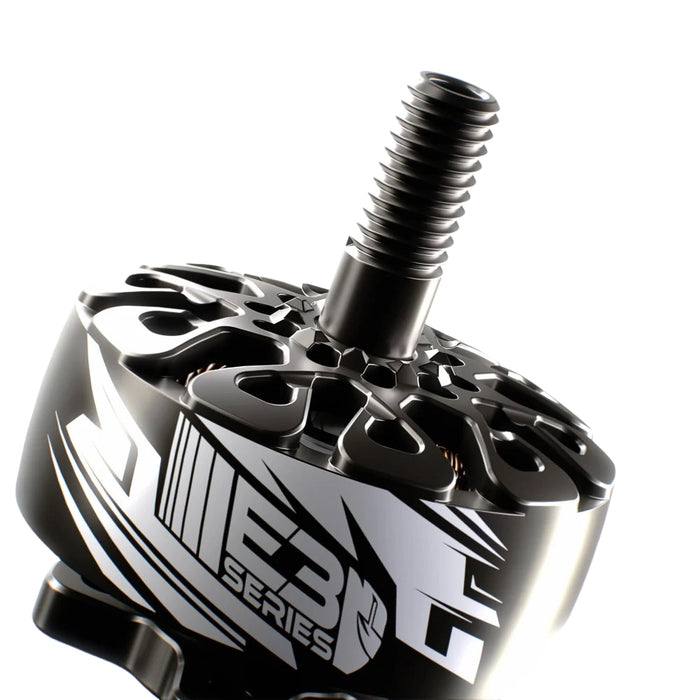

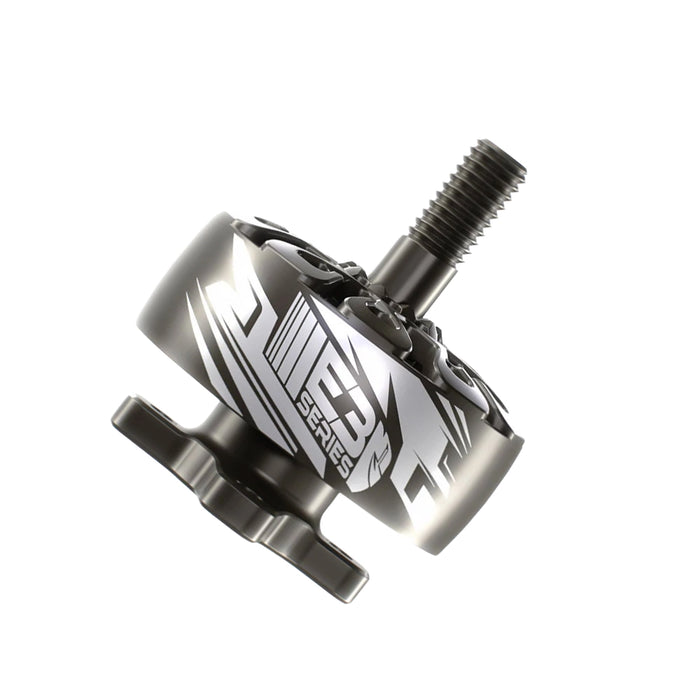

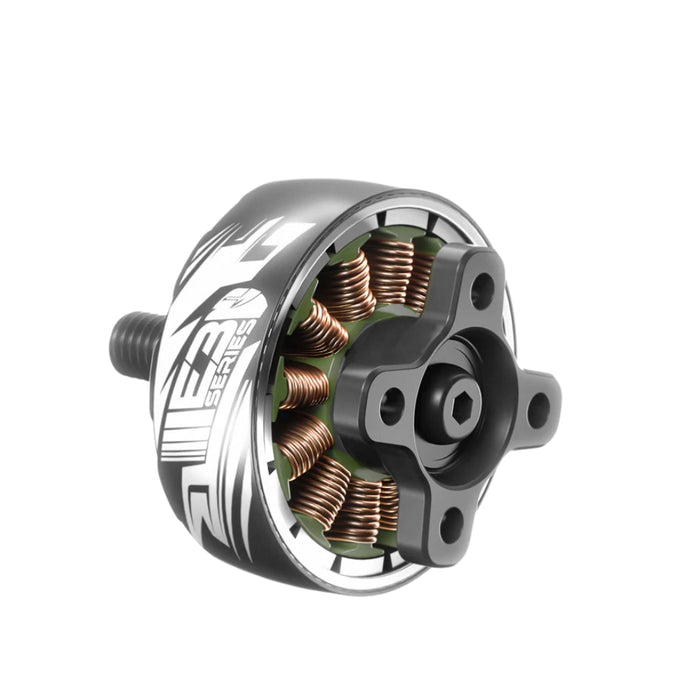

EMAX E3 Series 2306 Motor available in 1700KV, 1900KV, and 2400KV — delivers high-performance power with uncompromised efficiency. Designed with a robust 12N14P framework, a durable 4mm bearing shaft, and optimized for 3-6S (1700KV/1900KV) or 3-4S (2400KV) setups, these motors offer the perfect balance of thrust and control. Whether you're chasing maximum power with 1160W (1900KV) or fine-tuning your build for smooth, responsive flights, the E3 Series ensures reliability and precision for every pilot.

Checkout all our 2306 and 2306.5 motors and the rest of our Emax Products!

Features:

• Available in 1700KV, 1900KV, and 2400KV options
• Robust 12N14P Framework
• High-Performance Power
• Precision-Engineered
• 4mm Bearing Shaft
• Responsive Flights


Specifications:

• KV1700

  • Weight: 29.4g (W/O Silicone Wire)
  • Motor Dimensions: 28.9*31.8mm
  • Internal Resistance: 79mΩ
  • Idle Current (10V): 1.1A
  • Lead: 20#AWG 120mm
  • Peak Current (65): 36A
  • Max Power (65): 970W
  • Framework: 12N14P
  • Bearing Shaft: 4mm
  • No. of Cells: 3-6S
  • Propeller: 5"-5.5"



• KV1900

  • Weight: 29.4g (W/O Silicone Wire)
  • Motor Dimensions: 28.9*31.8mm
  • Internal Resistance: 66mΩ
  • Max Power (65): 1160W
  • Idle Current (10V): 1.3A
  • Lead: 20#AWG 120mm
  • Peak Current (65): 46A
  • Framework: 12N14P
  • Bearing Shaft: 4mm
  • No. of Cells: 3-6S
  • Propeller: 5"



• KV2400

  • Weight: 29.5g (W/O Silicone Wire)
  • Motor Dimensions: 28.9*31.8mm
  • Internal Resistance: 47mΩ
  • Idle Current (10V): 1.7A
  • Lead: 20#AWG 120mm
  • Max Power (4S): 720W
  • Peak Current (45): 43A
  • Lead: 20#AWG 120mm
  • Framework: 12N14P
  • Bearing Shaft: 4mm
  • No. of Cells: 3-4S
  • Propeller: 5"-5.5"

Package Includes:

• 1 x EMAX E3 Series 2306 Motor (ChoseN KV)
• 1 x Hardware Kit
