Product Details

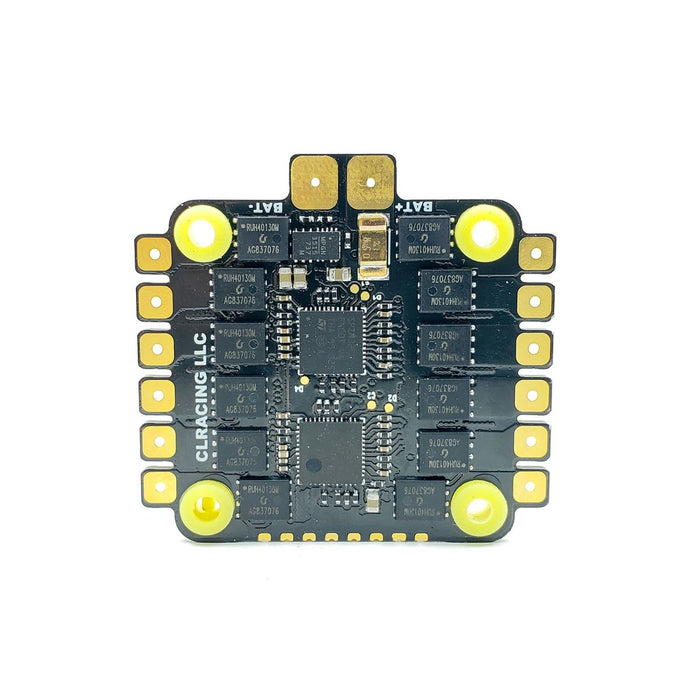

Replacement ESC for the CLRACING F7/4in1 stack combo.
Can also be used with other flight controllers.
If used with other flight controller please make sure you have the correct harness pinout to avoid damging your flight controller.
This DIY kit is very handy for making your own harness.
Main ESC Features
Can also be used with other flight controllers.
If used with other flight controller please make sure you have the correct harness pinout to avoid damging your flight controller.
This DIY kit is very handy for making your own harness.
Main ESC Features
- LIPO: 2-6S LIPO
- Weight:13.5g
- Firmware: Blheli_32
- Size : 43.5mm x 46.5mm
- Mounting : 30.5mm x 30.5mm / ID 4mm
- Con.Current:45A, Peak 55A @10s
- Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW
- Connection: PNP with CLRACING F7 FC, with JST1.0 8 pin connector or soldering pads
- Current scale: 250
- Accessory:
- 10 x M3*5mm nylon thread through spacers
- 5 x M3*25mm nylon screws
- 5 x M3 nylon nuts
- 5 x Yellow Grummits
- 2 x 14 AWG 80mm Silicone wires
- 1 x connection cable
- 1 x Amass XT60
- 1 x Rubycon 1000uf 35v ZLH capacitor
