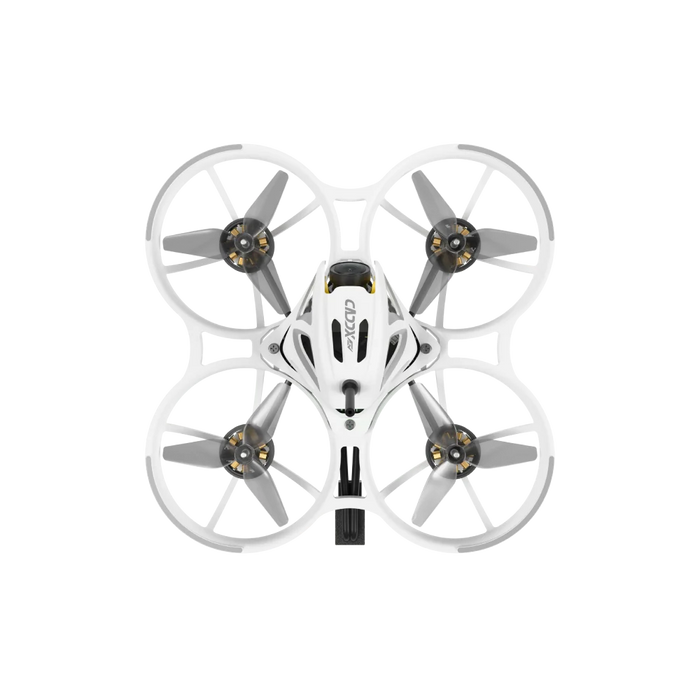

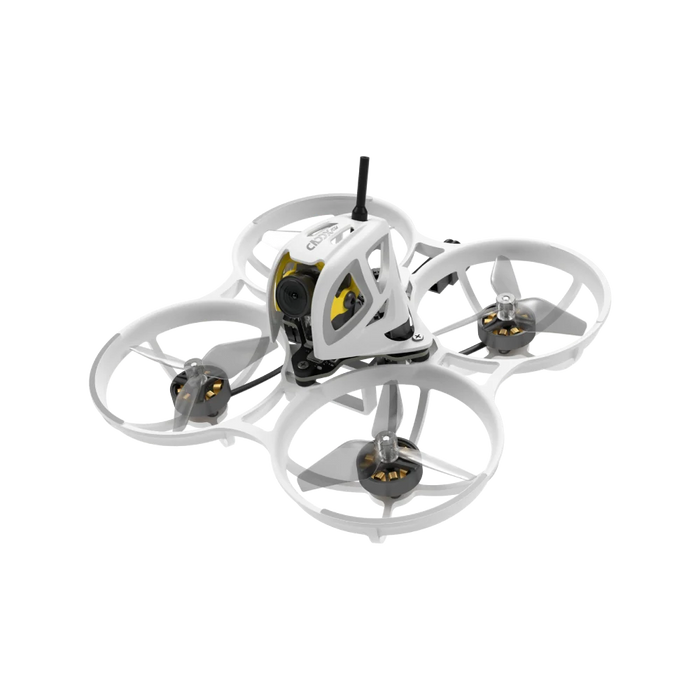

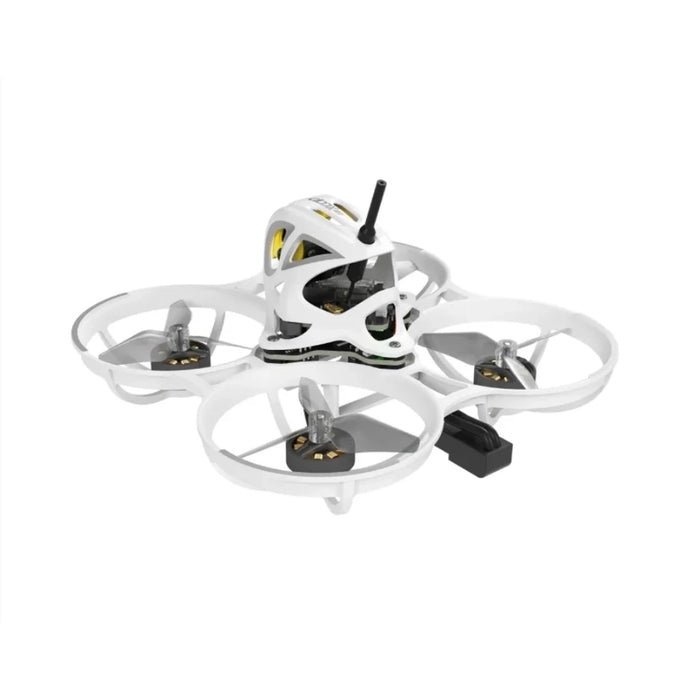

Caddx Curve Micro 16 HD 1S 75mm ELRS 2.4G Brushless Whoop Quadcopter - White

Discover the Caddx Curve Micro 16 HD Tiny Whoop in White, an agile and ultra-lightweight micro FPV quadcopter engineered for exceptional indoor practice, backyard freestyle, and tight technical lines. Featuring high-definition digital video transmission, high-efficiency brushless power, and smooth, predictable handling, it offers an immersive FPV experience right out of the box.

Check out all our Micro BNFs and our collection of CaddxFPV Products!

Features:

• Lightweight and Durable Design: The 48g one-piece injection-molded frame combines everyday durability with agile handling for indoor practice, backyard freestyle, and tight FPV lines.

• Immersive HD FPV Video: Up to 1080p/120fps video, 35ms latency, 500mW digital video transmission, and a 147° ultra-wide field of view deliver a smooth, immersive FPV experience. Live audio transmission supports receiver-side video and audio recording in 60fps modes.

• Responsive Brushless Power: The 1102 24000KV brushless motors provide ample power and quick throttle response for fast climbs, sharp direction changes, and freestyle flying.

• Smooth and Stable Control: The AXON 1S AIO flight controller and high-precision ICM gyro provide smooth, predictable handling through tight spaces and technical FPV lines.

• Flexible Battery and Charging: The standard A30 connector supports common 1S 580mAh and 680mAh LiPo batteries for approximately 5–7 minutes of flight time. Batteries are sold separately. The included six-port USB-C fast charger supports DC power, power banks, and vehicle power sources.

• Expandable VTX Platform: Replace the original VTX with an Ascent Lite or Walksnail Avatar 1S module, or choose from compatible third-party options. The Type-C port supports quick firmware updates through CADDX PC Tool.

Specifications:

• Name: Curve Micro 16

• VTX: Ascent Lite+

• FC: AXON 1S AIO V2.0

• ESC: 1S 12A

• Receiver: ELRS V3.5.0

• Motor: 1102

• Propeller: HQ 40mm 1.6X1X3

• Wheelbase: 75mm

• PWR Port: A30

• Flight Time: 6min

• Processor: STM32G473

• Gyroscope: ICM42688 / BMI270

• Blackbox: 16M

• BEC: 5V3A

• FC Voltage: 1S

• FC Firmware: CADDXG473-2026.6

• ESC Current: 12A (Continuous); 18A (Peak)

• ESC Firmware: A-X-5

• Tune Port: SH1.0-4P

• Motor Port: JST1.25-3P

• Charger: 6-Channel Charger

• FC Protocol: USB PD/BC1.2

• In Voltage: 5V-12V

• In Port: Type-C USB

• Bat Type: LiHV 4.35V

• Channel: 6

• Max Input Power: 30W

• Max Charging Curr: 1A

• Dimension: 101.5 x 30 x 14.5m

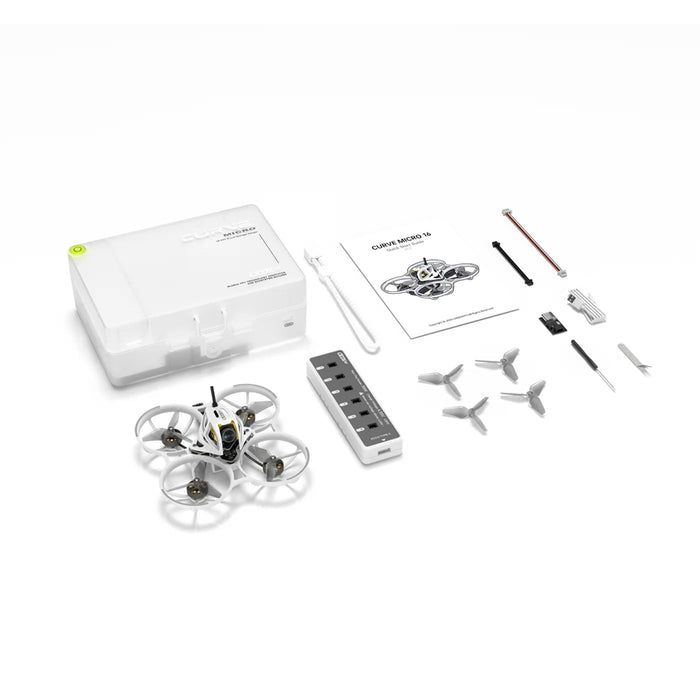

Package Includes:

• 1 x Curve Micro 16 HD Tiny Whoop Quadcopter

• 1 x Propeller Set

• 1 x 1S AIO V2.0 Flight Controller

• 1 x 6-Channel Charger

• 1 x 4-Pin Cable

• 1 x 6-Pin to 4-Pin Cable

• 1 x Propeller Removal Tool

• 1 x USB Charging Cable

• 1 x Storage Case

• 1 x Quick Start Guide
